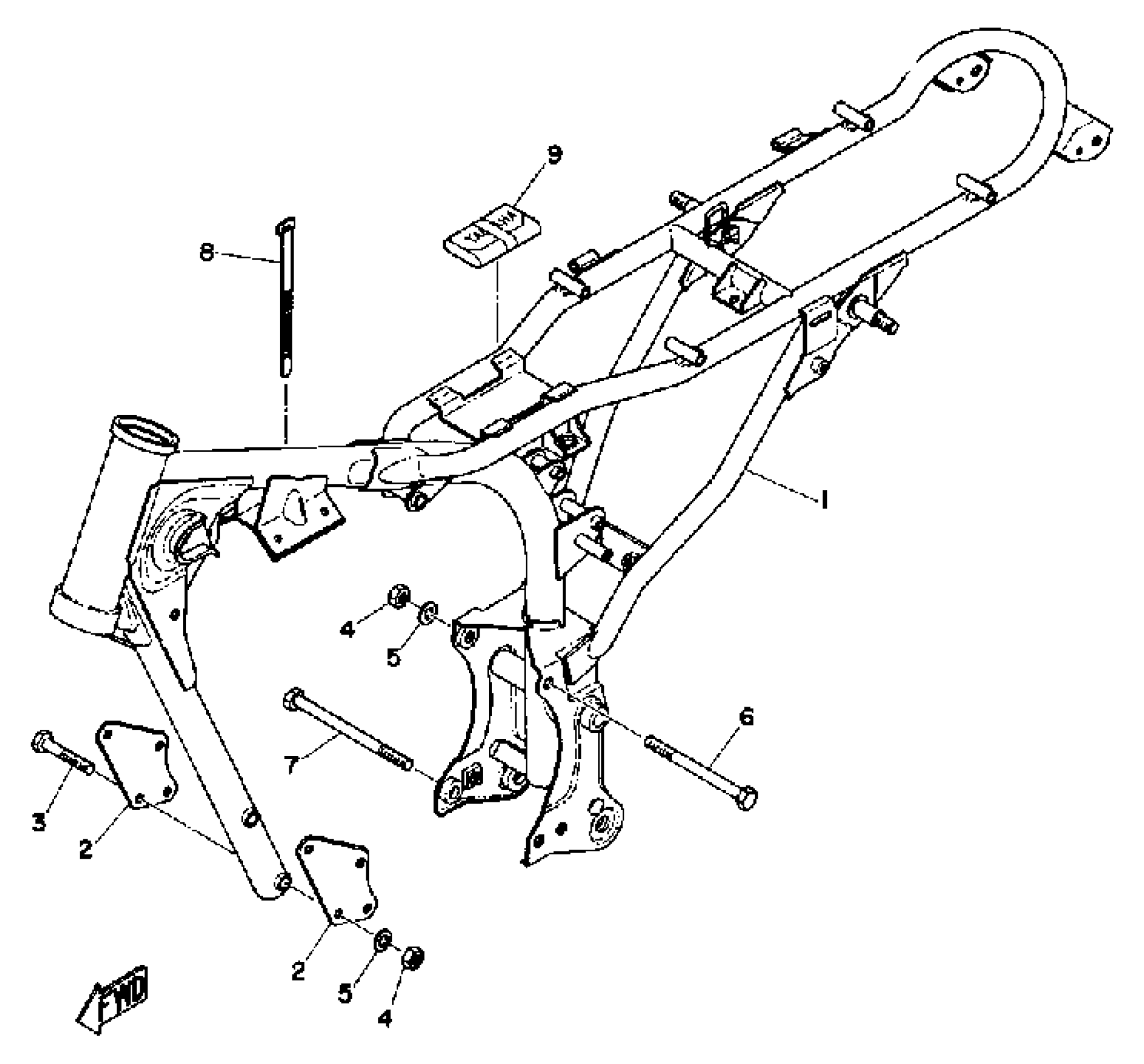

Yamaha LS2 (LS2) 1972 FRAME Diagram

#

Description
Price

1

FRAME

(326-21110-00-33)

Unavailable

2

STAY, ENGINE 2

(307-21315-00-33)

Unavailable

3

BOLT, HEXAGON

97013-08050-00

Unavailable

4

NUT(6L2)

95333-08600-00

$2.98

5

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

6

BOLT, HEXAGON

97027-08100-00

$4.48

7

BOLT, HEXAGON (582)

90101-08286-00

$4.82

8

BAND, SWITCH CORD

437-83936-11-00

$3.34

9

TOOL KIT

1E7-W2810-00-00

Unavailable

10

HANDLE, STANDING

(307-21165-00-33)

Unavailable
