1972 Yamaha LS2 (LS2) Speedometer & Tachometer Diagram

← All diagrams

Find the part on the Speedometer & Tachometer diagram for your 1972 Yamaha LS2 (LS2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

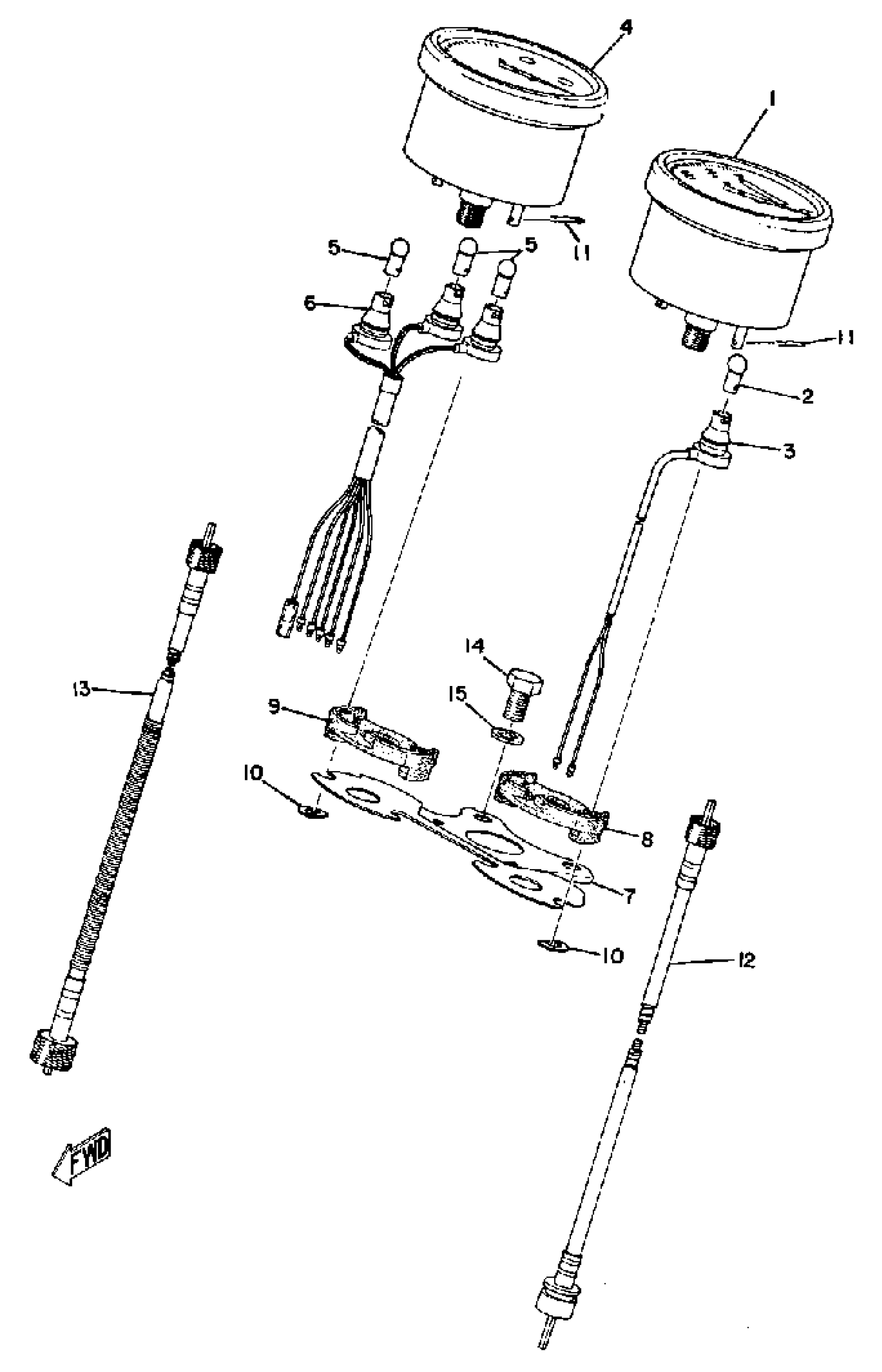

1972 Yamaha LS2 (LS2) Speedometer & Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

(327-83510-40-00)

1
Out of stock

2

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

3

SOCKET, METER

(235-83536-21-00)

1
Out of stock

4

TACHOMETER ASSEMBLY

(307-83540-00-00)

1
Out of stock

5

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

6

SOCKET CORD ASSEMBLY

(252-83520-01-00)

1
Out of stock

7

BRACKET, METER

(307-83519-00-33)

1
Out of stock

8

DAMPER

214-83523-00-00

1
Out of stock

9

DAMPER

237-83523-00-00

1

$8.70

In stock

10

WASHER 214835240000

90209-05029-00

—

$6.86

In stock

11

CLIP (156-83525-00)

90468-10050-00

1

$2.31

In stock

12

SPEEDOMETER CABLE ASSY

336-83550-02-00

1
Out of stock

13

TACHOMETER CABLE

307-83560-00-00

1
Out of stock

14

BOLT, HEXAGON

97013-08016-00

1

$1.32

In stock

15

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock
