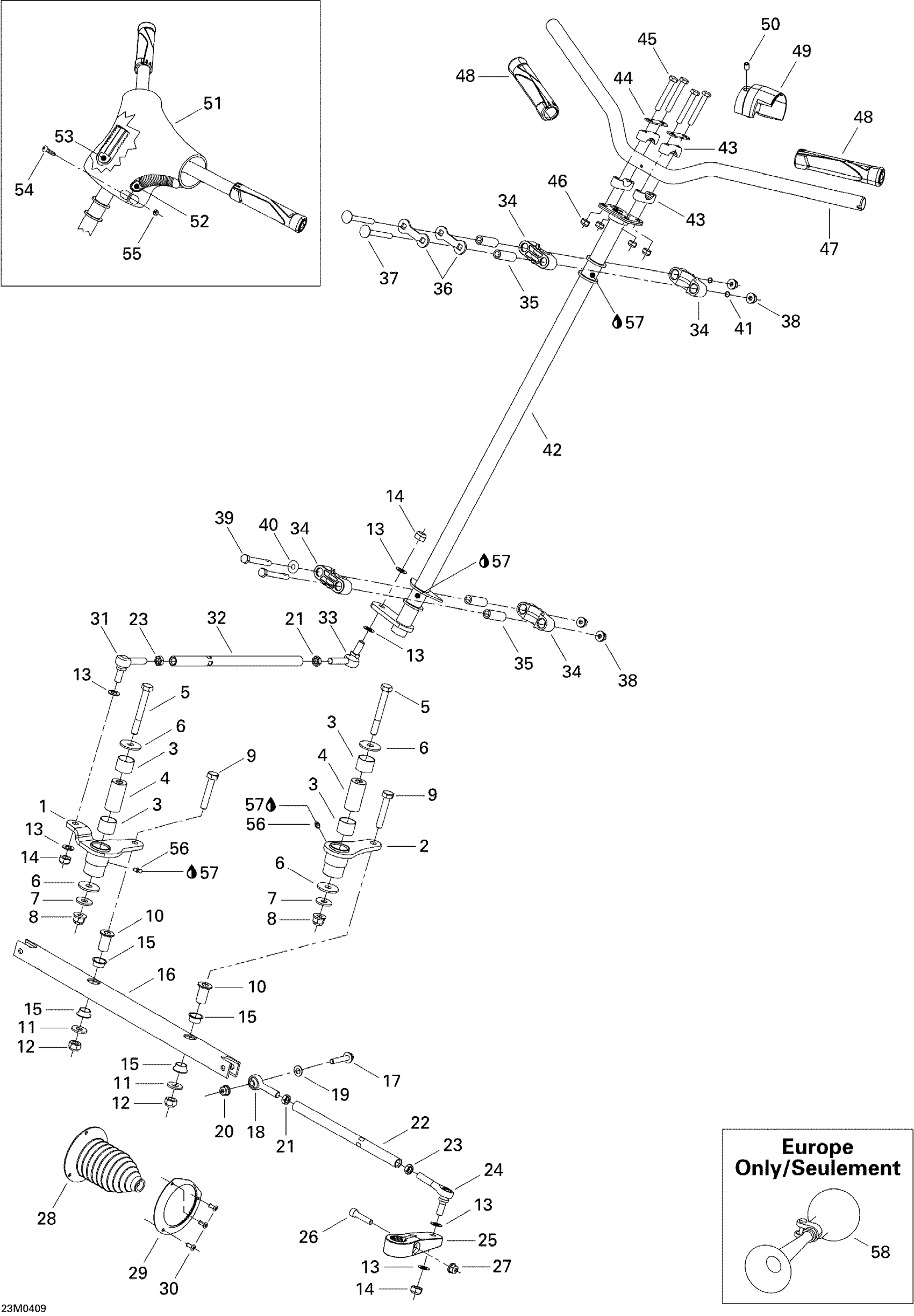

2004 Ski-Doo Legend V-1000 Steering System Diagram
Find the part on the Steering System diagram for your 2004 Ski-Doo Legend V-1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
3
BUSHING SWIVEL - Call your local BRP dealership
506149900
4
PIVOT SWIVEL - Call your local BRP dealership
506150100
7
Flat Washer M10 | 4X4
250200014
9
Hex. Screw M10 X 55
207005544
11
FLAT WASHER - Call your local BRP dealership
224002251
12
Elastic Locking Nut M10 X 1.5
233601416
13
Washer
503175800
15
Swivel Bushing
503191555
16
SWIVEL BAR - Call your local BRP dealership
506151362
20
Hex. Flange Elastic Nut M8
233281414
23
RH Threaded Hex. Jam Nut M10
732610010
25
RH STEERING ARM - Call your local BRP dealership
506145800
LH STEERING ARM - Call your local BRP dealership
506145900
26
SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership
205083544
27
Hex. Flange Elastic Nut M8
233281414
31
RH BALL JOINT - Call your local BRP dealership
506151492
33
LH JOINT BALL - Call your local BRP dealership
506151845
35
Housing Bushing
506150500
38
Hex. Flange Elastic Nut M8
233281414
45
Hex. Screw M8 X 55
207085544
46
Hex. Elastic Stop Nut M8
232581414
53
Keyway | Sport / Sport GT
506151661
55
Hex. Flange Elastic Nut M5
233251414
56
Grease Fitting
408200700
57
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
58
Horn
549011291
