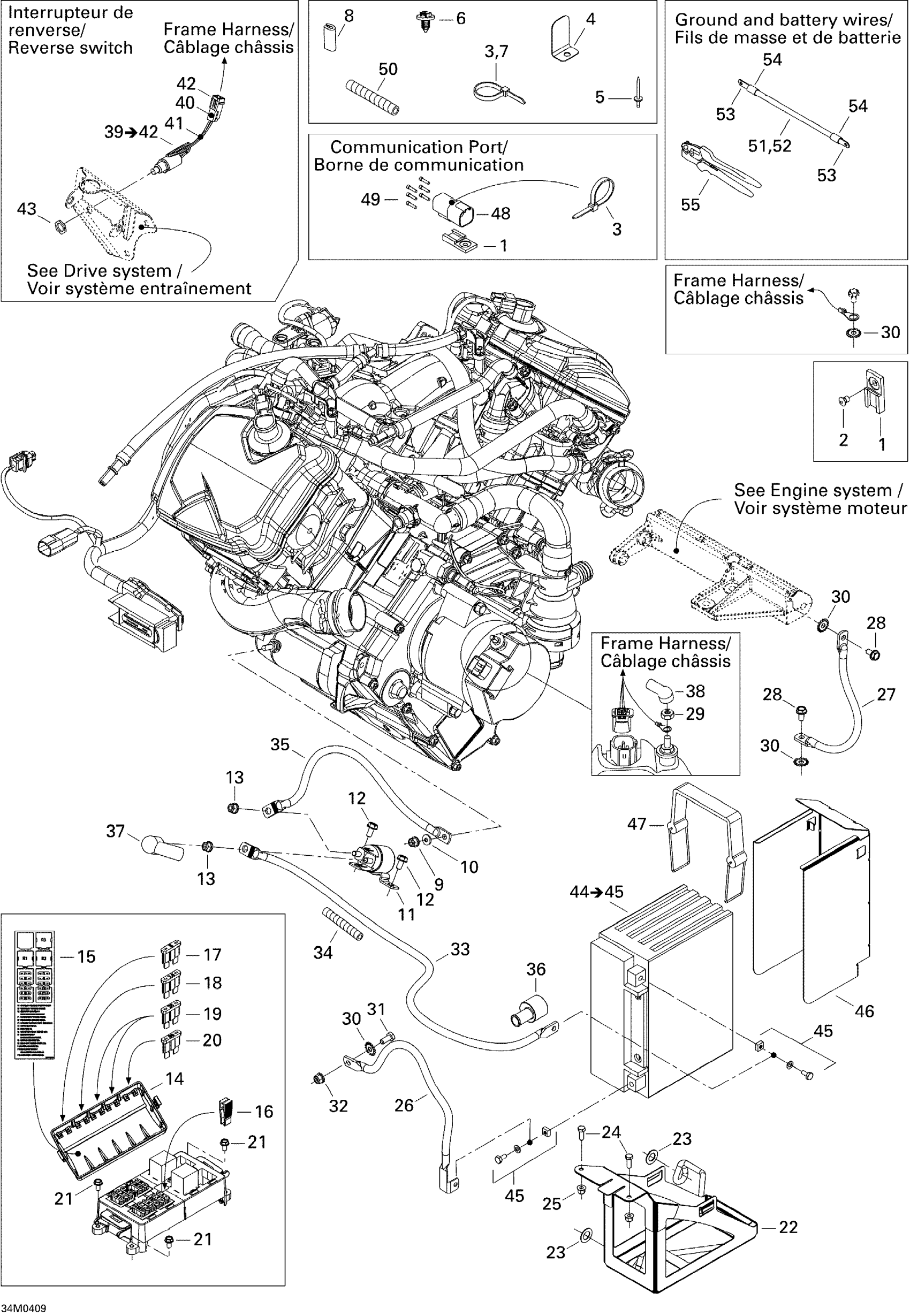

Ski-Doo Legend V-1000, 2004 Battery and accessories Diagram

#

Description
Price

1

Clip

270000141

$11.99

2

Avdel Rivet 3/16"

293150037

$1.49

3

Tie-Rap 173 mm

293750009

$1.49

4

Tab Lock

518322530

Unavailable

5

Pop Rivet 3/16"

390402400

$1.49

6

Mount Dart

293730040

$1.49

7

Tie-Rap 180 mm

414115200

$1.49

Tie Wrap 142 mm

293750002

$1.49

Tie Wrap 368 mm

293750008

$1.49

8

Was 271000110 Protection Trim

219704353

$16.49

9

Elastic Stop Nut M6

232561414

$1.78

10

Flat Washer 6 mm

234061410

$1.49

11

Starter Relay

515176011

$63.99

12

Hex. Flange Screw M6 X 12

210261250

$1.99

13

Elastic Stop Nut M6

232561414

$1.78

14

COVER - Call your local BRP dealership

515176066

Unavailable

15

Fuse Decal

516001613

Unavailable

16

FUSE TOOL - Call your local BRP dealership

515175811

Unavailable

17

Fuse, 5 Amperes | CE

278000344

$3.39

18

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

19

Fuse, 20 Amperes

409003900

$3.39

20

Fuse, 30 Amperes

410917200

$3.39

21

Hex. Forming Screw M5 X 16

210251650

$1.49

22

Battery Support

515175954

Unavailable

23

Washer

503175800

$3.39

24

Hex. Screw M5 X 14

207151444

$1.49

25

Hex. Flange Elastic Nut M5

233251414

$1.91

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Hex. Flange Screw M6 X 12

210261250

$1.99

29

Elastic Stop Nut M6

232561414

$1.78

30

Lock Washer Serrated M6

250200041

$1.49

31

Hex. Screw M6 X 16

207161644

$1.49

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

33

Battery Wire

515175794

Unavailable

34

Was 409901700 Tubing (9 mm)

219704399

$86.99

35

Battery Wire

515175793

Unavailable

36

Protector Cap | XT

515175919

$17.99

37

PROTECTOR CAP - Call your local BRP dealership

278001771

Unavailable

38

Protector Cap

710000526

$11.49

39

Switch Ass'y

515176472

$74.99

40

Male Terminal

515175232

$1.59

41

Tape

293740005

Unavailable

42

Male Terminal Housing, 2 Circuits

515175654

$9.29

43

BRASS NUT - Call your local BRP dealership

250100012

Unavailable

44

Battery, 12 Volts, 21 Amperes

410922962

$188.95

45

Battery Bolt Kit

250000282

$7.49

46

DEFLECTOR - Call your local BRP dealership

515175616

Unavailable

47

Battery Strap This part replaces 515175955.

605356180

$28.99

48

Male Terminal Housing, 6 Circuits

515175668

$16.99

49

Sealing Cap

293000052

$3.29

50

Tubing 6 Mm 3000Mm Long

219704425

$13.99

51

Ground Cable Battery, no 6, meter)

278001680

Unavailable

52

Cable Battery, no 6, meter)

278001690

Unavailable

53

Terminal 45°, Small Hole

278001682

Unavailable

TERMINAL 45, SMALL HOLE - Call your local BRP dealership

278001683

Unavailable

TERMINAL 90, SMALL HOLE - Call your local BRP dealership

278001684

Unavailable

FLAT TERMINAL, BIG HOLE - Call your local BRP dealership

278001685

Unavailable

TERMINAL 45, BIG HOLE - Call your local BRP dealership

278001686

Unavailable

TERMINAL 90, BIG HOLE - Call your local BRP dealership

278001687

Unavailable

FLAT TERMINAL - Call your local BRP dealership

278001688

Unavailable

Terminal 30°, 2 Holes

278001776

Unavailable

54

Was 710000483 Heat Shrink Tubing

219704447

$81.99

55

Crimp Plier

529035730

Unavailable
