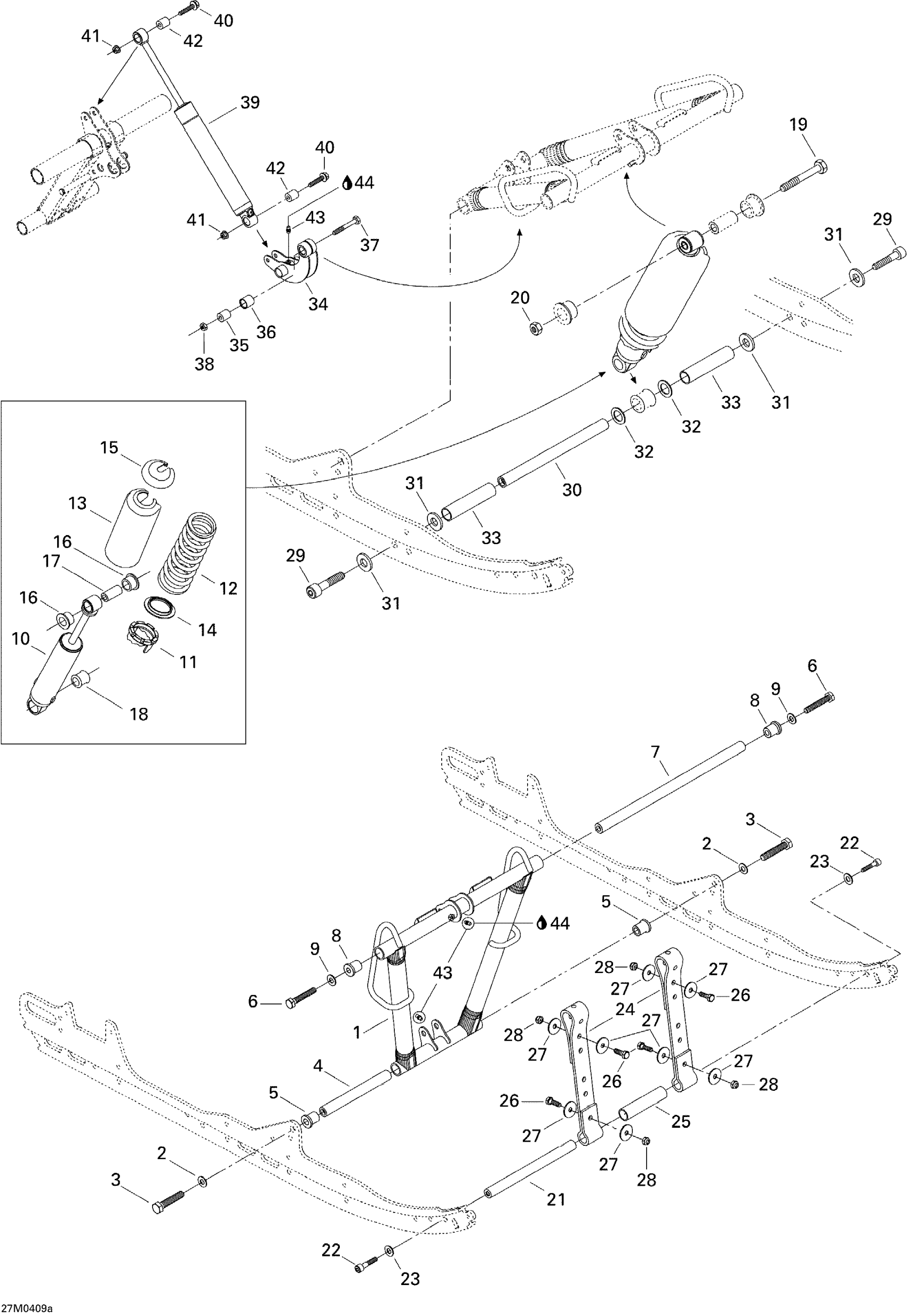

Ski-Doo Legend V-1000, 2004 Front Arm Diagram

#

Description
Price

1

Front Arm

503189292

Unavailable

2

Washer

503189276

$3.10

3

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

4

SHAFT - Call your local BRP dealership

503189313

Unavailable

5

CUSHION - Call your local BRP dealership

503189323

Unavailable

6

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

$2.82

7

SHAFT - Call your local BRP dealership

503190387

Unavailable

8

Bushing

503189324

$10.84

9

Washer

732900049

$0.55

10

Center Shock

503190208

Unavailable

11

Adjustment Cam

505073625

$11.82

12

SPRING - Call your local BRP dealership

503189659

Unavailable

13

Protector

503193663

$34.30

14

Spring Guide

503191872

$2.12

15

Spring Stopper

706200881

$11.82

16

Urethane Bushing

503189117

$6.67

17

Bushing | Includes 240d to 240d1

503189282

$4.06

18

Bushing

503189271

$10.15

19

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

20

Elastic Locking Nut M10 X 1.5

233601416

$1.63

21

AXLE - Call your local BRP dealership

503189562

Unavailable

22

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.60

23

Washer

503189564

$0.70

24

Stopper Strap, Large

503190563

Unavailable

25

Spacer

503189265

$4.61

26

Hex. Screw M8 X 25

207182544

$0.85

27

Flat Washer

224081301

$0.84

28

Hex. Elastic Stop Nut M8

232581414

$0.54

29

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.82

30

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

31

Washer

503189276

$3.10

32

Washer

503189273

$3.10

33

SPACER - Call your local BRP dealership

503189274

Unavailable

34

Rocker

503189845

Unavailable

35

Rocker Axle

503189388

Unavailable

36

CUSHION - Call your local BRP dealership

503189626

Unavailable

37

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

38

Elastic Locking Nut M10 X 1.5

233601416

$1.63

39

Rear Shock | SE

503190007

Unavailable

Rear Shock | Sport

503190209

Unavailable

40

Hex. Flange Screw M8 X 40

207684044

$1.43

41

Hex. Flange Elastic Nut M8

233281414

$1.31

42

Bushing

414936000

$11.21

43

Grease Fitting

408200700

$3.21

44

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417
