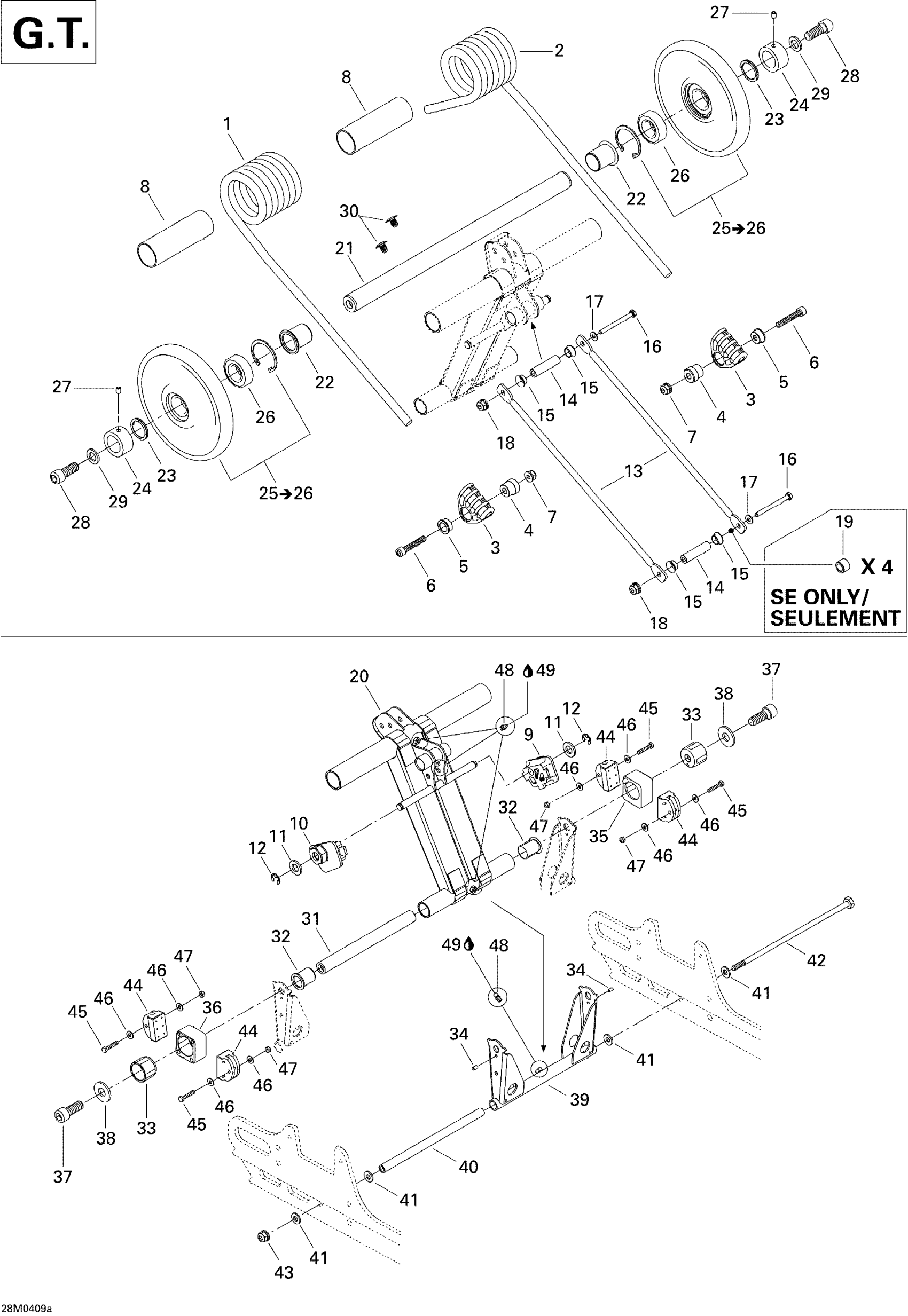

Ski-Doo Legend V-1000, 2004 Rear Arm GT Diagram

#

Description
Price

1

RH SPRING - Call your local BRP dealership | GTX Sport Europe

503189898

Unavailable

RH SPRING, EUROPE - Call your local BRP dealership | SE Europe

503189992

Unavailable

RH SPRING, SQUARE - Call your local BRP dealership | SE

503190492

Unavailable

2

LH SPRING - Call your local BRP dealership | GTX Sport Europe

503189900

Unavailable

LH Spring, Europe | SE Europe

503189994

Unavailable

LH SPRING, SQUARE - Call your local BRP dealership | SE

503190494

Unavailable

3

Spring Support

503189657

$10.20

4

Spring Guide Axle

503188934

Unavailable

5

CUSHION RETAINER - Call your local BRP dealership

503188929

Unavailable

6

Socket Head Screw M8 X 45

205084544

$0.74

7

Hex. Flange Elastic Nut M8

233281414

$1.14

8

PLASTIC BUSHING - Call your local BRP dealership

503189105

Unavailable

9

LH CAM ADJUSTER - Call your local BRP dealership

503190023

Unavailable

10

RH CAM ADJUSTER - Call your local BRP dealership

503190022

Unavailable

11

Flat Washer 12 mm

234021410

$0.68

12

E-Circlip

293370013

$0.62

13

THROTTLE ROD - Call your local BRP dealership

503190111

Unavailable

14

AXLE ROD - Call your local BRP dealership

503189815

Unavailable

Bar Axle (Short)

503190113

$37.66

15

Swivel Bushing

503191555

$5.71

16

Hex. Screw M8 X 90

207089044

$2.82

Hex. Screw M8 X 130

230083044

$7.23

17

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

18

Hex. Flange Elastic Nut M8

233281414

$1.14

19

Spacer

503190114

$15.35

20

Rear Arm

503190110

Unavailable

21

Upper Axle

503189412

Unavailable

22

CUSHION - Call your local BRP dealership

503189288

Unavailable

23

Axle Spring

503189146

$7.54

24

Retainer Ring

503189147

Unavailable

25

Wheel 165 Ass’Y | Includes 24 to 25

503190269

Unavailable

26

Ball Bearing

293350115

$11.15

27

Socket Set Screw M6 X 8

206260844

$1.25

28

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.91

29

Washer

503189276

$3.20

30

Black, Dart

414644300

$0.78

31

REAR LOWER AXLE - Call your local BRP dealership

503189413

Unavailable

32

Cushion

503191640

$5.71

33

Block Guide

503189488

$37.66

34

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

35

LH Block

503189152

Unavailable

36

RH Block

503189170

Unavailable

37

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.91

38

Washer

503189276

$3.20

39

PIVOT ARM - Call your local BRP dealership

503189819

Unavailable

40

Pivot Arm Axle

503189156

$20.74

41

Washer

503189157

$3.20

42

Bolt M8 X 248mm

503192440

$29.97

43

Hex. Flange Elastic Nut M8

233281414

$1.14

44

Rubber Stopper

503191291

$18.43

45

Hex. Screw M5 X 30

207053044

$0.98

46

Washer

250200016

$0.72

47

Elastic Stop Nut M5

232551414

$0.72

48

Grease Fitting

408200700

$2.80

49

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
