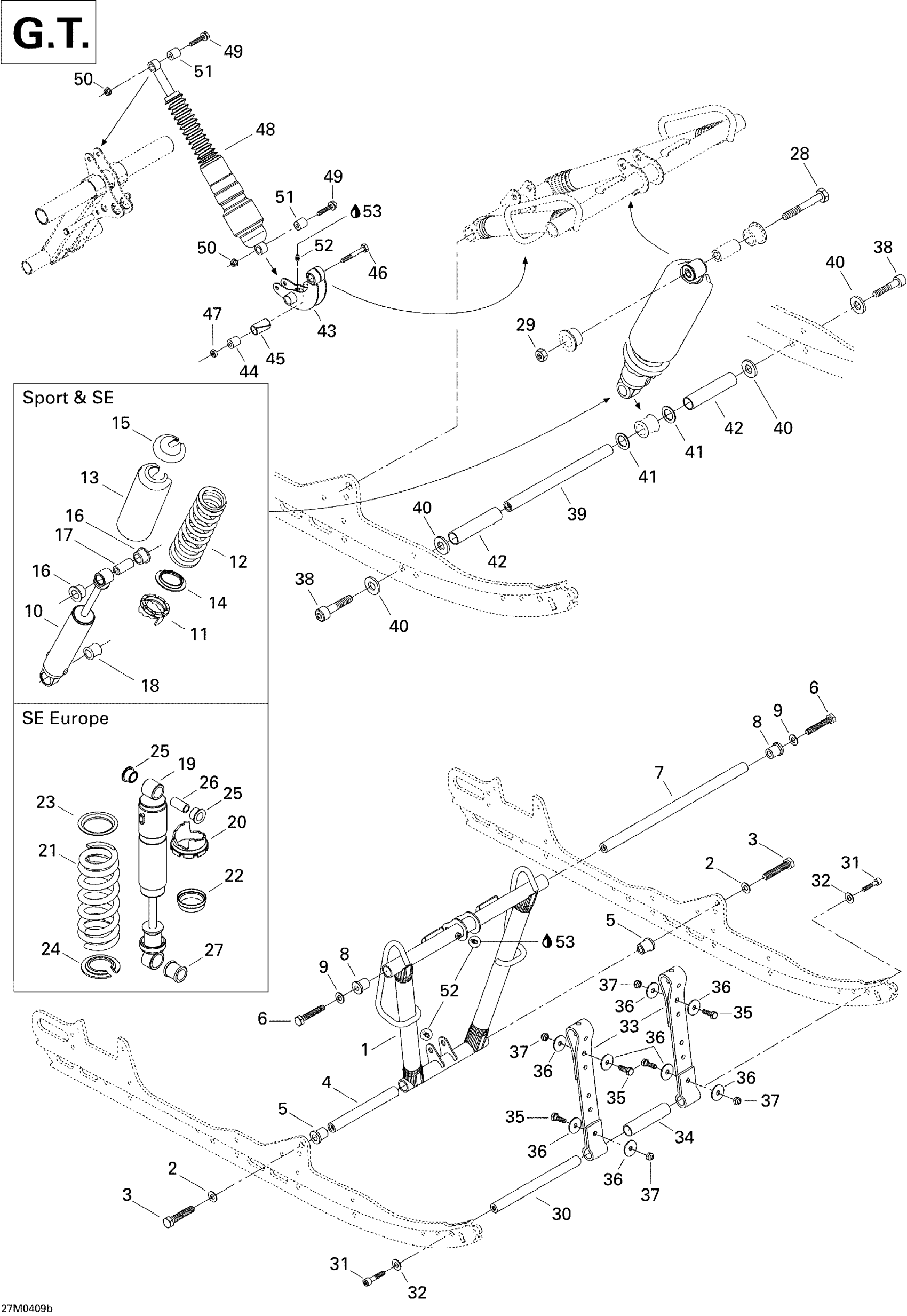

Ski-Doo Legend V-1000, 2004 Front arm GT Diagram

#

Description
Price

1

Front Arm

503189292

Unavailable

2

Washer

503189276

Unavailable

3

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

4

SHAFT - Call your local BRP dealership

503189313

Unavailable

5

CUSHION - Call your local BRP dealership

503189323

Unavailable

6

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

Unavailable

7

SHAFT - Call your local BRP dealership

503190387

Unavailable

8

Bushing

503189324

$11.17

9

Washer

732900049

Unavailable

10

Center Shock

503190208

Unavailable

11

Adjustment Cam

505073625

Unavailable

12

SPRING - Call your local BRP dealership

503189659

Unavailable

13

Protector

503193663

Unavailable

14

Spring Guide

503191872

Unavailable

15

Spring Stopper

706200881

$10.30

16

Urethane Bushing

503189117

Unavailable

17

Bushing | Includes 240d to 240d1

503189282

Unavailable

18

Bushing

503189271

Unavailable

19

Center Shock | Se Europe

503190452

Unavailable

20

Adjustment Cam

505073625

Unavailable

21

SPRING - Call your local BRP dealership

503189659

Unavailable

22

PROTECTOR - Call your local BRP dealership

503190252

Unavailable

23

Spring Guide

503191872

Unavailable

24

Spring Stopper

503189912

$16.89

25

Urethane Bushing

503189117

Unavailable

26

Bushing | Includes 240d to 240d1

503189282

Unavailable

27

Bushing

503189271

Unavailable

28

Hex. Screw M10 X 1.5 X 50

207005044

Unavailable

29

Elastic Locking Nut M10 X 1.5

233601416

$1.68

30

AXLE - Call your local BRP dealership

503189562

Unavailable

31

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.39

32

Washer

503189564

Unavailable

33

Stopper Strap, Large

503190563

Unavailable

34

Spacer

503189265

$4.66

35

Hex. Screw M8 X 25

207182544

Unavailable

36

Flat Washer

224081301

$0.86

37

Hex. Elastic Stop Nut M8

232581414

Unavailable

38

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

39

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

40

Washer

503189276

Unavailable

41

Washer

503189273

Unavailable

42

SPACER - Call your local BRP dealership

503189274

Unavailable

43

Rocker

503189845

Unavailable

44

Rocker Axle

503189388

Unavailable

45

CUSHION - Call your local BRP dealership

503189626

Unavailable

46

Hex. Screw M10 X 1.5 X 50

207005044

Unavailable

47

Elastic Locking Nut M10 X 1.5

233601416

$1.68

48

Rear Shock | GTX Sport Europe

503190005

Unavailable

Rear Shock | GTX Sport Europe

503190005

Unavailable

Rear Shock | Sport

503190224

Unavailable

49

Hex. Flange Screw M8 X 40

207684044

Unavailable

50

Hex. Flange Elastic Nut M8

233281414

Unavailable

51

Bushing

414936000

Unavailable

52

Grease Fitting

408200700

Unavailable

53

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
