1976 Yamaha LB802A (LB802AC) Seat-Under Cover Diagram

← All diagrams

Find the part on the Seat-Under Cover diagram for your 1976 Yamaha LB802A (LB802AC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

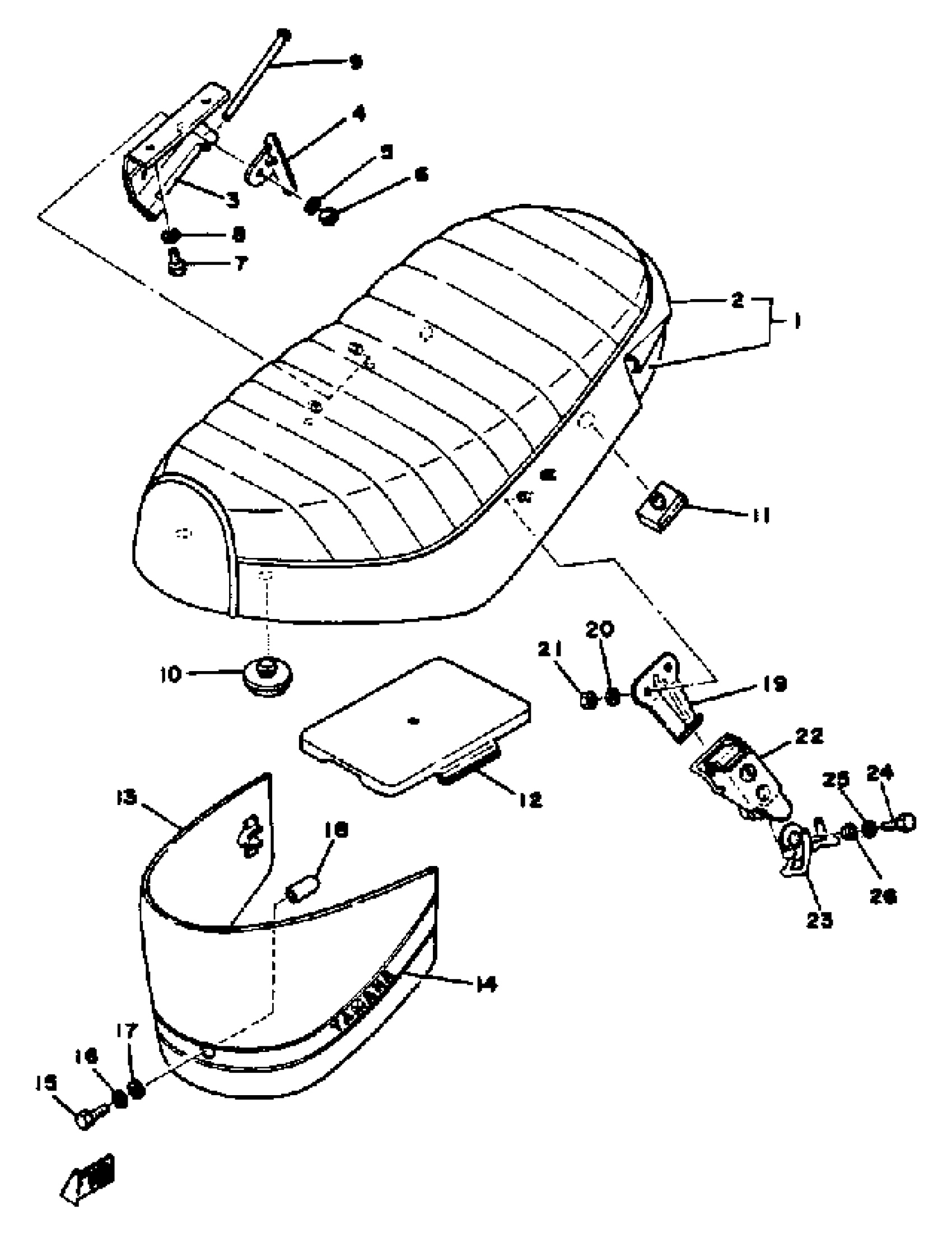

1976 Yamaha LB802A (LB802AC) Seat-Under Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SINGLE SEAT ASSEMBLY

1L4-W2471-01-00

1
Out of stock

2

. COVER, SINGLE SEAT

1L4-24711-01-00

1
Out of stock

3

HINGE, SEAT

(561-24726-00-00)

1
Out of stock

4

STOPPER

(561-24768-02-00)

1
Out of stock

5

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

6

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

7

BOLT (661)

97013-06012-00

1

$4.71

In stock

8

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

9

PIN

1K8-24774-00-00

1
Out of stock

9

PIN, CLEVIS (3M7)

91701-05105-00

1
Out of stock

10

PAD, SEAT

1L9-24741-00-00

1

$8.91

In stock

10

PAD, SEAT

1L9-24741-00-00

1

$8.91

In stock

11

DAMPER, SEAT

214-24724-00-00

1

$6.72

In stock

12

LID

395-28185-00-00

1
Out of stock

13

COVER

(561-24796-01-26)

1
Out of stock

13

COVER

(561-24796-01-E1)

1
Out of stock

13

COVER

(561-24796-01-K9)

1
Out of stock

14

EMBLEM, COVER

561-21783-00-00

—

$28.11

In stock

15

BOLT(3RV)

97014-06035-00

—

$1.54

In stock

16

WASHER, SPRING

(90204-05001-00)

1
Out of stock

17

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

18

COLLAR(1AE)

90387-060N3-00

—

$8.74

In stock

19

BRACKET, SEAT

(561-24728-01-00)

1
Out of stock

20

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

21

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

22

SEAT LEVER ASSY

1K8-24705-00-00

—

$77.71

In stock

23

HOOK, HELMET

341-24818-02-00

1
Out of stock

24

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

25

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

26

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock
