1976 Yamaha LB802A (LB802AC) Carrier Diagram

← All diagrams

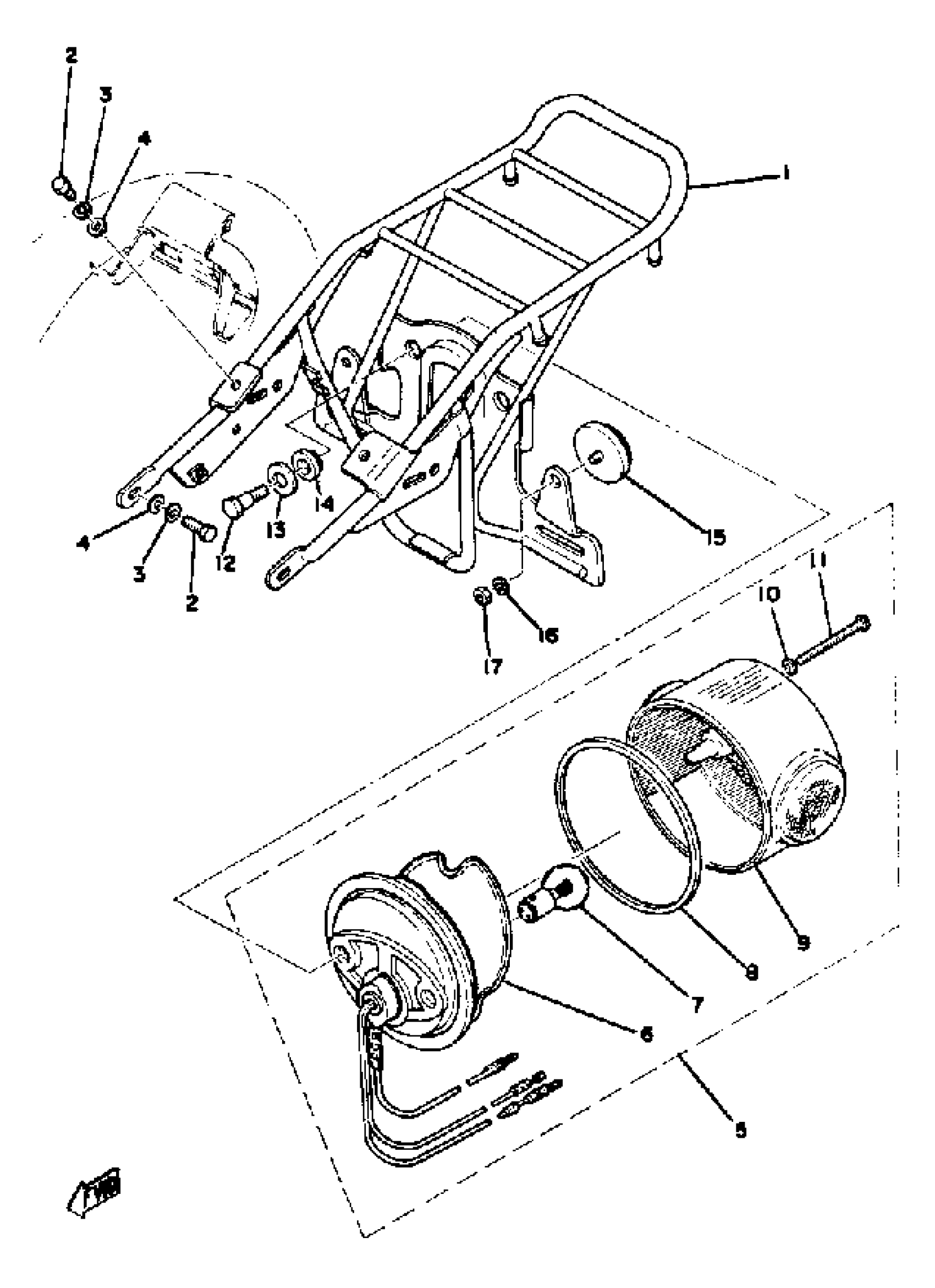

Find the part on the Carrier diagram for your 1976 Yamaha LB802A (LB802AC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha LB802A (LB802AC) Carrier Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARRIER ASSEMBLY

(542-24810-01-00)

1
Out of stock

2

BOLT(8CP)

97017-06014-00

1

$5.12

In stock

2

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

3

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

4

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

5

TAIL LIGHT UNIT ASSEMBLY

437-84510-62-00

1
Out of stock

6

. UNAVAILABLE IN PRICE BOOK

1E6-84711-61-00

1
Out of stock

6

BASE, TAILLIGHT

(444-84711-61-00)

1
Out of stock

7

. BULB

1M1-84514-60-00

1
Out of stock

8

. GASKET, LENS

275-84523-60-00

1
Out of stock

9

. LENS, TAIL LIGHT

341-84721-60-00

1
Out of stock

10

. WASHER

341-84722-60-00

1
Out of stock

11

SCREW, PANHEAD (4G7)

98580-04055-00

—

$7.02

In stock

12

SCREW

(479-84526-00-00)

1
Out of stock

13

WASHER, SPECIAL

2H7-84754-00-00

1
Out of stock

14

. DAMPER

275-84527-60-00

1
Out of stock

15

REFLECTOR, REAR 1

449-85131-02-00

—

$25.74

In stock

16

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

17

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock
