1976 Yamaha LB802A (LB802AC) Frame Diagram

← All diagrams

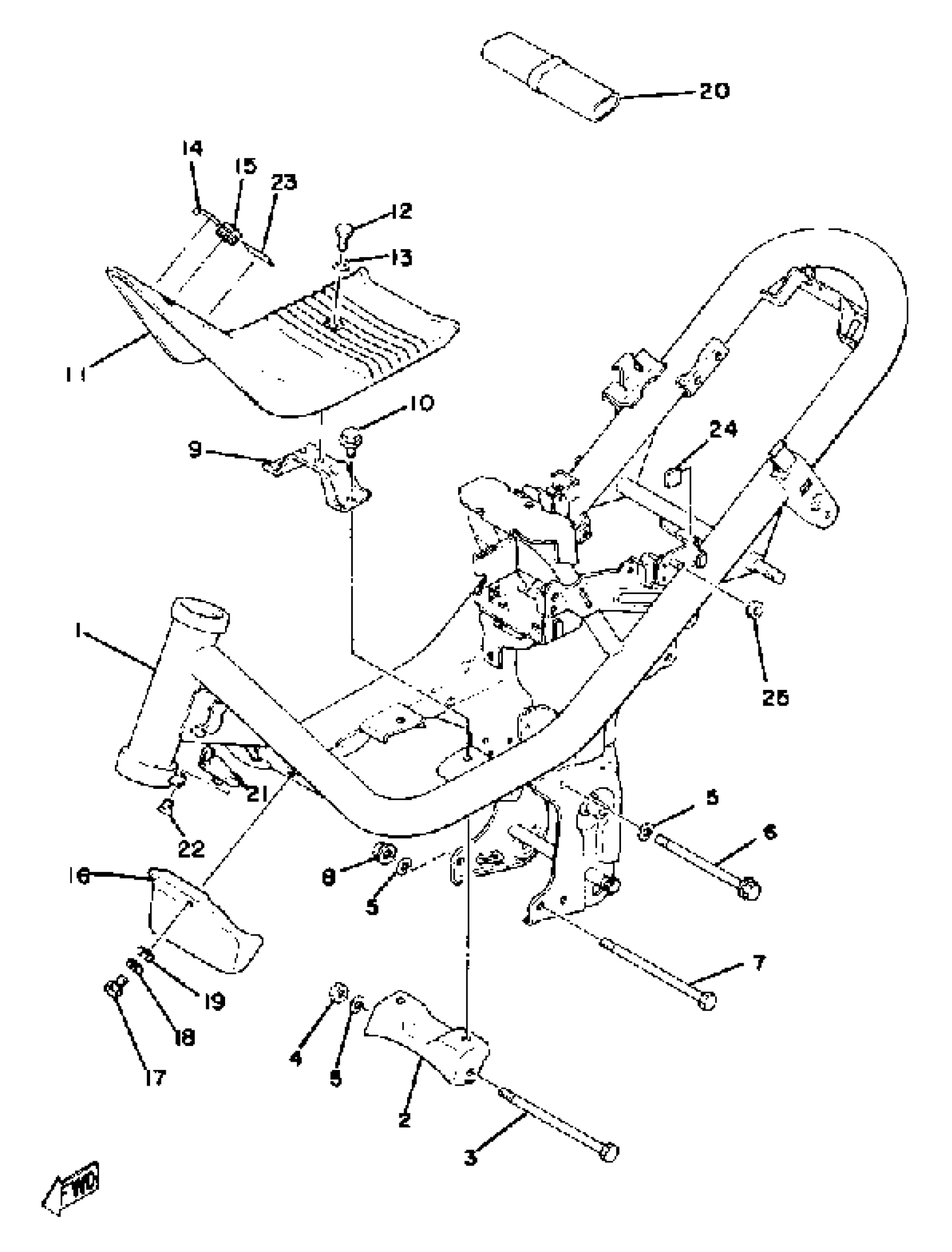

Find the part on the Frame diagram for your 1976 Yamaha LB802A (LB802AC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha LB802A (LB802AC) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO LONGER AVAILABLE

1L4-21110-00-K9

1
Out of stock

2

STAY, REAR UPPER

(439-21421-00-00)

1
Out of stock

3

BOLT

90109-08386-00

—
Out of stock

4

NUT, HEXAGON (509)

90170-08158-00

1

$1.10

In stock

5

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

6

BOLT, FLANGE(4EM)

95817-08120-00

1

$3.83

In stock

7

BOLT (5A6)

90101-08538-00

1

$7.00

In stock

8

NUT, FLANGE

95704-08500-00

1
Out of stock

9

STAY, LEG SHIELD L

439-28321-00-00

1
Out of stock

10

BOLT, FLANGE(JN5)

95817-08016-00

1

$4.12

In stock

11

COVER,LOWER

439-28385-01-00

1
Out of stock

12

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

13

WASHER, PLATE

90201-06M08-00

1
Out of stock

14

EMBLEM

1F7-28328-00-00

1
Out of stock

15

GROMMET(52W)

90480-21436-00

—
Out of stock

16

GUARD, MUD

439-21629-00-00

1
Out of stock

17

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

20

TOOL KIT

2U2-W2810-00-00

1
Out of stock

21

STEERING LOCK ASSEMBLY

(137-23480-00-00)

1
Out of stock

22

SCREW, FLAT

98707-06014-00

—
Out of stock

23

EMBLEM

(542-28338-00-00)

1
Out of stock

24

DAMPER, SEAT

561-24723-01-00

1
Out of stock

25

GROMMET

90480-10178-00

1
Out of stock
