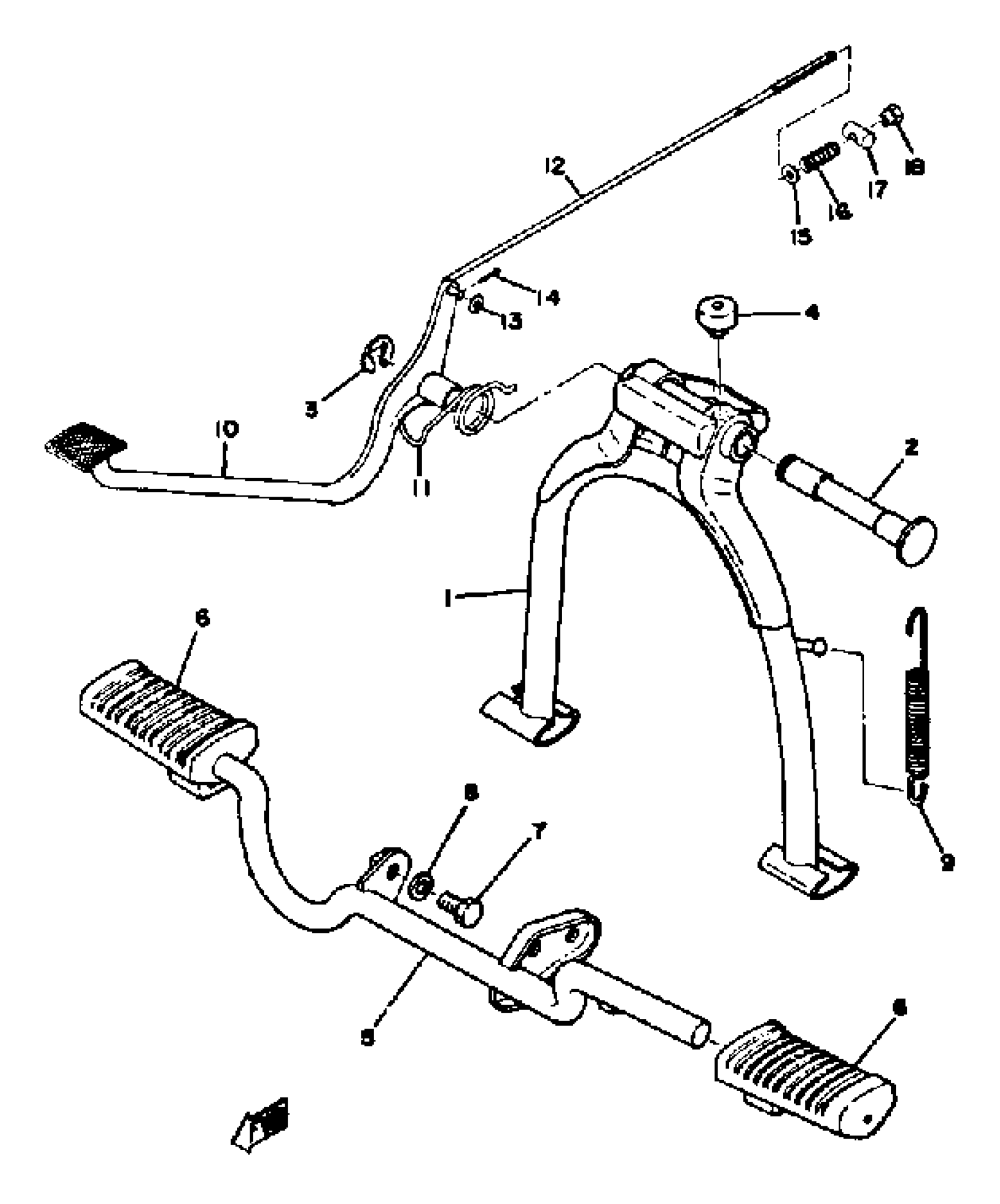

Find the part on the Stand-Footrest diagram for your 1976 Yamaha LB802A (LB802AC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha LB802A (LB802AC) Stand-Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, MAIN (439-27111-03-33)

439-27111-03-00

1
Out of stock

2

SHAFT, MAIN STAND

(336-27112-00-00)

1
Out of stock

2

SHAFT, MAIN STAND

439-27112-00-00

—

$14.54

In stock

3

CIRCLIP (122)

93430-12008-00

1

$5.10

In stock

4

STOPPER

1M3-27114-00-00

1

$8.09

In stock

5

FOOTREST 1

439-27411-00-00

1
Out of stock

6

COVER, FOOTREST

384-27413-00-00

1
Out of stock

6

COVER, FOOT REST

441-27413-01-00

1

$15.43

In stock

7

BOLT

(90101-08287-00)

1
Out of stock

7

BOLT, HEXAGON

97013-08016-00

1

$1.32

In stock

8

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

9

SPRING, TENSION (1L9)

90506-26270-00

1

$13.05

In stock

10

PEDAL, BRAKE

563-27211-02-91

1
Out of stock

11

SPRING, TORSION

(90508-26037-00)

1
Out of stock

12

ROD, BRAKE

288-27231-00-00

1
Out of stock

13

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

13

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

14

PIN, COTTER

91490-20025-00

—

$1.31

In stock

15

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

16

SPRING, (180-27236-00)

90501-10245-00

—

$6.17

In stock

17

PIN 1562723700

90249-12008-00

—

$4.70

In stock

18

NUT (25K)

90179-06411-00

—

$5.10

In stock
