1976 Yamaha LB802A (LB802AC) Flywheel Magneto Diagram

← All diagrams

Find the part on the Flywheel Magneto diagram for your 1976 Yamaha LB802A (LB802AC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

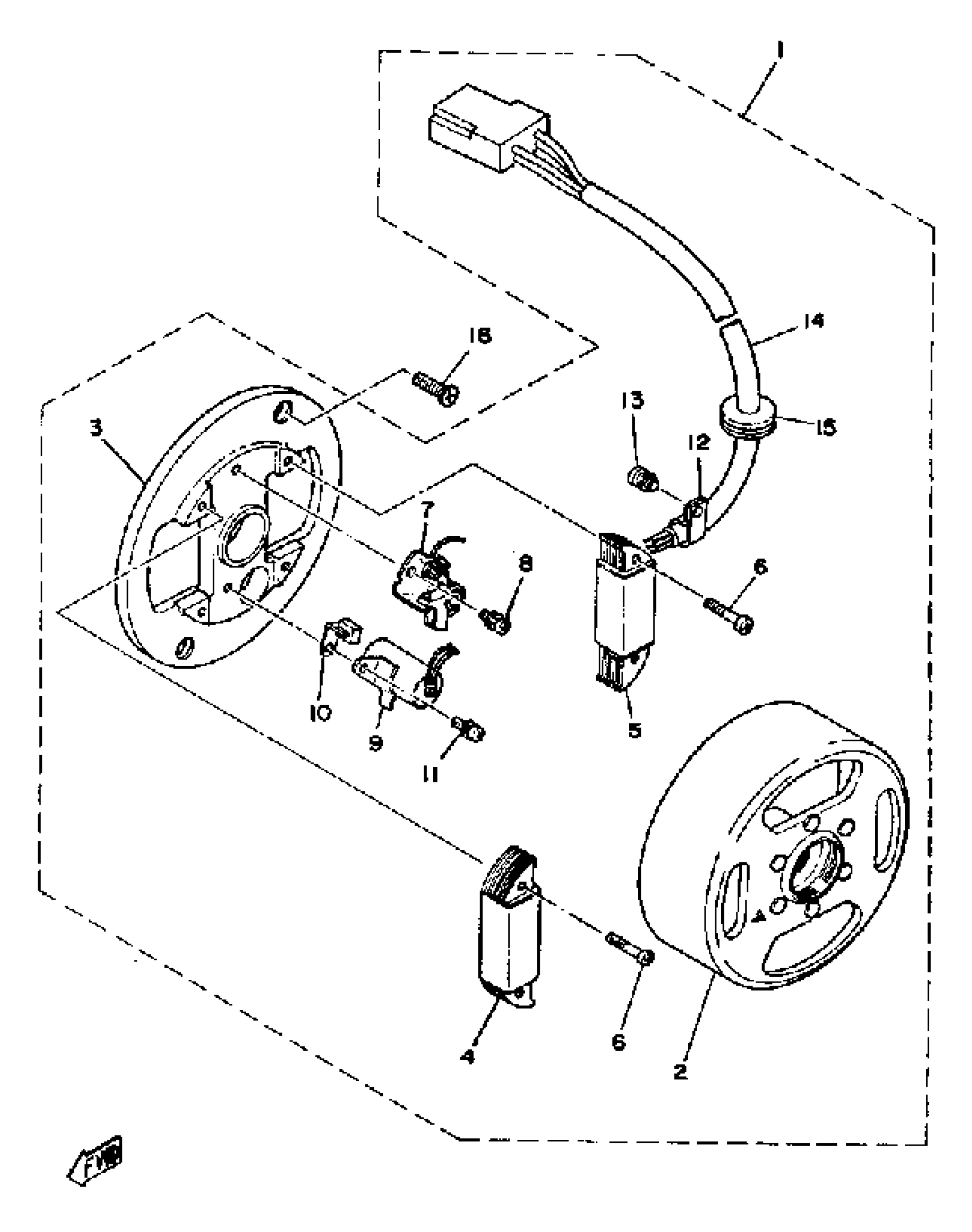

1976 Yamaha LB802A (LB802AC) Flywheel Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FLYWHL MAGNETO ASSEMBLY

(2F7-81300-21-00)

1
Out of stock

1

FLYWHL MAGNETO ASSEMBLY

(591-81300-21-00)

1
Out of stock

2

ROTOR ASSEMBLY

(2F7-81350-20-00)

1
Out of stock

2

ROTOR ASSEMBLY

(511-81350-20-00)

1
Out of stock

3

BASE, MAGNETO

520-81309-20-00

1
Out of stock

4

. COIL, SOURCE

511-81312-20-00

1
Out of stock

5

COIL, LIGHTING 1

(2F7-81313-20-00)

1
Out of stock

5

COIL, LIGHTING 1

(542-81313-20-00)

1
Out of stock

6

SCREW, PAN HEAD

98517-04025-00

1

$2.94

In stock

6

SCREW, PAN HEAD

98517-04025-00

1

$2.94

In stock

7

CONTACT BREAKER ASSY

2A6-81321-20-00

1

$44.99

In stock

7

CONTACT BREAKER ASSY

2A6-81321-20-00

1

$44.99

In stock

8

SCREW, PAN HEAD

110-81346-21-00

1

$4.32

In stock

8

SCREW, PAN HEAD

110-81346-21-00

1

$4.32

In stock

8

POINT GAUGE

(169-28121-00-00)

1
Out of stock

8

CONDENSER

1K8-81325-20-00

—

$58.31

In stock

8

CONTACT BREAKER ASSY

2A6-81321-20-00

1

$44.99

In stock

8

TUNE KIT LB80AC

(ACC-01100-52-10)

1
Out of stock

8

BR6HS NGK 4PK

BR6-HS000-00-00

1
Out of stock

9

CONDENSER

1K8-81325-20-00

—

$58.31

In stock

10

. LUBRICATOR

116-81331-20-00

1
Out of stock

11

SCREW, PAN HEAD

110-81346-21-00

1

$4.32

In stock

12

CLAMP, LEAD

104-81328-20-00

—

$6.31

In stock

13

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

14

LEAD WIRE ASSEMBLY

(2F7-81315-21-00)

1
Out of stock

14

LEAD WIRE ASSEMBLY

(591-81315-20-00)

1
Out of stock

15

GROMMET (14L)

90480-16304-00

—

$5.62

In stock

16

SCREW, FLAT

98707-05016-00

—

$5.60

In stock
