1977 Yamaha LB80-3D (LB80_3D) Tail Lamp Diagram

← All diagrams

Find the part on the Tail Lamp diagram for your 1977 Yamaha LB80-3D (LB80_3D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

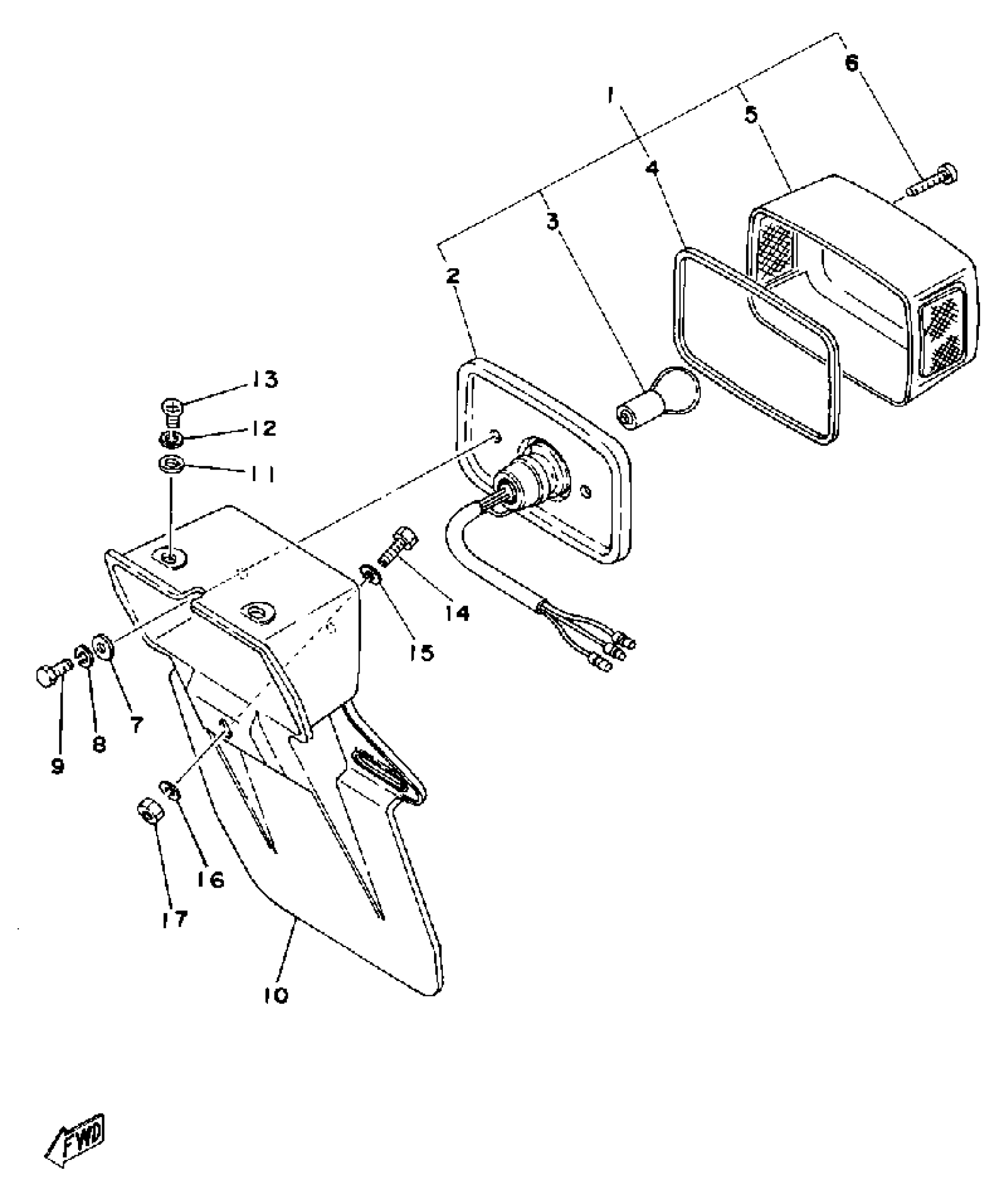

1977 Yamaha LB80-3D (LB80_3D) Tail Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSEMBLY

1M1-84510-60-00

1
Out of stock

2

. BASE, TAILLIGHT

1M1-84511-60-00

1
Out of stock

3

. BULB

1M1-84514-60-00

1
Out of stock

4

GASKET, TAIL LENS

1M1-84523-60-00

1

$11.03

In stock

5

LENS, TAIL LAMP

1M1-84521-60-00

1

$35.69

In stock

6

SCREW, ADJUSTING

5BF-8433E-00-00

1

$6.11

In stock

7

WASHER, PLATE

90201-06095-00

1

$6.31

In stock

8

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

9

BOLT, HEXAGON

97017-06030-00

1

$3.00

In stock

10

PLATE, NO SUPPORT

(1T8-28189-00-00)

1
Out of stock

11

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

SCREW, PAN HEAD(3TJ)

98507-06016-00

1

$2.43

In stock

14

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

15

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock
