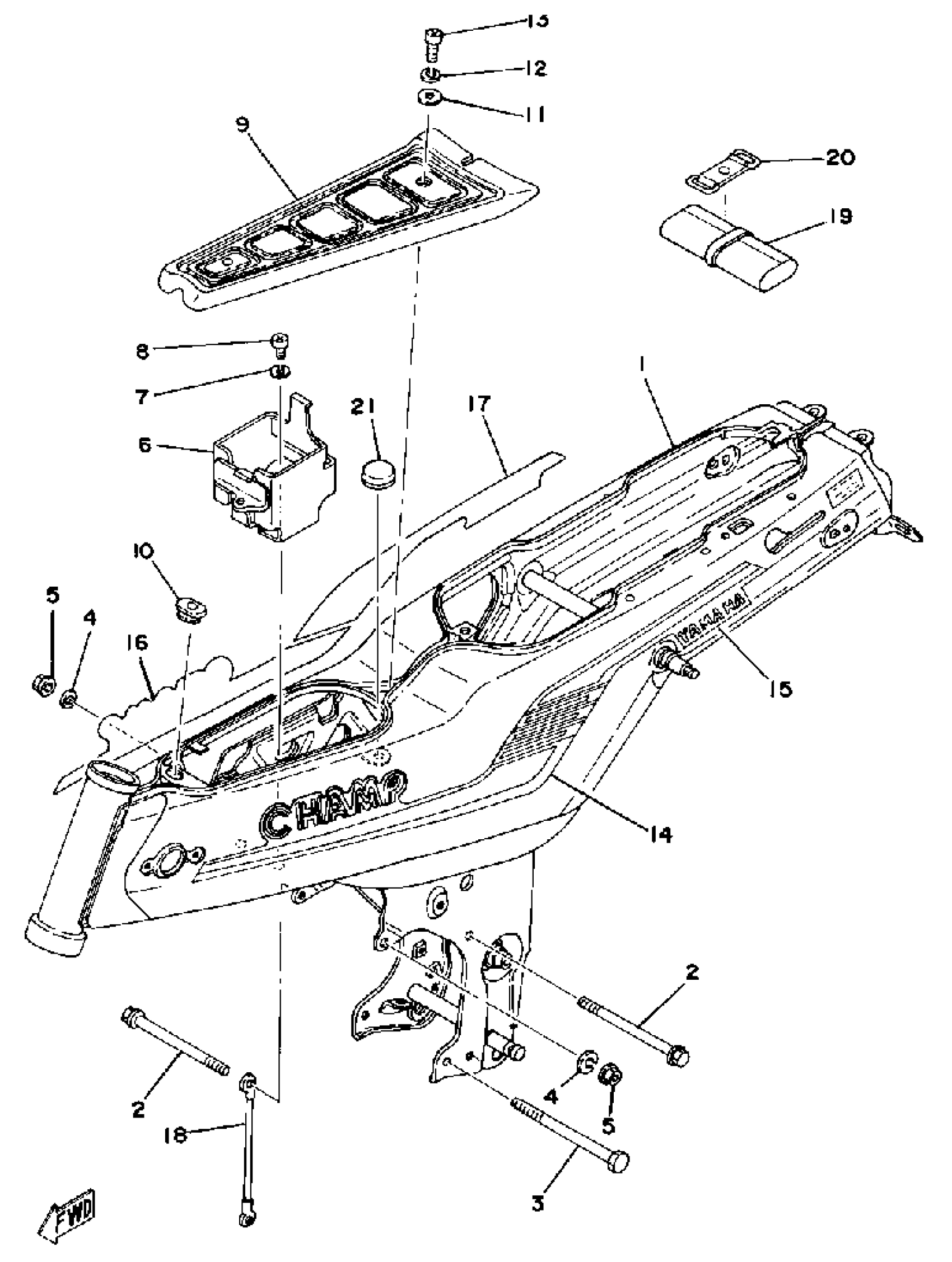

Find the part on the Frame diagram for your 1977 Yamaha LB80-3D (LB80_3D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha LB80-3D (LB80_3D) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(1T8-21110-01-26)

1
Out of stock

2

BOLT, FLANGE(4EM)

95817-08120-00

1

$3.83

In stock

3

BOLT (5A6)

90101-08538-00

1

$7.00

In stock

4

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

5

NUT, FLANGE

95704-08500-00

1
Out of stock

6

BRACKET, BATT BOX

(1M3-21393-02-00)

1
Out of stock

7

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

8

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

9

COVER, LOWER

(1M3-28385-00-00)

1
Out of stock

10

GROMMET(41Y)

90480-01401-00

1

$5.51

In stock

11

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

SCREW, PAN HEAD(6E5)

97880-06018-00

1

$4.19

In stock

14

GRAPHIC, FUEL TNK 7

(1T8-24254-00-00)

1
Out of stock

15

GRAPHIC, FUEL TNK 8

(1M3-24255-00-00)

1
Out of stock

16

GRAPHIC, FUEL TNK 9

(1T8-24256-00-00)

1
Out of stock

17

GRPHC, FUEL TANK 10

(1M3-24257-00-00)

1
Out of stock

18

WIRE, EARTH LEAD

(1M3-82519-01-00)

1
Out of stock

19

TOOL KIT

(1M3-28100-10-00)

1
Out of stock

20

BAND, TOOL

21V-21376-00-00

—

$6.38

In stock

21

PAD, SEAT

1L9-24741-00-00

—

$8.91

In stock
