1977 Yamaha LB80-3D (LB80_3D) Head Lamp - Speedometer Diagram

← All diagrams

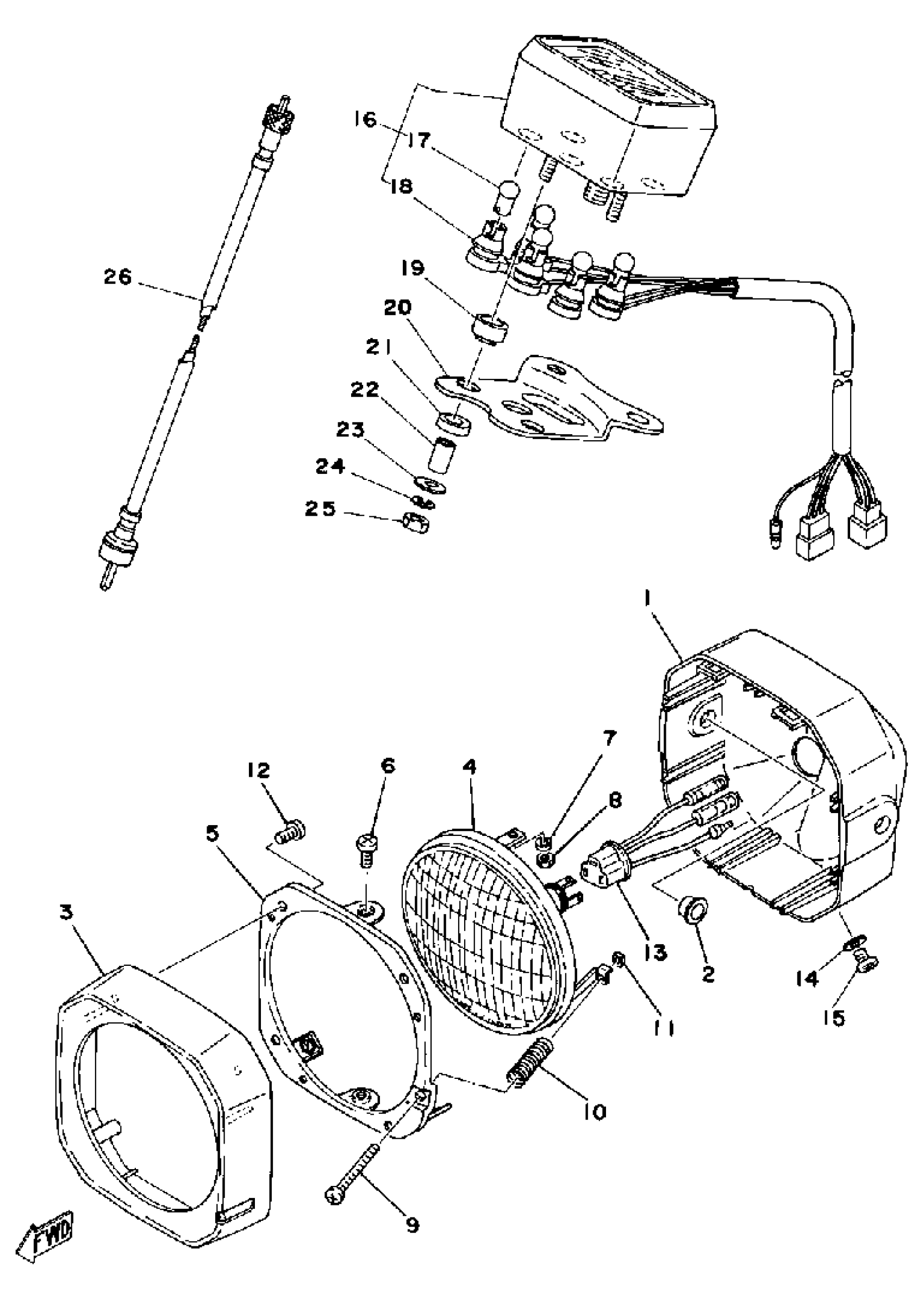

Find the part on the Head Lamp - Speedometer diagram for your 1977 Yamaha LB80-3D (LB80_3D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha LB80-3D (LB80_3D) Head Lamp - Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY HEADLIGHT

1M3-84111-02-1A

1
Out of stock

2

COLLAR, BODY FTNG

(1M3-84145-01-00)

1
Out of stock

3

RIM, HEADLIGHT

1T8-84115-60-26

1
Out of stock

4

LENS ASSY

388-84120-61-00

1
Out of stock

5

RING, MOUNTING

(1T8-84194-60-00)

1
Out of stock

6

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

7

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

8

NUT(6TA)

95307-04600-00

1

$6.69

In stock

9

SCREW, RIM ADJUSTER

(1T8-84131-60-00)

1
Out of stock

10

SPRING, ADJUST

341-84332-60-00

1

$8.54

In stock

11

NUT, ADJUST

198-84334-60-00

1

$6.43

In stock

12

SCREW, TAPPING

97780-40116-00

1

$3.79

In stock

13

SOCKET

371-84312-60-00

—

$26.52

In stock

14

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

15

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

16

SPEEDOMETER ASSEMBLY

(1T8-83510-60-00)

1
Out of stock

17

BULB,(6V3W)

122-83516-10-00

1
Out of stock

18

SOCKET CORD ASSEMBLY

(1T8-83520-00-00)

1
Out of stock

19

DAMPER

(1M3-83513-00-00)

1
Out of stock

20

BRACKET, METER

(1M3-83519-00-33)

1
Out of stock

21

DAMPER 2

355-83526-00-00

—

$2.25

In stock

22

COLLAR

355-83522-00-00

1
Out of stock

23

WASHER, PLATE (371)

90201-06412-00

—

$5.38

In stock

24

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

25

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

26

SPEEDOMETER CABLE ASSY

3T5-83550-80-00

—

$42.34

In stock
