1977 Yamaha LB80-3D (LB80_3D) Handle - Wire Diagram

← All diagrams

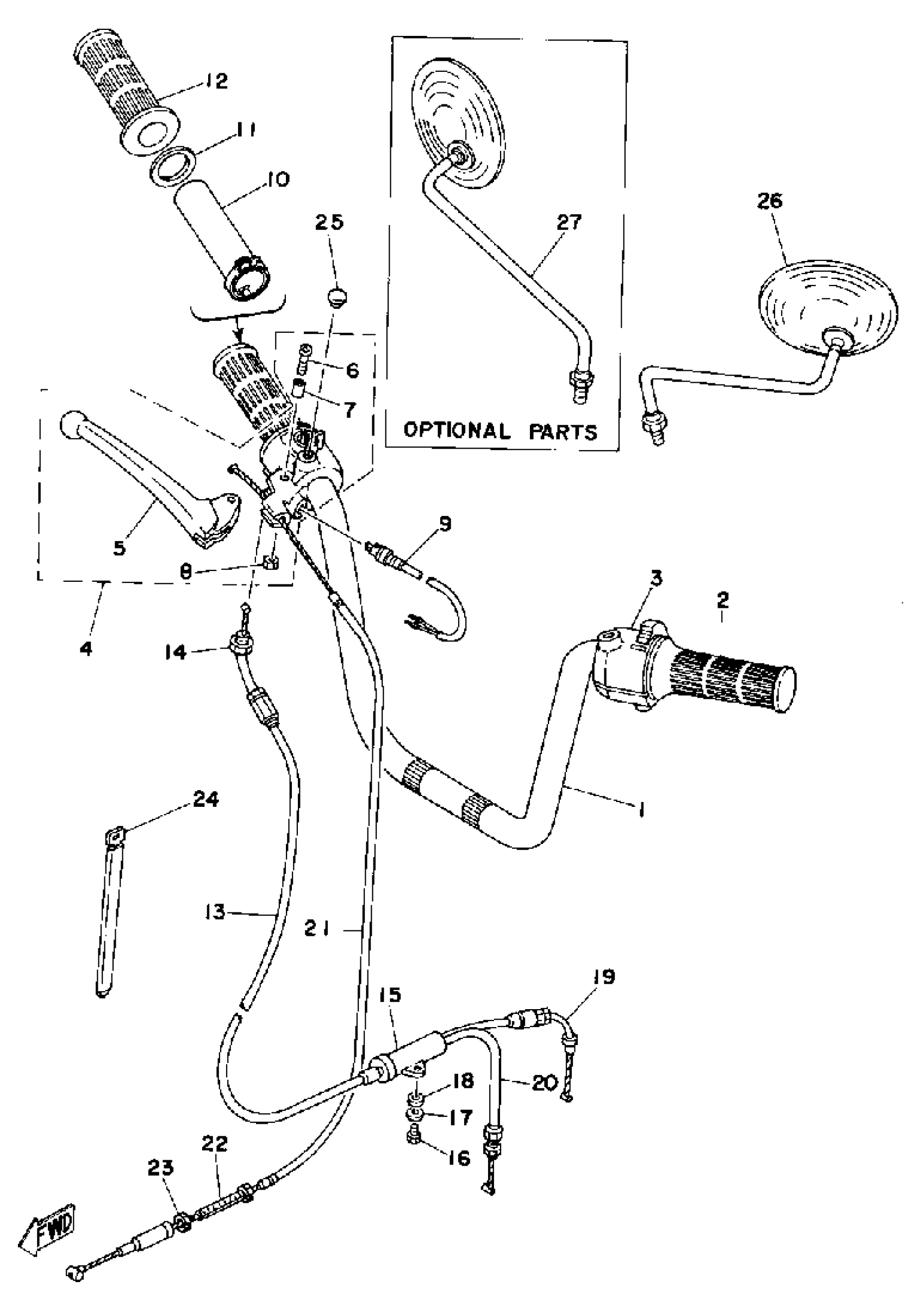

Find the part on the Handle - Wire diagram for your 1977 Yamaha LB80-3D (LB80_3D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha LB80-3D (LB80_3D) Handle - Wire Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

(1T8-26111-01-00)

1
Out of stock

2

GRIP (L.H)

353-26241-00-00

—

$19.12

In stock

3

SWITCH, HANDLE 3

(1T8-83973-00-00)

1
Out of stock

4

LEVER HOLDER ASSEMBLY R

(1T8-W8292-00-00)

1
Out of stock

5

LEVER (R.H)

2N3-83922-00-00

1

$26.28

In stock

6

SCREW, PANHEAD (A93)

98580-05525-00

1

$1.54

In stock

7

COLLAR, LEVER 1

(395-83913-00-00)

1
Out of stock

8

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

9

FRONT STOP SWITCH ASSY

395-83980-09-00

—

$34.84

In stock

10

TUBE, GUIDE

1V1-26243-00-00

1

$14.08

In stock

11

RING, LEAF

150-26249-00-00

1
Out of stock

12

GRIP (R.H)

353-26242-00-00

—

$21.92

In stock

13

CABLE,THROTTLE 1

2N3-26311-00-00

1
Out of stock

14

NUT, HEXAGON

90170-10038-00

1
Out of stock

15

CONNECTOR, CABLE

137-26261-01-00

—
Out of stock

16

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

19

CABLE, PUMP

1M3-26321-00-00

1
Out of stock

20

CABLE, THROTTLE 2

1M3-26312-00-00

1
Out of stock

21

CABLE, BRAKE

1M3-26341-01-00

1
Out of stock

22

BOLT (109-26345-00)

90123-06011-00

—

$14.12

In stock

23

NUT (109-26344-00)

90179-06143-00

—

$6.68

In stock

24

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

25

PLUG (17J)

90338-07124-00

—

$8.55

In stock

26

3MIRROR ASSEMBLY LH

266-26290-10-00

1
Out of stock

27

MIRROR ASSEMBLY RH

395-26290-00-00

1
Out of stock
