1977 Yamaha LB80-3D (LB80_3D) Flasher Lamp Diagram

← All diagrams

Find the part on the Flasher Lamp diagram for your 1977 Yamaha LB80-3D (LB80_3D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

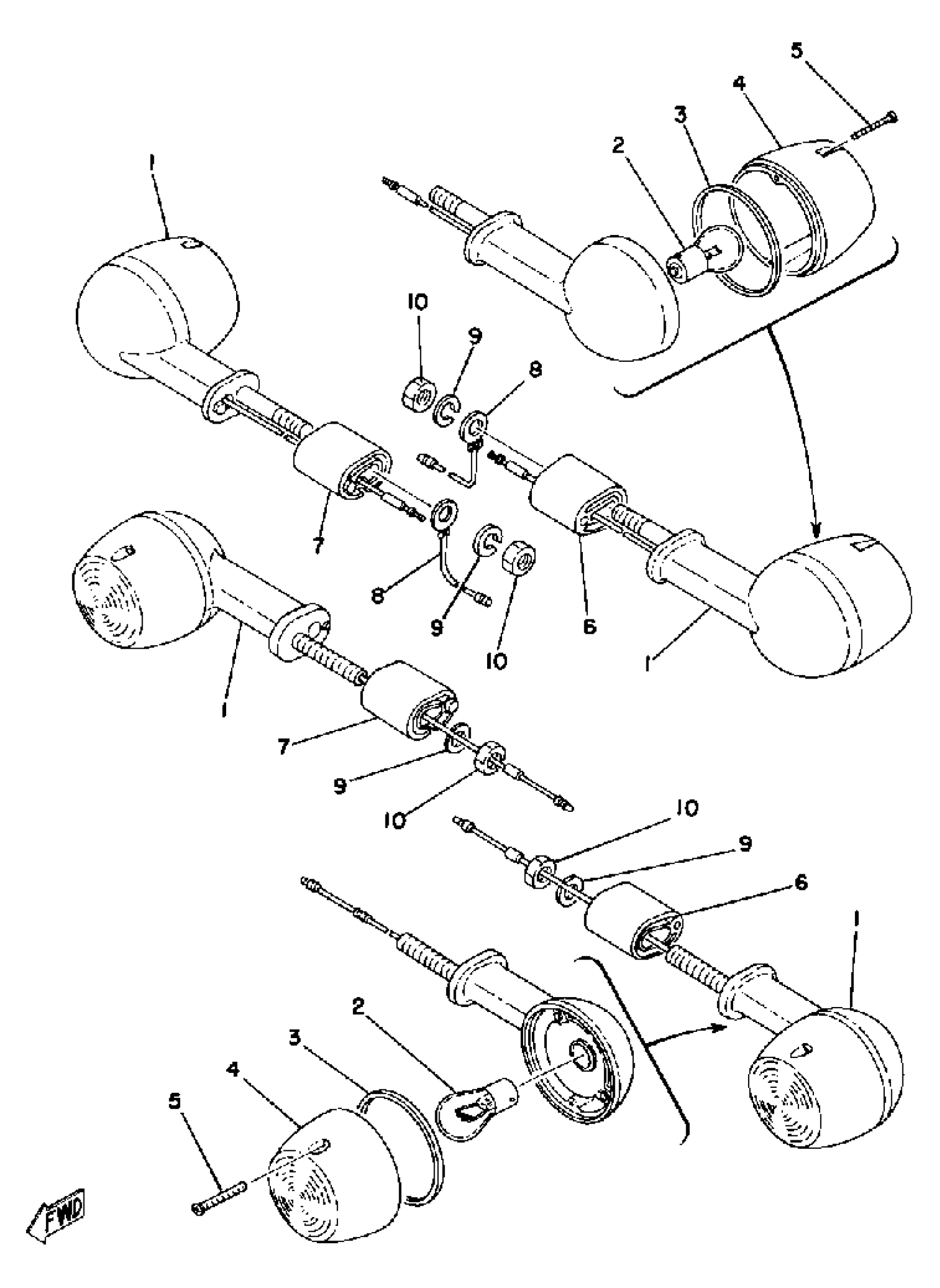

1977 Yamaha LB80-3D (LB80_3D) Flasher Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRT FLSHR LITE ASSEMBLY

542-83310-60-93

1
Out of stock

2

BULB,FLASHER(6V18W)

115-83311-60-00

—

$9.05

In stock

3

GASKET,FLASHER LANS

183-83313-70-00

—

$7.51

In stock

4

LENS, FLASHER

183-83312-70-00

—

$16.88

In stock

5

SCREW, LENS FITTING (3X32)

183-83333-71-00

1

$7.51

In stock

6

COLLAR, FLASHER 1

260-83316-30-00

1
Out of stock

7

COLLAR, FLASHER 2

260-83326-30-00

1
Out of stock

8

WIRE, EARTH (GROUND)

256-84313-01-00

1
Out of stock

9

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

10

NUT(6L2)

95333-08600-00

1

$3.20

In stock
