1984 Kawasaki KZ750-K2 (Canada Only) Stands Diagram

← All diagrams

Find the part on the Stands diagram for your 1984 Kawasaki KZ750-K2 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

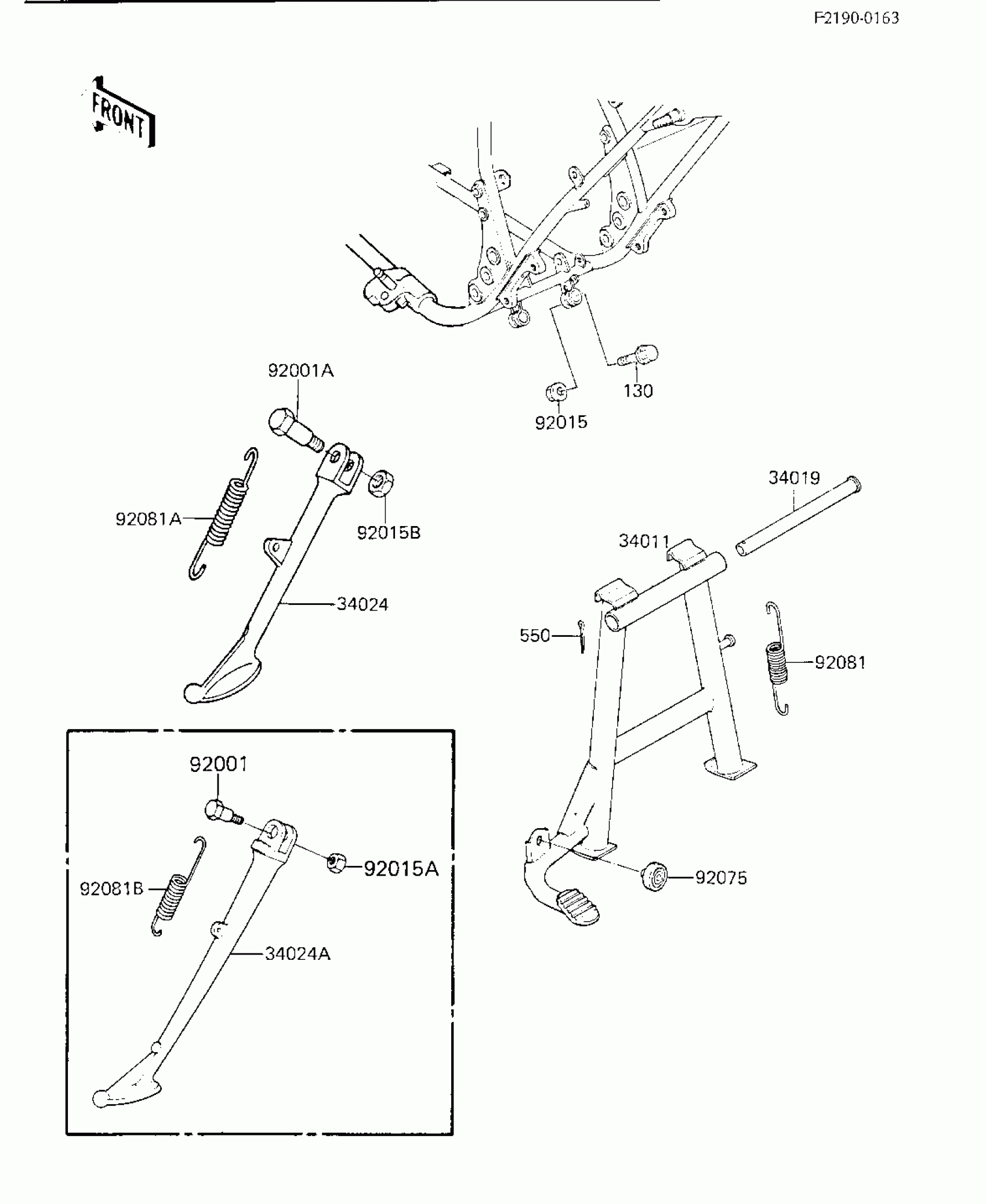

1984 Kawasaki KZ750-K2 (Canada Only) Stands Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34011

STAND-CENTER

34011-1065

1
Out of stock

34019

SHAFT,MAIN STAND

34019-016

1
Out of stock

34024A

STAND-SIDE (Canada)

34024-1100

1
Out of stock

92001

BOLT,SIDE STAND,BLACK

92001-1543

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1014

1
Out of stock

92015A

NUT,LOCK,10MM,BLACK

92015-1188

1
Out of stock

92075

DAMPER

92075-015

1
Out of stock

92081

SPRING,CNT STAND

34023-012

1
Out of stock

92081B

SPRING,SIDE STAND

92081-1727

1
Out of stock

130

BOLT-FLANGED,8X40

130G0840

1
Out of stock

550

PIN-COTTER,3.0X30

550D3030

1
Out of stock
