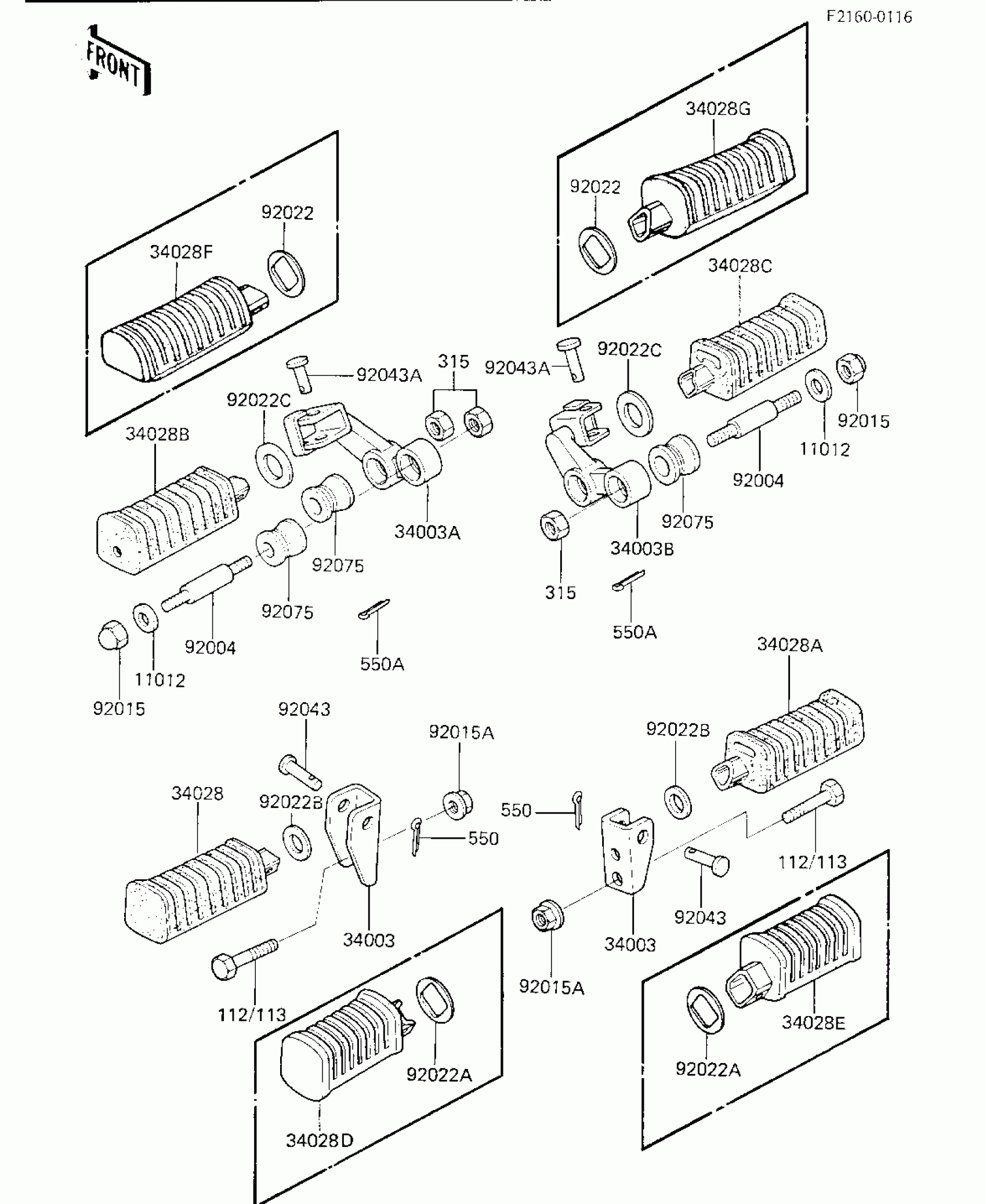

Kawasaki KZ750-K2 (Canada Only) FOOTRESTS Diagram

Description

Price

11012

CAP,FOOTRESTBAR

92102-010

$6.47

34003

HOLDER,REAR FOOTREST

34003-1025

$35.45

34003A

HOLDER-STEP,FR,LH

34003-1144

$58.88

34003B

HOLDER-STEP,FR,RH

34003-1145

$58.51

34028D

STEP,RR,LH

34028-1128

$29.65

34028E

STEP,RR,RH

34028-1129

Unavailable

34028F

STEP,FR,LH

34028-1136

Unavailable

34028G

STEP,FR,RH

34028-1137

Unavailable

92004

STUD

92004-067

Unavailable

92015

NUT,CAP,LOCK,8MM

92015-1133

$8.61

92015A

NUT,FLANGED,10MM

92015-1428

$3.81

92022

WASHER,STEP FITTING

92022-1314

$3.98

92022A

WASHER,STEP FITTING

92022-1514

Unavailable

92043

PIN,6X28

92043-1464

$6.18

92043A

PIN,8X35.5

92043-115

$9.22

92075

DAMPER RUBBER,FOOTRST

92075-140

$8.39

112

BOLT-UPSET (Canada)

112B1035

Unavailable

315

NUT-HEX-FINE,10MM

315B1000

Unavailable

550

PIN-COTTER,2.0X12

550D2012

$0.89

550A

PIN-COTTER,2.5X15

550D2515

$0.47
