1984 Kawasaki KZ750-K2 (Canada Only) Owner Tools Diagram

← All diagrams

Find the part on the Owner Tools diagram for your 1984 Kawasaki KZ750-K2 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

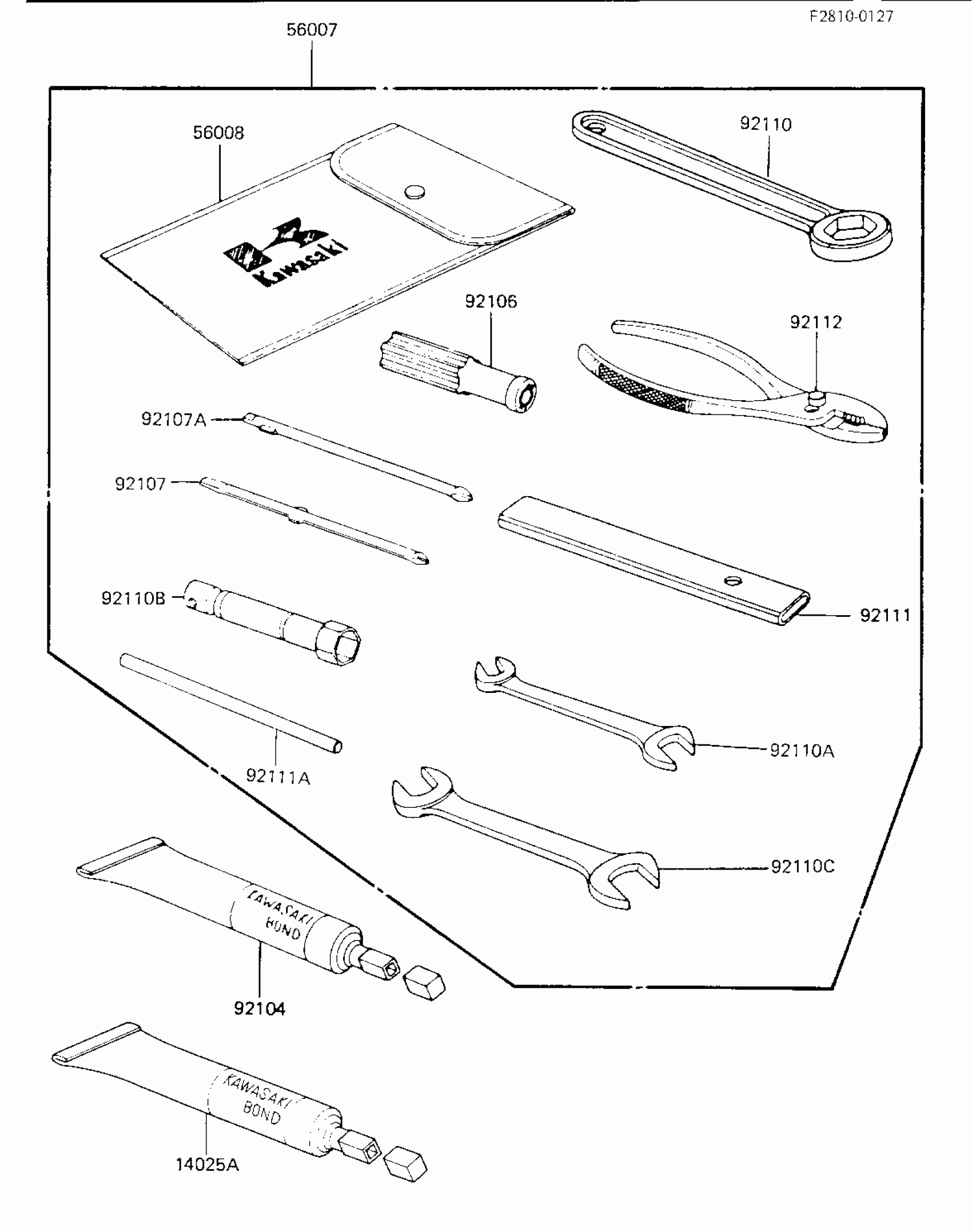

1984 Kawasaki KZ750-K2 (Canada Only) Owner Tools Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14025A

GASKET-LIQUID,TB1211,WHITE

56019-120

1
Out of stock

56007

TOOLKIT

56007-1284

1
Out of stock

56008

BAG,TOOL

56008-1019

1
Out of stock

92104

GASKET-LIQUID,TB1105B,SILVER

92104-002

1
Out of stock

92106

GRIP-SCREW DRIVER

92106-1001

1
Out of stock

92107

TOOL-DRIVER,#2PHILLIPS&SLOT

92107-1052

1
Out of stock

92107A

TOOL-DRIVER,#3PHILLIPS

92107-005

1
Out of stock

92110

TOOL-WRENCH,BOX END,27MM

92110-1147

1
Out of stock

92110A

TOOL-WRENCH,OPEN END,10X12

92110-1038

1
Out of stock

92110B

WRENCH,SPARK PLUG

92108-008

1
Out of stock

92110C

TOOL-WRENCH,OPEN END,14X17

92110-1153

1
Out of stock

92111

TOOL,BAR,BOX END WRENCH

92111-004

1
Out of stock

92111A

BAR,SPARK PLUG WRENCH

92111-005

1
Out of stock

92112

TOOL-PLIERS

92112-003

1
Out of stock
