1984 Kawasaki KZ750-K2 (Canada Only) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1984 Kawasaki KZ750-K2 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

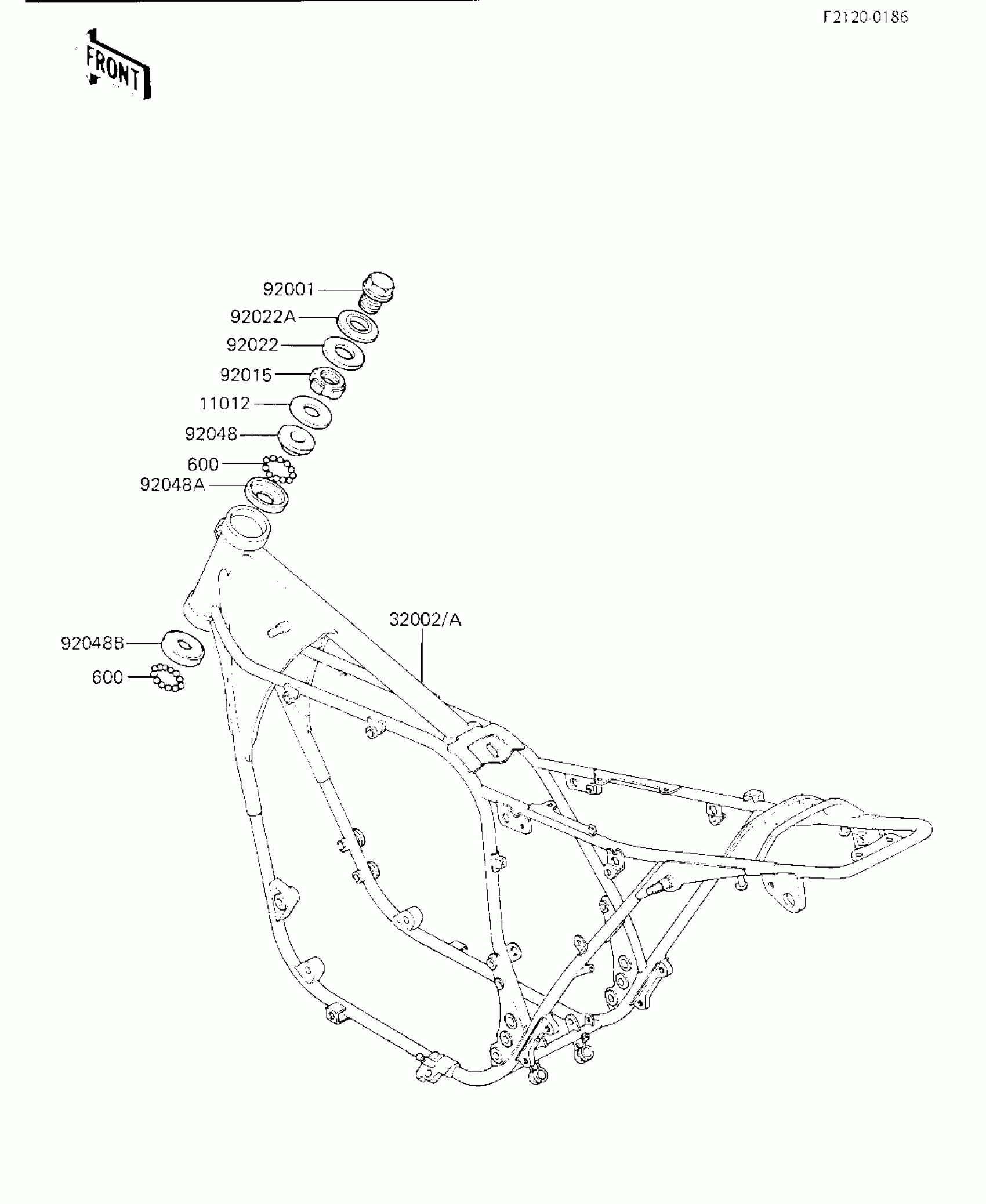

1984 Kawasaki KZ750-K2 (Canada Only) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,STEERING STEM

46098-016

1

$5.66

In stock

32002A

FRAME-COMP (Canada)

32002-1743

1
Out of stock

92001

BOLT,16X25.5

92007-031

1
Out of stock

92015

NUT,30MM

92090-007

1

$9.29

In stock

92022

WASHER,WAVE

46100-003

1
Out of stock

92022A

WASHER,16X41X4

92022-230

1
Out of stock

92048

RACE,STEERING STEM BEARING

92047-011

1
Out of stock

92048A

RACE,STEERING STEM BEARING

92048-006

1
Out of stock

92048B

RACE,STEERING STEM BEARING

92048-008

1
Out of stock

600

BALL-STEEL,1/4

600A0800

1

$0.67

In stock
← Footrests Frame Fittings →
