1984 Kawasaki KZ750-K2 (Canada Only) Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1984 Kawasaki KZ750-K2 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

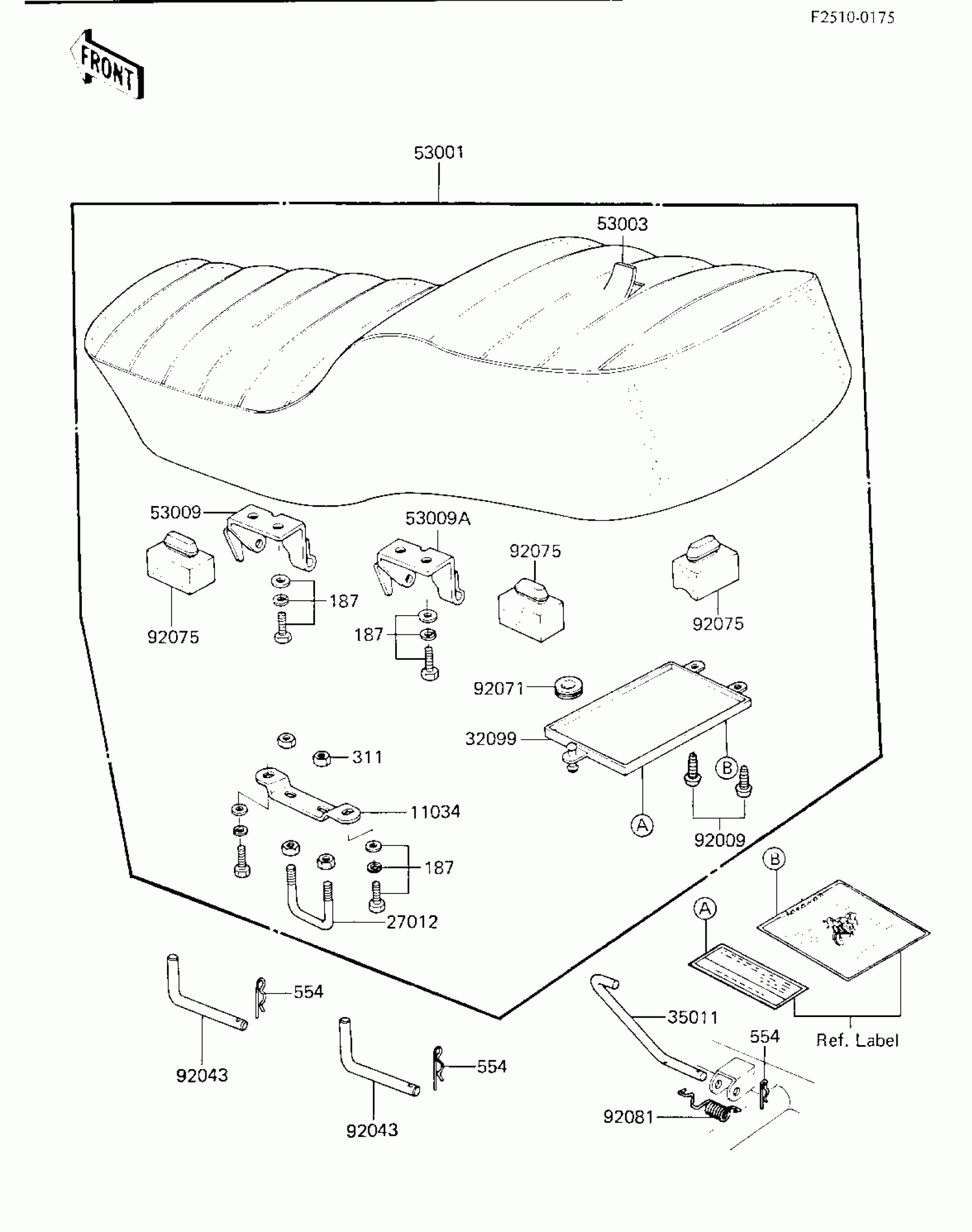

1984 Kawasaki KZ750-K2 (Canada Only) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11034

BRACKET,SEAT CATCH

11034-1329

1
Out of stock

27012

HOOK,SEAT

53056-002

1
Out of stock

32099

CASE,MANUAL

32099-011

1
Out of stock

35011

STAY,SEAT STAND

35011-1034

1
Out of stock

53001

SEAT-ASSY

53001-1163

1
Out of stock

53003

LEATHER,SEAT

53003-1045

1
Out of stock

53009

HINGE

53009-1031

1
Out of stock

53009A

HINGE,SEAT

53009-1033

1
Out of stock

92009

SCREW,TAPPING,5X8

92009-1043

1
Out of stock

92043

PIN,SEAT PIVOT

92043-1021

1
Out of stock

92071

GROMMET

92071-056

1
Out of stock

92075

DAMPER

92075-099

1
Out of stock

92081

SPRING,SEAT HOOK

92081-1053

1
Out of stock

187

BOLT 6X14

187B0614

1
Out of stock

311

NUT 6MM

311B0600

1
Out of stock

554

PIN-SNAP,5MM

554A0500

1
Out of stock
