1979 Kawasaki KZ750-B4 Valves Diagram

← All diagrams

Find the part on the Valves diagram for your 1979 Kawasaki KZ750-B4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

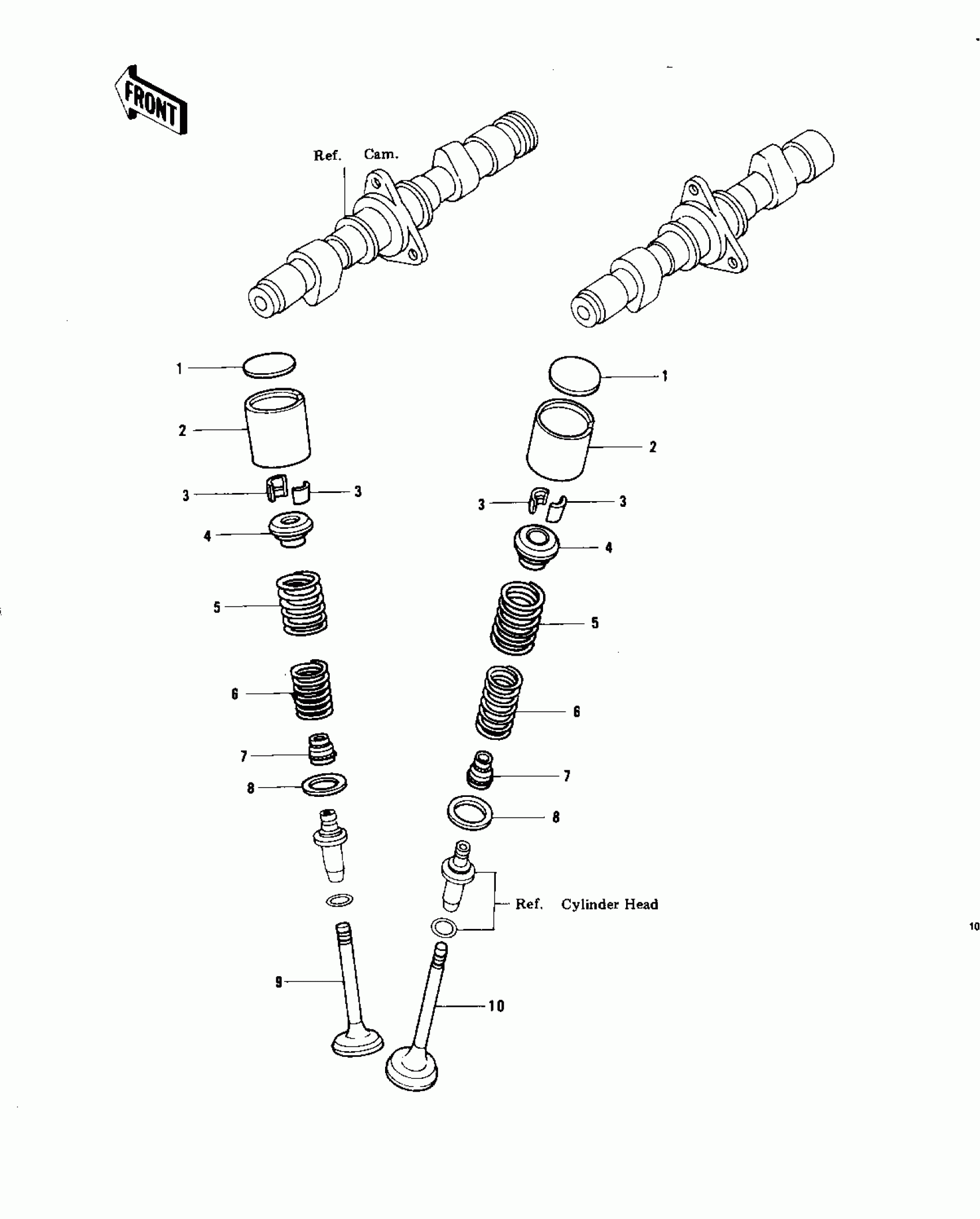

1979 Kawasaki KZ750-B4 Valves Diagram

#

Description
Price
Status
Order Qty

1

SHIM,2.20T

12037-051

Out of stock

1

SHIM,2.25T

12037-052

Out of stock

1

SHIM,2.30T

12037-053

Out of stock

1

SHIM,2.35T

12037-054

Out of stock

1

SHIM,2.40T

12037-055

Out of stock

1

SHIM,2.45T

12037-056

Out of stock

1

SHIM,2.50T

12037-057

Out of stock

1

SHIM,2.55T

12037-058

Out of stock

1

SHIM,2.60T

12037-059

Out of stock

1

SHIM,2.65T

12037-060

Out of stock

1

SHIM,2.70T

12037-061

Out of stock

1

SHIM,2.75T

12037-062

Out of stock

1

SHIM,2.80T

12037-063

Out of stock

1

SHIM,2.85T

12037-064

Out of stock

1

SHIM,2.90T

12037-065

Out of stock

1

SHIM,2.95T

12037-066

Out of stock

1

SHIM,3.00T

12037-067

Out of stock

1

SHIM,3.05T

12037-068

Out of stock

1

SHIM,3.10T

12037-069

Out of stock

1

SHIM,3.15T

12037-070

Out of stock

1

SHIM,3.20T

12037-071

Out of stock

1

SHIM,3.25T

12037-072

Out of stock

1

SHIM,3.30T

12037-073

Out of stock

1

SHIM,3.35T

12037-074

Out of stock

1

SHIM,3.40T

12037-075

Out of stock

2

TAPPET

12032-006

Out of stock

3

COLLAR,VALVE SPRING

12011-003

Out of stock

4

RETAINER,VALVE SPRING

12009-007

Out of stock

5

SPRING,OUTER VALVE

12007-015

Out of stock

6

SPRING,INNER VALVE

12007-016

Out of stock

7

OIL SEAL,VALVE

92049-017

Out of stock

8

WASHER,PLAIN

92022-309

Out of stock

9

VALVE,EXHAUST

12005-007

Out of stock

10

VALVE,INLET

12004-014

Out of stock
