1979 Kawasaki KZ750-B4 Balancer Diagram

← All diagrams

Find the part on the Balancer diagram for your 1979 Kawasaki KZ750-B4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

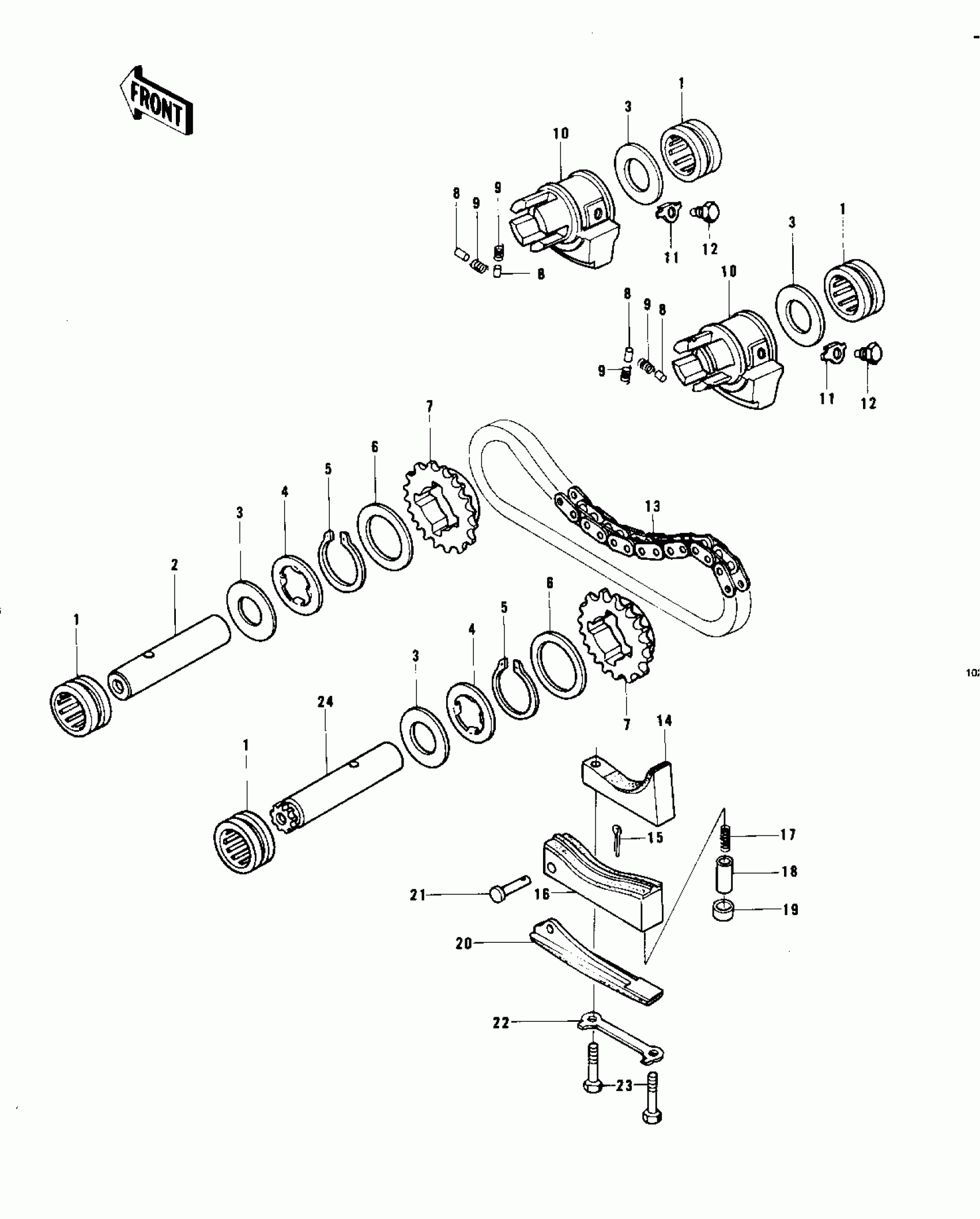

1979 Kawasaki KZ750-B4 Balancer Diagram

#

Description
Price
Status
Order Qty

1

BEARING,NEEDLE

92046-048

Out of stock

2

SHAFT,BALANCER

12052-008

Out of stock

3

WASHER,PLAIN

92022-310

Out of stock

4

WASHER,LOCK

92024-071

Out of stock

5

CIRCLIP, 38MM

480J3800

Out of stock

6

WASHER,PLAIN

92022-316

Out of stock

7

SPROCKET,BALANCER

12046-008

Out of stock

8

PIN,DOWEL

92122-005

Out of stock

9

SPRING,BALANCER

92081-142

Out of stock

10

BALANCER

13041-005

Out of stock

11

WASHER LOCK 10MM

92031-001

Out of stock

12

PIN SELECT FORK GUIDE

92043-016

Out of stock

13

CHAIN,BALANCER

21070-009

Out of stock

14

SLIPPER,CAM CHAIN

12053-022

Out of stock

15

PIN-COTTER,1.6X15

550D1615

Out of stock

16

SLIPPER,CAM CHAIN

12053-013

Out of stock

17

SPRING

92081-146

Out of stock

18

PIN,SLIPPER

92043-122

Out of stock

19

BUSHING,SLIPPER

92028-185

Out of stock

20

SLIPPER,CAM CHAIN

12053-014

Out of stock

21

PIN

92043-120

Out of stock

22

WASHER,LOCK

92031-016

Out of stock

23

BOLT,6X55

110G0655

Out of stock

24

SHAFT BALANCER W-GEAR

12052-007

Out of stock
