1979 Kawasaki KZ750-B4 Engine Covers Diagram

← All diagrams

Find the part on the Engine Covers diagram for your 1979 Kawasaki KZ750-B4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

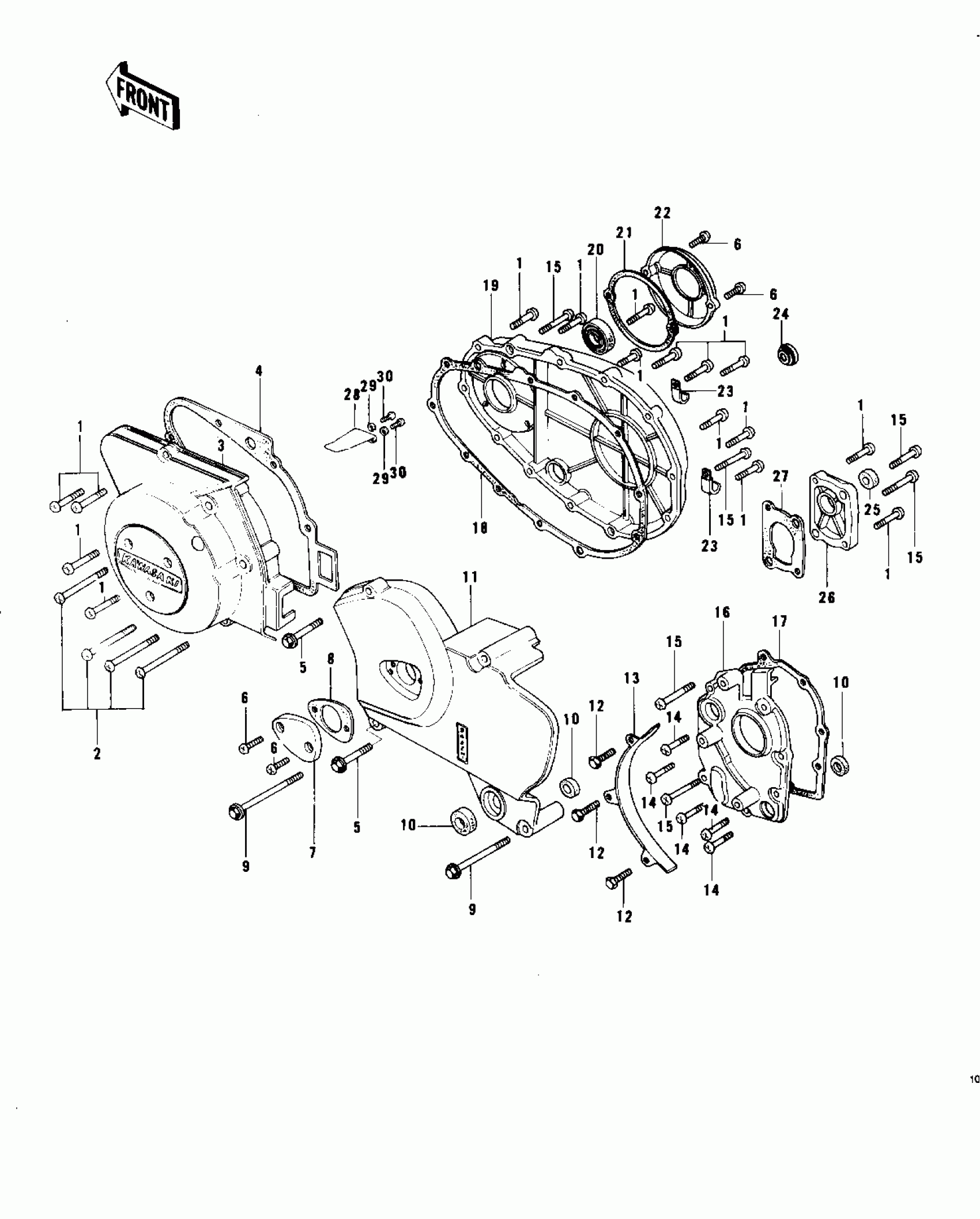

1979 Kawasaki KZ750-B4 Engine Covers Diagram

#

Description
Price
Status
Order Qty

1

SCREW PAN HEAD 6X30

220B0630

Out of stock

2

SCREW-PAN-CROS,6X60

220B0660

Out of stock

3

COVER,L.H ENGINE

14031-092-80

Out of stock

3

COVER,GENERATOR

14031-1044

Out of stock

4

GASKET,GENERATOR COVE

11009-1328

Out of stock

4

GASKET,GENERATOR COVE

11009-1328

Out of stock

5

BOLT, HEX HEAD, 6X34

92003-159

Out of stock

6

SCREW PAN HEAD 6X18

220B0618

Out of stock

7

CAP,CLUTCH ADJUST

14028-008-2H

Out of stock

8

GASKET,CLUTCH ADJUST

14049-007

Out of stock

9

BOLT-FLANGED,6X95

130G0695

Out of stock

9

BOLT-FLANGED,6X95

130G0695

Out of stock

10

SEAL-OIL,TB13225.5

92051-005

Out of stock

11

COVER,ENGINE SPROCKE

14026-032-80

Out of stock

12

BOLT-UPSET 6X14

112B0614

Out of stock

13

UNAVAILABLE IN PRICE BOOK

120531006

Out of stock

13

GUIDE-CHAIN

12053-1006

Out of stock

14

SCREW PAN HEAD 6X22

220B0622

Out of stock

15

SCREW PAN HEAD 6X40

220B0640

Out of stock

16

COVER,MISSION

14024-011

Out of stock

17

GASKET,TRANSMISSION COVER

11060-1056

Out of stock

17

GASKET,TRANSMISSION COVER

11060-1056

Out of stock

18

GASKET,R.H ENGINE COV

14046-033

Out of stock

19

COVER,CLUTCH

14032-1031

Out of stock

19

COVER,CLUTCH

14032-1031

Out of stock

20

SEAL-OIL,S25407

92050-065

Out of stock

21

GASKET,BREAKER COVER

14050-010

Out of stock

22

COVERBRK POINT,BUFF

14027-019-80

Out of stock

23

CLAMP,WIRING HARNESS

21126-008

Out of stock

24

GAUGE,OIL LEVEL

52015-004

Out of stock

25

SEAL-OIL,SC22325

92049-1048

Out of stock

26

COVER,KICK

14032-112-2H

Out of stock

27

GASKET,KICK COVER

14046-034

Out of stock

28

CLAMP,GENERATOR LEAD

92037-1122

Out of stock

29

WASHER SPRING 5MM

461F0500

Out of stock

30

SCREW-PAN-CROS

220B0512

Out of stock
