1979 Kawasaki KZ750-B4 Crankcase Bolt & Stud Pattern Diagram

← All diagrams

Find the part on the Crankcase Bolt & Stud Pattern diagram for your 1979 Kawasaki KZ750-B4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

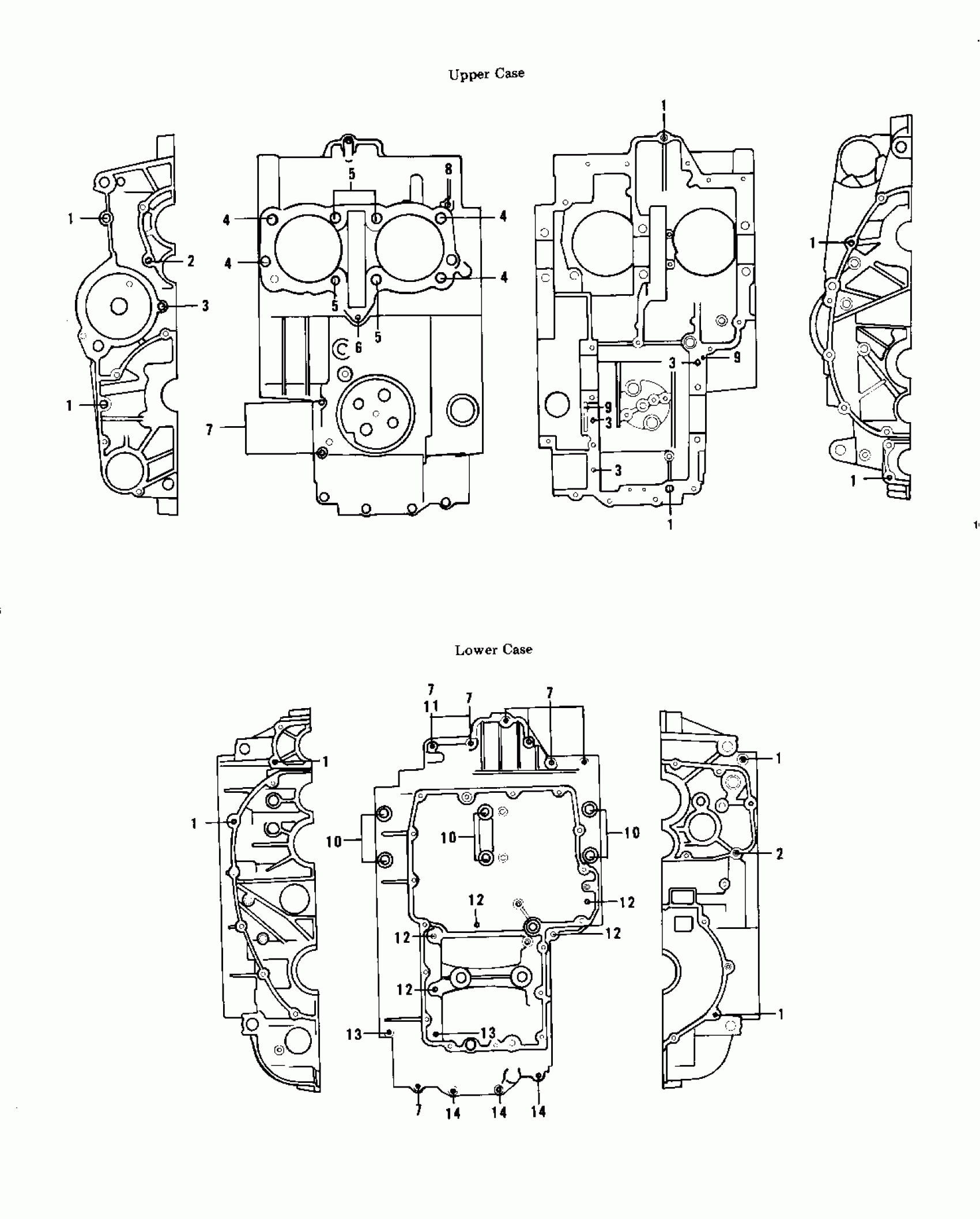

1979 Kawasaki KZ750-B4 Crankcase Bolt & Stud Pattern Diagram

#

Description
Price
Status
Order Qty

1

PIN,DOWEL,10X14

92043-1037

Out of stock

2

PIN,DOWEL,6.3X8X14

92042-007

Out of stock

3

PIN,DOWEL,6X16

92042-016

Out of stock

4

STUD,10X158

92004-1003

Out of stock

4

STUD,10X158

92004-1003

Out of stock

5

STUD,10X167

92004-1002

Out of stock

5

STUD,10X167

92004-1002

Out of stock

6

STUD,6X22

92004-059

Out of stock

7

BOLT,HEX HEAD,6X54

92003-110

Out of stock

8

BOLT,6X105

92003-194

Out of stock

9

NOZZLE,BLACK

92062-011

Out of stock

10

BOLT,10X115

92003-187

Out of stock

11

CLAMP,WIRING HARNESS

21126-008

Out of stock

12

BOLT-FLANGED,6X95

130G0695

Out of stock

13

BOLT-FLANGED,6X70

130G0670

Out of stock

14

BOLT,HEX HEAD,6X41

92003-109

Out of stock
