1979 Kawasaki KZ750-B4 Kickstarter Mechanism Diagram

← All diagrams

Find the part on the Kickstarter Mechanism diagram for your 1979 Kawasaki KZ750-B4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

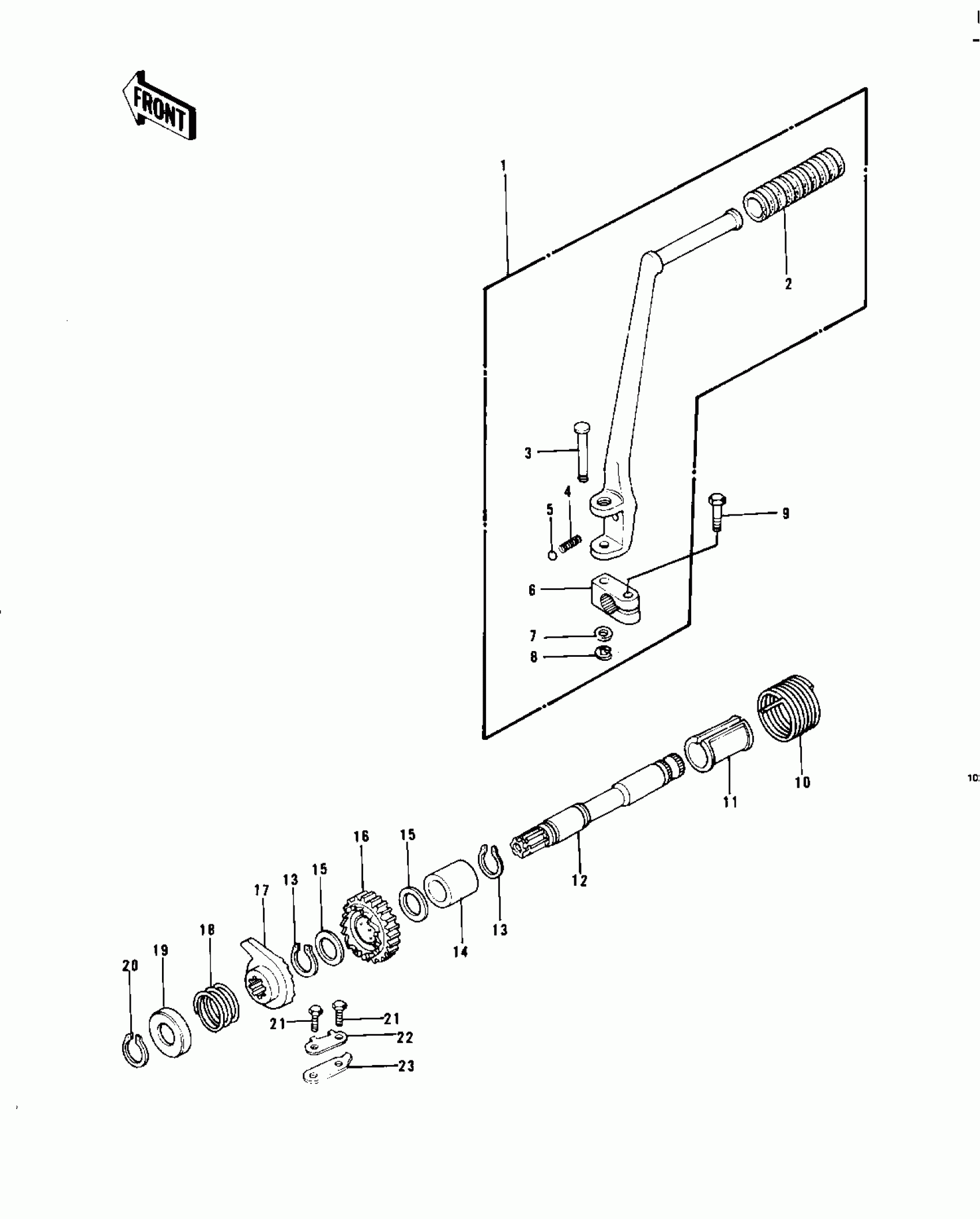

1979 Kawasaki KZ750-B4 Kickstarter Mechanism Diagram

#

Description
Price
Status
Order Qty

1

PEDAL ASSY,KICK

13058-061

Out of stock

2

DAMPER,KICK PEDAL

13063-004

Out of stock

3

PIN-KICK PEDAL

92043-081

Out of stock

4

SPRING,KICK PEDAL

92081-020

Out of stock

5

BALL-STEEL,1/4

600A0800

Out of stock

6

BOSS-KICK PEDAL

13061-010

Out of stock

7

WASHER PLAIN 8MM

410B0800

Out of stock

8

CIRCLIP 5MM

482K5000

Out of stock

9

BOLT-KICK PEDAL

92001-110

Out of stock

10

SPRING,KICKSTARTER

92082-004

Out of stock

11

GUID,KICK SHAFT

13070-005

Out of stock

12

SHAFT,KICKSTARTER

13066-029

Out of stock

12

SHAFT,KICKSTARTER

13066-1004

Out of stock

13

RING-SNAP,20X25.5X1.2

92033-025

Out of stock

14

COLLAR,KICKSHAFT

92028-126

Out of stock

15

WASHER,PLAIN,22MM

92022-207

Out of stock

16

GEAR,KICK

13068-033

Out of stock

16

GEAR,KICKSTARTER

59051-1005

Out of stock

17

RATCHET,KICK SHAFT

13078-011

Out of stock

17

RATCHET,KICK SHAFT

13078-011

Out of stock

18

SPRING RATCHET

92081-104

Out of stock

19

CAP,KICKSTARTER

92102-008

Out of stock

20

CIRCLIP-TYPE-C,19MM

480J1900

Out of stock

21

BOLT-UPSET 6X14

112B0614

Out of stock

21

BOLT-UPSET

112G0614

Out of stock

22

WASHER-LOCK

92024-036

Out of stock

23

STOPPER,KICKSTARTER

13072-012

Out of stock
