1980 Kawasaki KZ650-F1 Meters Diagram

← All diagrams

Find the part on the Meters diagram for your 1980 Kawasaki KZ650-F1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

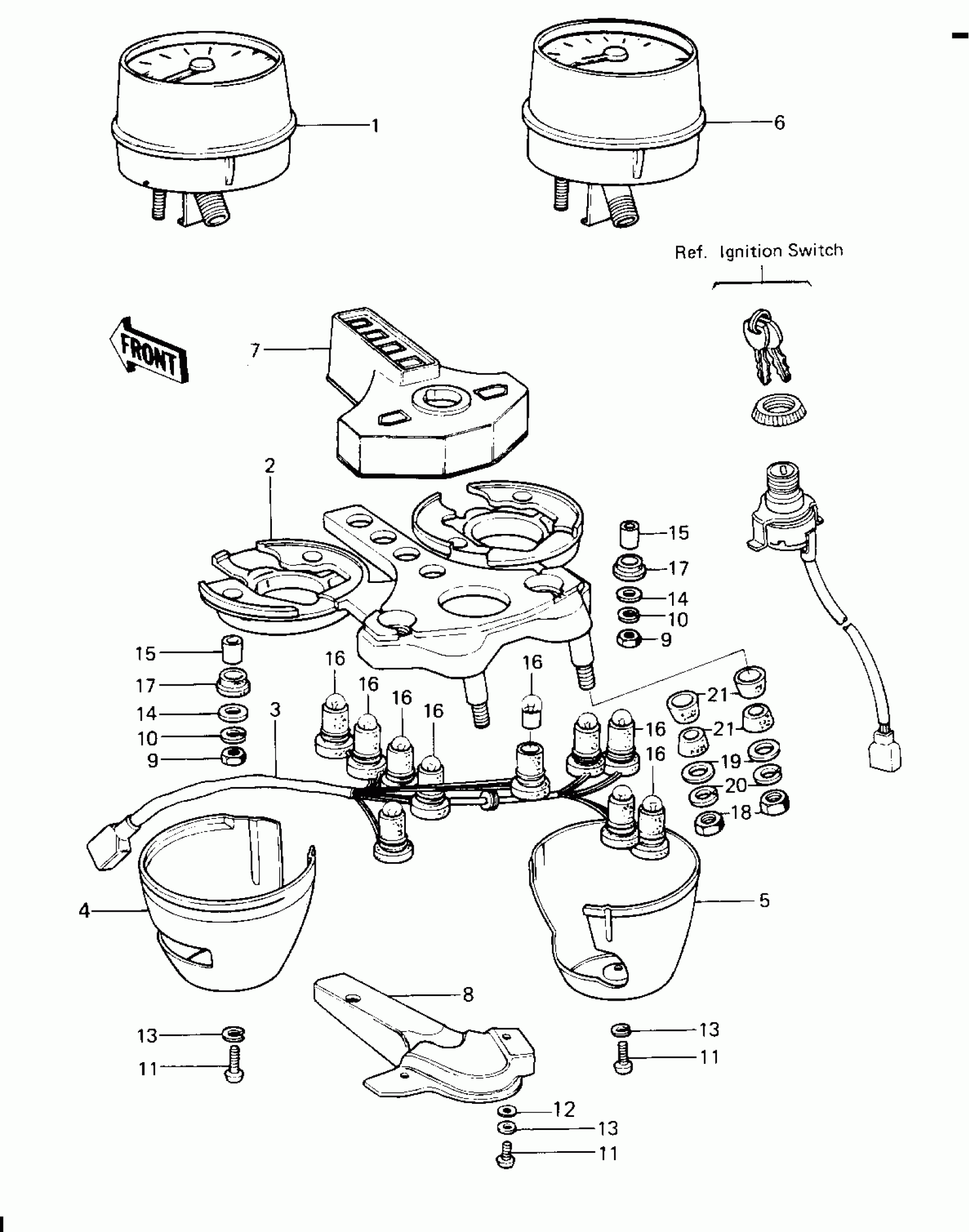

1980 Kawasaki KZ650-F1 Meters Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSY,MPH

25005-1068

1
Out of stock

1

SPEEDOMETER ASSY,KPH (Canada)

25005-1013

1
Out of stock

2

BRACKET,METER

25008-045

1
Out of stock

3

SOCKET,SPEEDOMETER

25011-049

1
Out of stock

4

COVER,SPEEDOMETER

25012-010

1
Out of stock

5

COVER,TACHOMETER

25012-011

1
Out of stock

6

TACHOMETER ASSY

25015-1011

1
Out of stock

7

COVER,METER,INDICATE

25023-015

1
Out of stock

8

COVER,METER BRACKET

25024-006

1
Out of stock

9

NUT-HEX,5MM

312B0500

1
Out of stock

10

WASHER SPRING 5MM

461F0500

1
Out of stock

11

SCREW-PAN-CROS,3X8

220B0308

1
Out of stock

12

WASHER-PLAIN-SMALL,3MM

410B0300

1
Out of stock

13

WASHER SPRING 3MM

461F0300

1
Out of stock

14

WASHER,PLAIN,5MM

92022-241

1
Out of stock

15

COLLAR,METER

92027-211

1
Out of stock

16

BULB 12V 3W

92069-018

1
Out of stock

17

RUBBER,METER

92075-172

1
Out of stock

18

NUT,8MM

311B0800

1
Out of stock

19

WASHER PLAIN 8MM

411B0800

1
Out of stock

20

WASHER SPRING 8MM

461F0800

1
Out of stock

21

DAMPER RUBBER

92075-080

1
Out of stock
