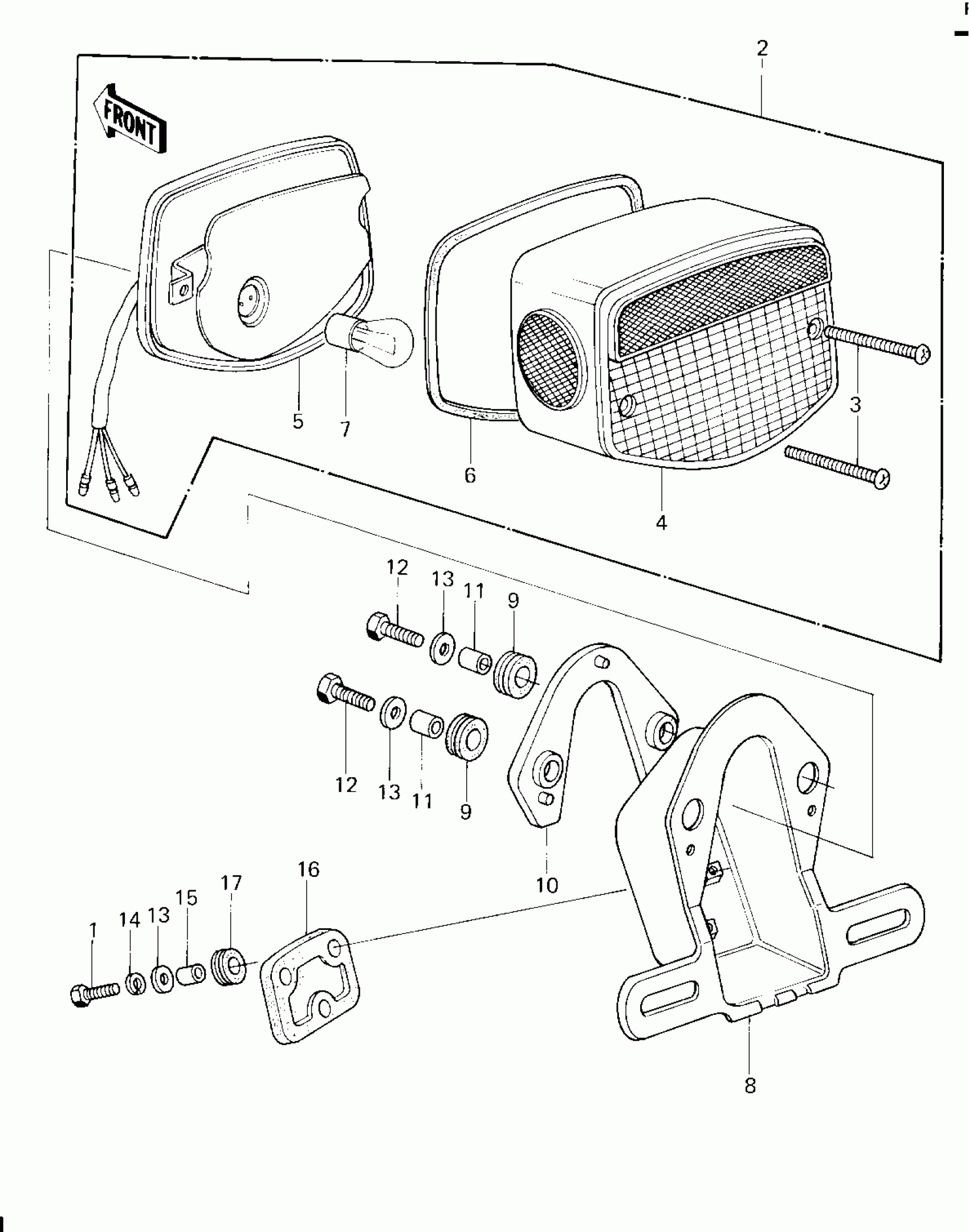

Kawasaki KZ650-F1 TAILLIGHT Diagram

#

Description
Price

1

BOLT-UPSET

112G0625

Unavailable

2

LAMP-TAIL,"220-40781"MARK

23025-064

Unavailable

3

SCREW-PAN-CROS

220R0460

Unavailable

4

LENS,TAIL LAMP

23026-034

$78.61

5

BODY-COMP-TAIL LAMP

23027-041

$130.76

6

GASKET,TAIL LAMP LENS

23028-021

$11.83

7

BULB,12V 27/8W

92069-059

$6.19

8

BRACKET,LICENSE PLATE

23036-051

$81.42

9

DAMPER

23066-020

$14.19

10

DAMPER

23066-023

$16.51

11

COLLAR,6.8X10X8.5

92027-129

$3.81

12

BOLT-UPSET

112G0618

Unavailable

13

WASHER,6.5X20X1.6

92022-125

$1.08

14

WASHER SPRING 6MM

461F0600

Unavailable

15

COLLAR,6.8X10X14.5

92027-156

$3.81

16

DAMPER,TAIL LAMP

35039-004

$17.22

17

DAMPER,FENDER

92075-121

$3.49
