1980 Kawasaki KZ650-F1 Ignition Switch/locks/reflectors Diagram

← All diagrams

Find the part on the Ignition Switch/locks/reflectors diagram for your 1980 Kawasaki KZ650-F1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

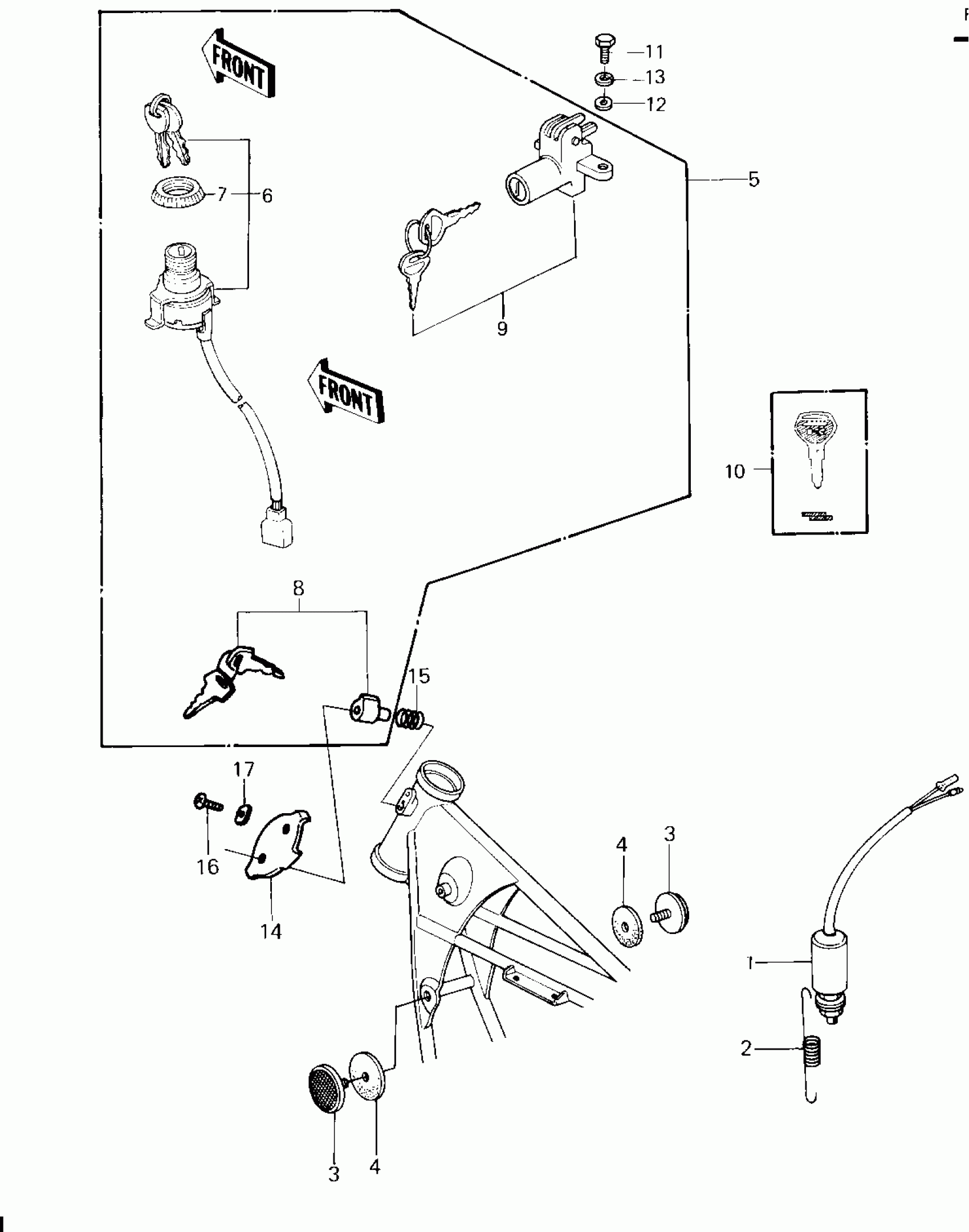

1980 Kawasaki KZ650-F1 Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWITCH-BRAKE LAMP

27010-017

1
Out of stock

2

SPRING BRAKE LAMP SW

27011-009

1
Out of stock

3

REFLECTOR-REFLEX,FR

28012-016

1
Out of stock

4

DAMPER,REFLECTOR

92094-011

1
Out of stock

5

LOCK SET,KZ650B3

27004-5020

1
Out of stock

6

SWITCH ASSY,IGNITION

27005-5007

1
Out of stock

7

NUT,IGNITION SW LOCK

27007-004

1
Out of stock

8

LOCK-ASSY,STEERING

27016-5009

1
Out of stock

9

LOCK-ASSY,SEAT

27016-5010

1
Out of stock

10

KEY-LOCK,BLANK

27008-1103

—
Out of stock

11

BOLT-UPSET 6X14

112B0614

1
Out of stock

12

WASHER PLAIN 6MM

411B0600

1
Out of stock

13

WASHER SPRING 6MM

461F0600

1
Out of stock

14

CAP,STEERING LOCK

11012-1134

1
Out of stock

15

SPRING,STEERING LOCK

27032-001

1
Out of stock

16

SCREW,3.51MM

92008-007

1
Out of stock

17

WASHER,WAVE

92097-003

1
Out of stock
