1980 Kawasaki KZ650-F1 Battery Case/tool Case Diagram

← All diagrams

Find the part on the Battery Case/tool Case diagram for your 1980 Kawasaki KZ650-F1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

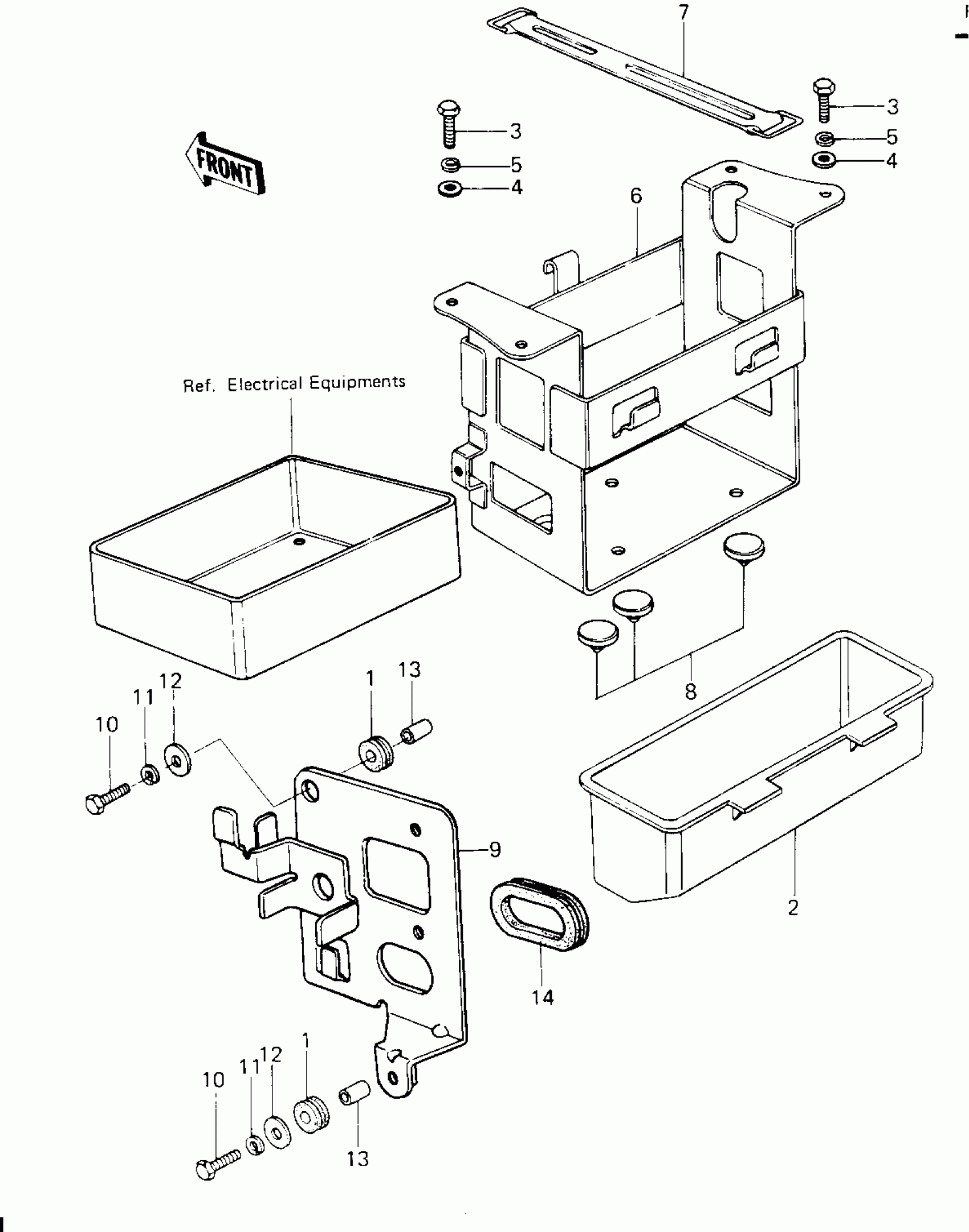

1980 Kawasaki KZ650-F1 Battery Case/tool Case Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER

92075-317

1
Out of stock

2

CASE,TOOL

32098-028

1
Out of stock

3

BOLT-UPSET,6X12

112G0612

1
Out of stock

4

WASHER-PLAIN-SMALL,6MM

410B0600

1
Out of stock

5

WASHER SPRING 6MM

461F0600

1
Out of stock

6

CASE,BATTERY

32097-1005

1
Out of stock

7

BAND,L=146.9

92072-054

1
Out of stock

8

DAMPER,RUBBER

92075-078

1
Out of stock

9

BRACKET,ELECTRO BASE

11036-1089

1
Out of stock

10

BOLT, HEX HEAD, 6X25

110B0625

1
Out of stock

11

WASHER SPRING 6MM

461F0600

1
Out of stock

12

WASHER,7X24X1.6

92022-228

1
Out of stock

13

COLLAR-CLAMP

92027-291

1
Out of stock

14

GROMMET,ELECTO BASE

92071-1007

1
Out of stock
