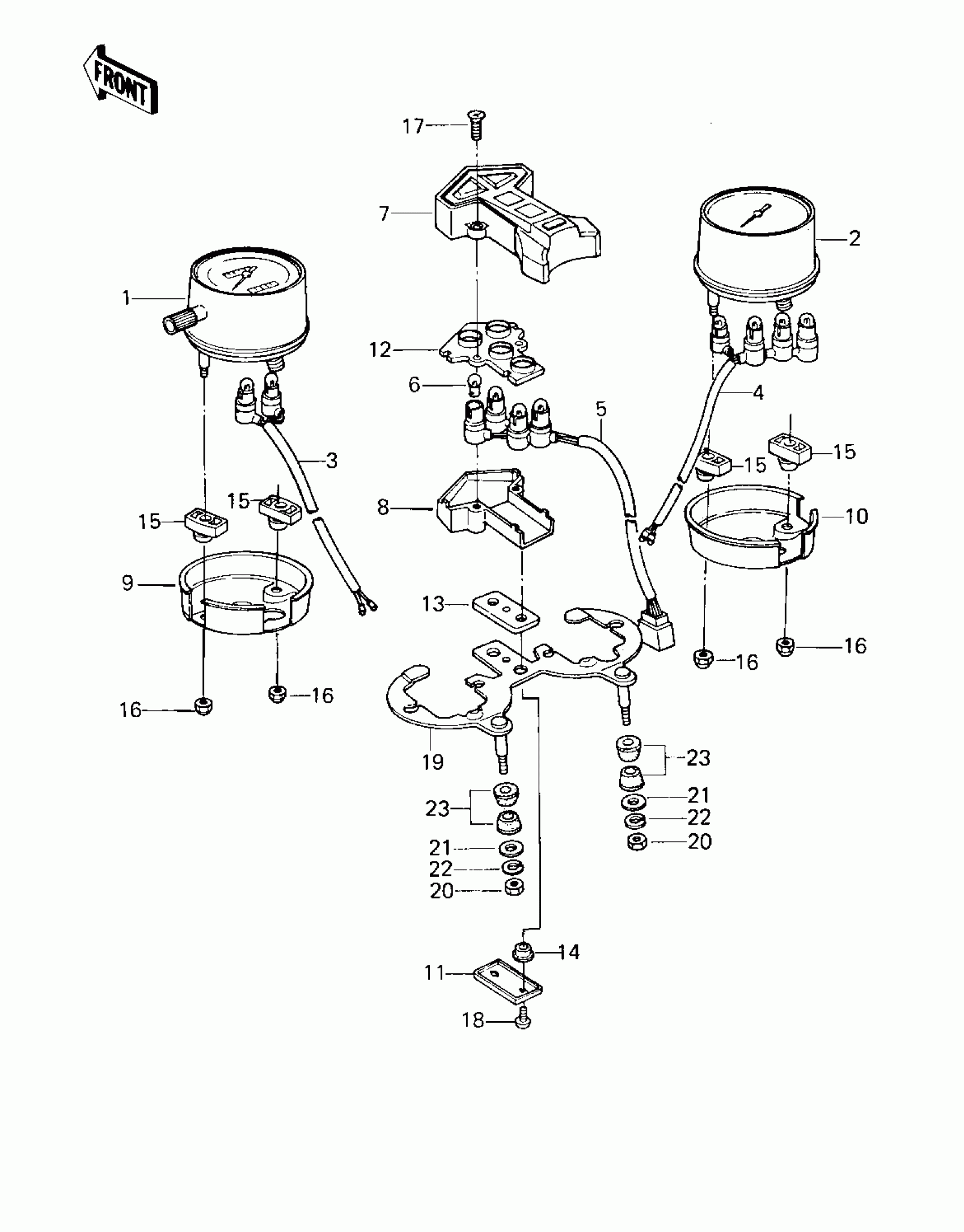

Kawasaki KZ550-A2 METERS ('80-'81 A1/A2) Diagram

#

Description
Price

1

SPEEDOMETER,MPH & KPH

25005-1066

$465.45

1

SPEEDOMETER,KPH (Canada)

25005-1036

Unavailable

2

TACHOMETER,(X1000RPM)

25015-1031

$711.73

2

TACHOMETER,(X1000RPM)

25015-1066

$408.60

3

SOCKET,ASSY,SPEEDOMET

23008-1028

$24.51

4

SOCKET ASSY,TACHOMETR

23008-1029

$109.11

4

SOCKET ASSY,TACHOMETE

23008-1066

$51.15

5

SOCKET ASSY,PILOT BOX

23008-1030

$61.44

6

BULB 12V 3W

92069-018

$3.71

6

BULB 12V 3W

92069-018

$3.71

7

COVER,PILOT BOX,UPPER

25023-1007

Unavailable

8

COVER,PILOT BOX,LOWER

14025-1067

Unavailable

9

COVER,SPEEDOMETER

14025-1068

Unavailable

10

COVER,TACHOMETER

14025-1069

Unavailable

11

COVER,PILOT BOX DAMPR

14025-1070

Unavailable

12

PLATE,SOCKET

13169-1120

Unavailable

13

DAMPER RUBBER-CYL

92075-110

Unavailable

14

DAMPER,METER

25019-023

$3.28

15

DAMPER,SHOCK,METER

92075-1101

$8.39

16

NUT-CAP,5MM

322N0500

Unavailable

17

SCREW,4X10

92009-1039

Unavailable

18

SCREW,TAPPING,4X10

92009-1040

$3.25

19

BRACKET,METER

25008-1011

$104.14

20

NUT-HEX-SMALL,8MM

317B0800

Unavailable

21

WASHER PLAIN 8MM

411B0800

Unavailable

22

WASHER SPRING 8MM

461F0800

Unavailable

23

DAMPER RUBBER

92075-080

$7.89
