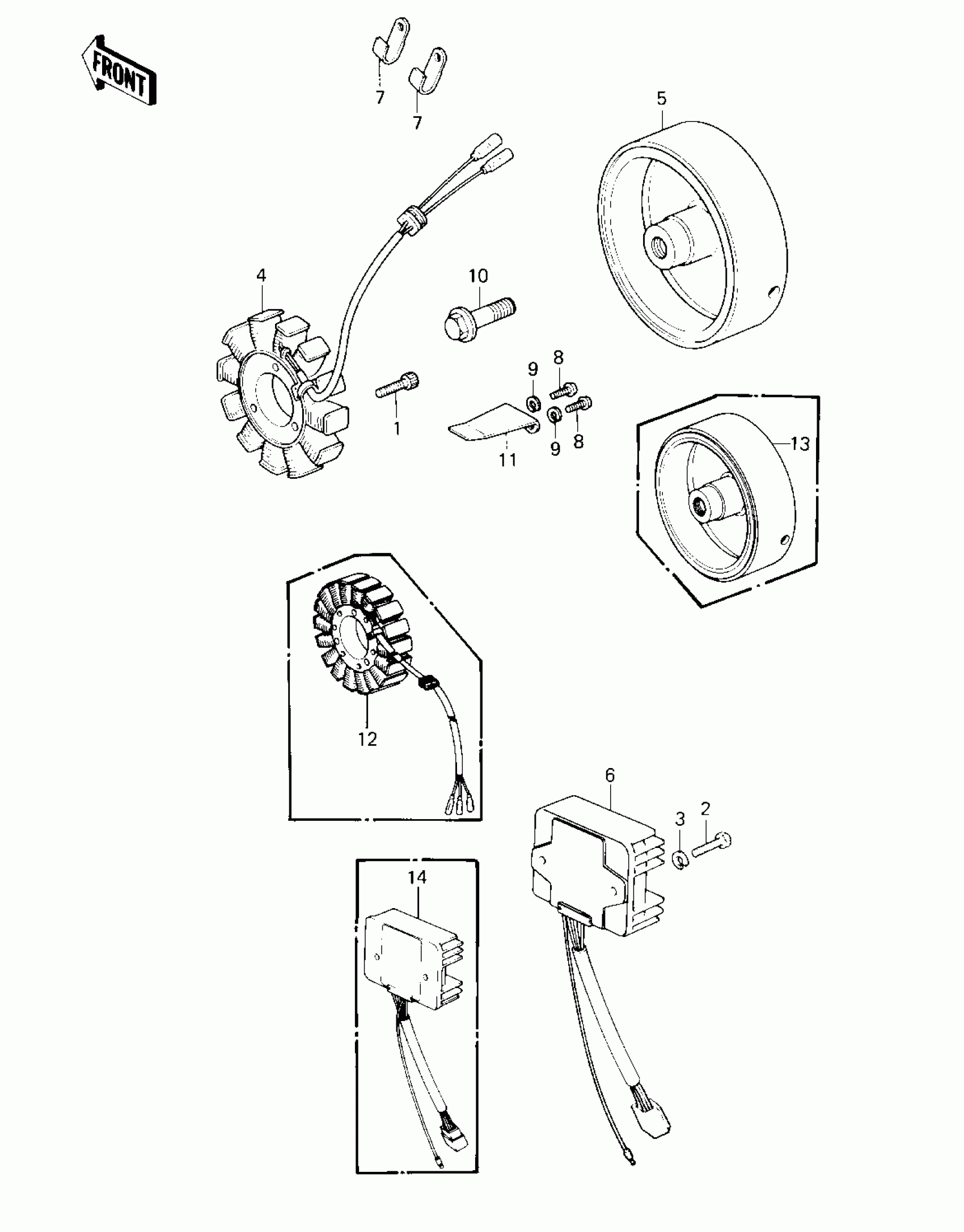

Kawasaki KZ550-A2 GENERATOR/REGULATOR ('80-'81 A1/A2) Diagram

#

Description
Price

1

BOLT-SOCKET,6X28

120P0628

Unavailable

2

BOLT-UPSET

112G0625

Unavailable

3

WASHER SPRING 6MM

461F0600

Unavailable

4

STATOR ASSY,GENERATOR

21003-1013

$881.91

5

ROTOR,GENERATOR

21050-1007

$552.81

6

REGULATOR,VOLTAGE

21066-1011

$285.22

7

CLAMP,WIRING HARNESS

21126-008

$4.73

8

SCREW-PAN-CROS

220B0512

$0.42

9

WASHER SPRING 5MM

461F0500

Unavailable

10

BOLT,10X40

92001-1201

$8.23

11

CLAMP,GENERATOR LEAD

92037-1122

$4.80

12

STATOR,GENERATOR

21003-1038

Unavailable

13

FLYWHEEL,GENERATOR

21050-1019

$659.70

14

REGULATOR,VOLTAGE

21066-1008

Unavailable
