1981 Kawasaki KZ550-A2 Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1981 Kawasaki KZ550-A2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

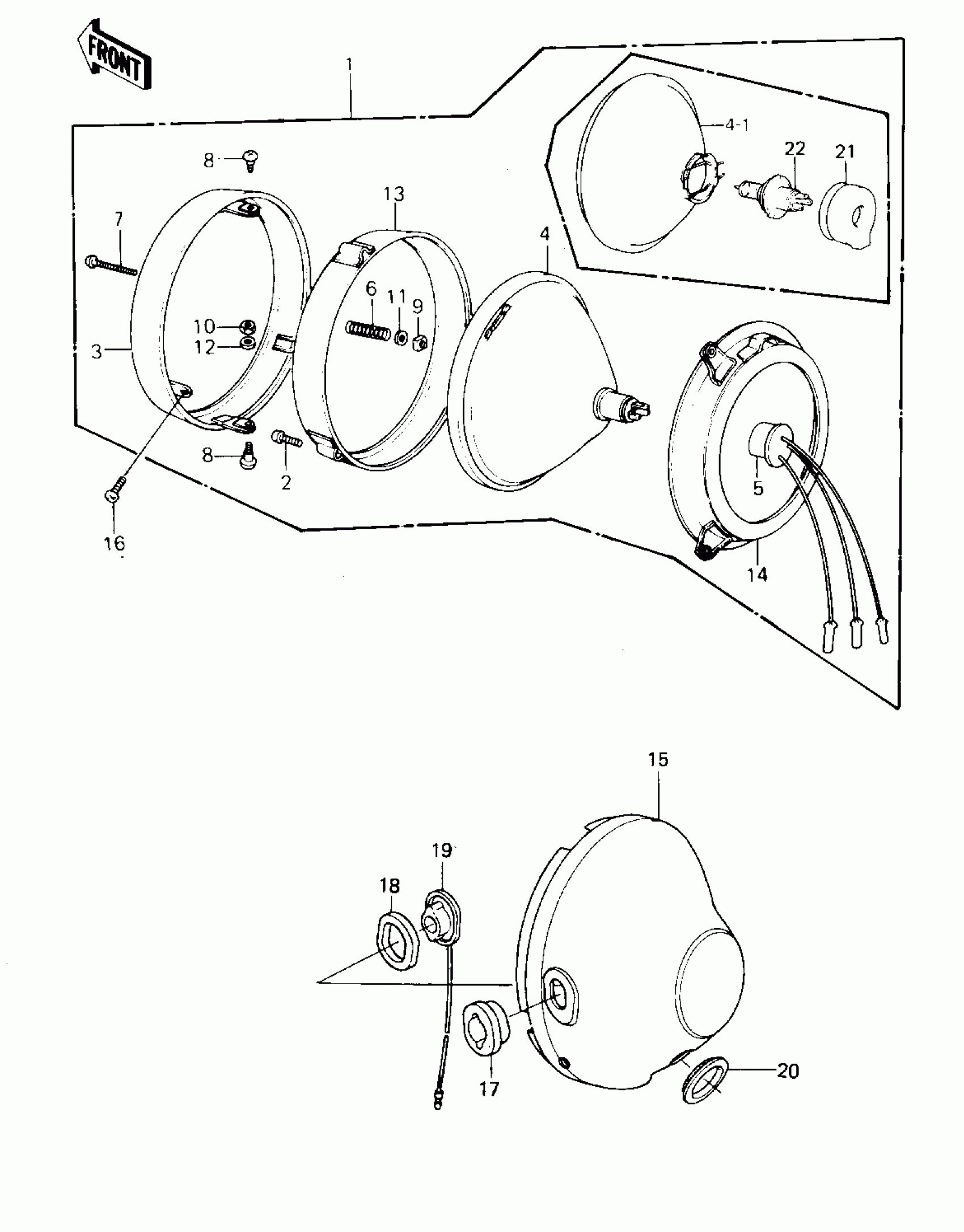

1981 Kawasaki KZ550-A2 Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP UNIT,HEAD

23003-017

1

$409.20

In stock

1

LAMP-HEAD

23004-1040

1

$651.43

In stock

2

SCREW, PAN HEAD 3X12

220B0312A

1
Out of stock

3

RIM,HEAD LAMP

23006-038

1
Out of stock

4

SEALD BEAM UNIT

23007-041

1
Out of stock

4.1

1

$163.61

In stock

5

SOCKET ASSY,HEAD LAMP

23008-037

1
Out of stock

6

1

$3.19

In stock

7

1

$4.17

In stock

8

1

$4.78

In stock

9

1

$3.69

In stock

10

NUT,5MM

23020-023

1
Out of stock

11

WASHER,4.1X8X0.8

23021-004

1
Out of stock

12

WASHER,PLAIN,5MM

23021-012

1
Out of stock

13

1

$45.03

In stock

14

1

$65.88

In stock

15

BODY-COMP-HEAD LAMP

23005-1015-21

1

$235.99

In stock

15

BODY-COMP-HEAD LAMP

23005-1015-21

1

$235.99

In stock

16

SCREW,SPECIAL,5X14

23019-022

1

$1.78

In stock

17

DAMPER RUBBER

23066-015

1
Out of stock

18

DAMPER RUBBER

23066-016

1
Out of stock

19

COLLAR

23076-005

1

$50.07

In stock

20

GROMMET

92071-1008

1
Out of stock

20

GROMMET

92071-1008

1
Out of stock

21

COVER-SEAL

49016-1016

1
Out of stock

22

BULB,12V 60/55W,H4

92069-1002

1
Out of stock
