1981 Kawasaki KZ550-A2 Ignition Switch/locks/reflectors ('80-'8 Diagram

← All diagrams

Find the part on the Ignition Switch/locks/reflectors ('80-'8 diagram for your 1981 Kawasaki KZ550-A2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

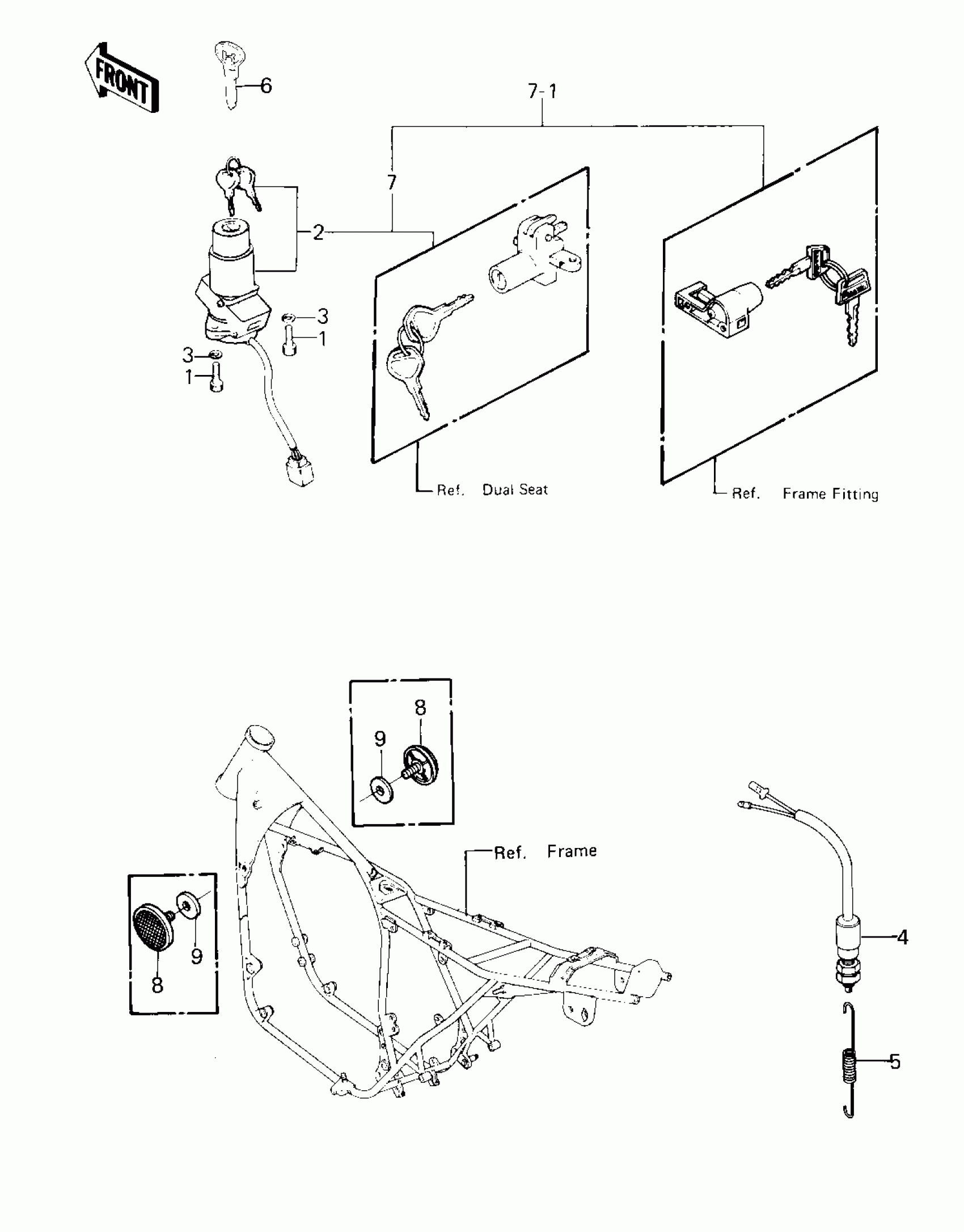

1981 Kawasaki KZ550-A2 Ignition Switch/locks/reflectors ('80-'8 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT-SOCKET,6X16

120Q0616

1
Out of stock

2

SWITCH ASSY,IGNITION

27005-5014

1
Out of stock

3

WASHER SPRING 6MM

461F0600

1
Out of stock

4

SWITCH-BRAKE LAMP

27010-017

1
Out of stock

5

SPRING,BRAKE LAMP SWITCH

92081-1146

1
Out of stock

6

KEY-LOCK,BLANK

27008-1103

1
Out of stock

7

LOCK ASSY,KZ550A1

27004-5016

—
Out of stock

7-1

LOCK ASSY

27004-5099

—
Out of stock

8

REFLECTOR-REFLEX,FR

28012-016

1
Out of stock

9

DAMPER,REFLECTOR

92094-011

1
Out of stock
