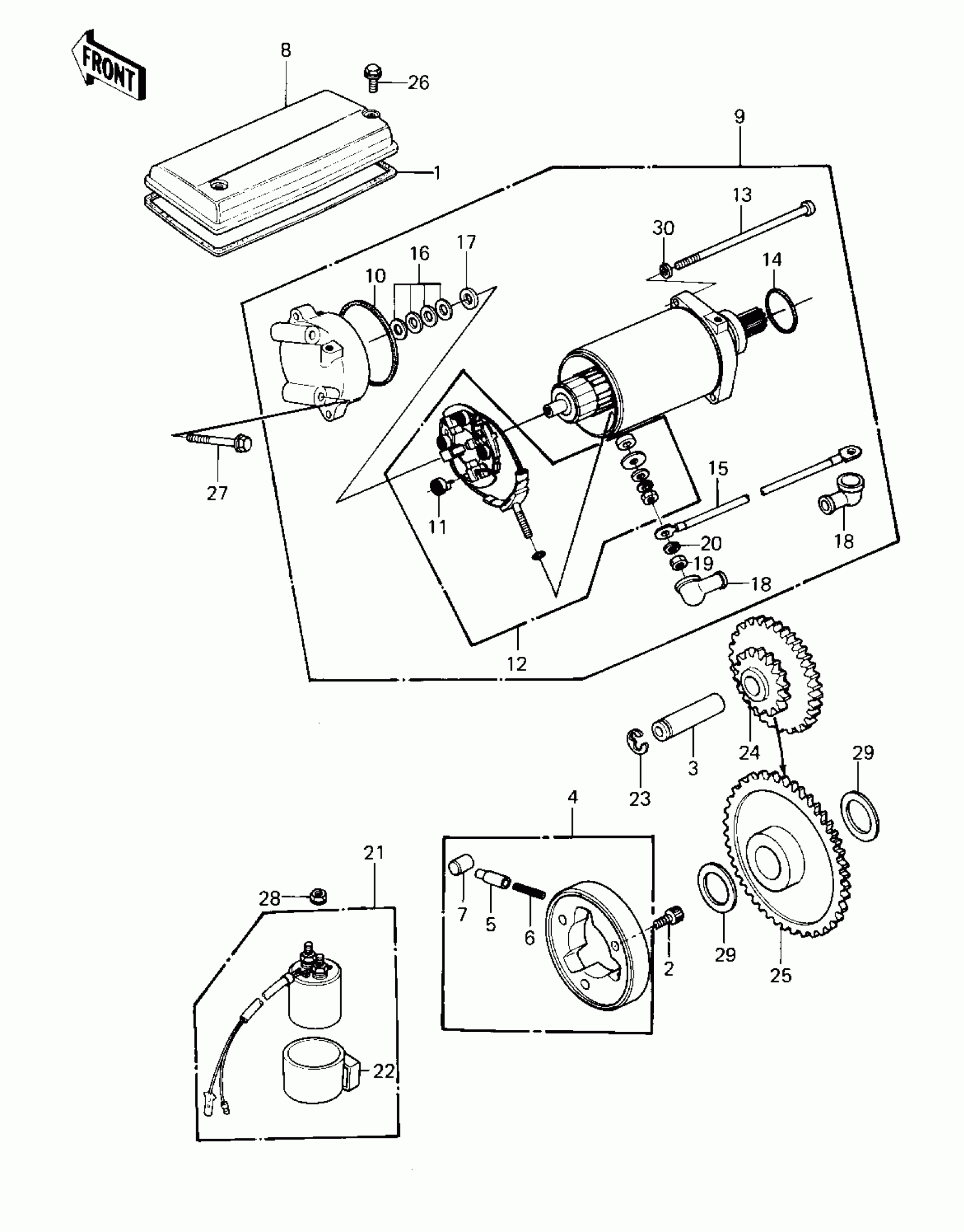

Kawasaki KZ550-A2 STARTER MOTOR/STARTER CLUTCH ('80-'81 A1 Diagram

#

Description
Price

1

GASKET,STARTER COVER

11009-1069

Unavailable

2

BOLT,SOCKET,8X10

92001-1424

$4.42

2

BOLT,SOCKET,8X10

92001-1424

$4.42

3

SHAFT,STARTER IDLE

13107-1006

Unavailable

4

CLUTCH-ASSY-ONEWAY

13193-1002

$111.98

5

PIN

92043-132

$4.67

6

SPRING,COIL

92081-159

$2.72

7

ROLLER

92122-006

$4.67

8

COVER,STARTER MOTOR

14025-1050

Unavailable

9

STARTER-ELECTRIC

21163-1031

$521.21

10

RING-O,64MM

92055-1086

$9.68

11

SPRING,CARBON BRUSH

21040-1002

$10.73

12

BRUSH SET,CARBON

21039-1005

Unavailable

13

SCREW,PAN HEAD,5X110

21015-005

$9.86

14

RING-O,STARTER MOTOR,25MM

21027-004

$7.54

15

WIRE-LEAD,STARTER MOTOR

26011-1073

Unavailable

16

WASHER,9.1X18X0.2

21025-011

$4.67

17

WASHER,9.1X18X0.8

92022-1132

$5.42

18

GROMMET,STARTER TERMINAL

21017-017

$7.18

19

NUT 6MM

312B0600

Unavailable

20

WASHER SPRING 6MM

461F0600

Unavailable

21

SWITCH ASSY,MAGNETIC

21164-005

$162.87

22

DAMPER,MAGNETIC SWITCH

21064-002

Unavailable

23

CIRCLIP 12MM

482K0200

Unavailable

24

GEAR-SPUR,STARTER IDLE

59051-1011

Unavailable

25

GEAR,ONEWAY CLUTCH

16085-1030

$131.93

26

BOLT,6X10

92001-1151

$4.42

27

BOLT,HEX HEAD,6X54

92003-110

Unavailable

28

NUT,FLANGED,6MM

92015-1078

Unavailable

29

SPACER,25X36X3.2

92026-1025

$5.37

30

WASHER SPRING 5MM

461F0500

Unavailable
