1979 Kawasaki KZ400-H1 Turn Signals Diagram

← All diagrams

Find the part on the Turn Signals diagram for your 1979 Kawasaki KZ400-H1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

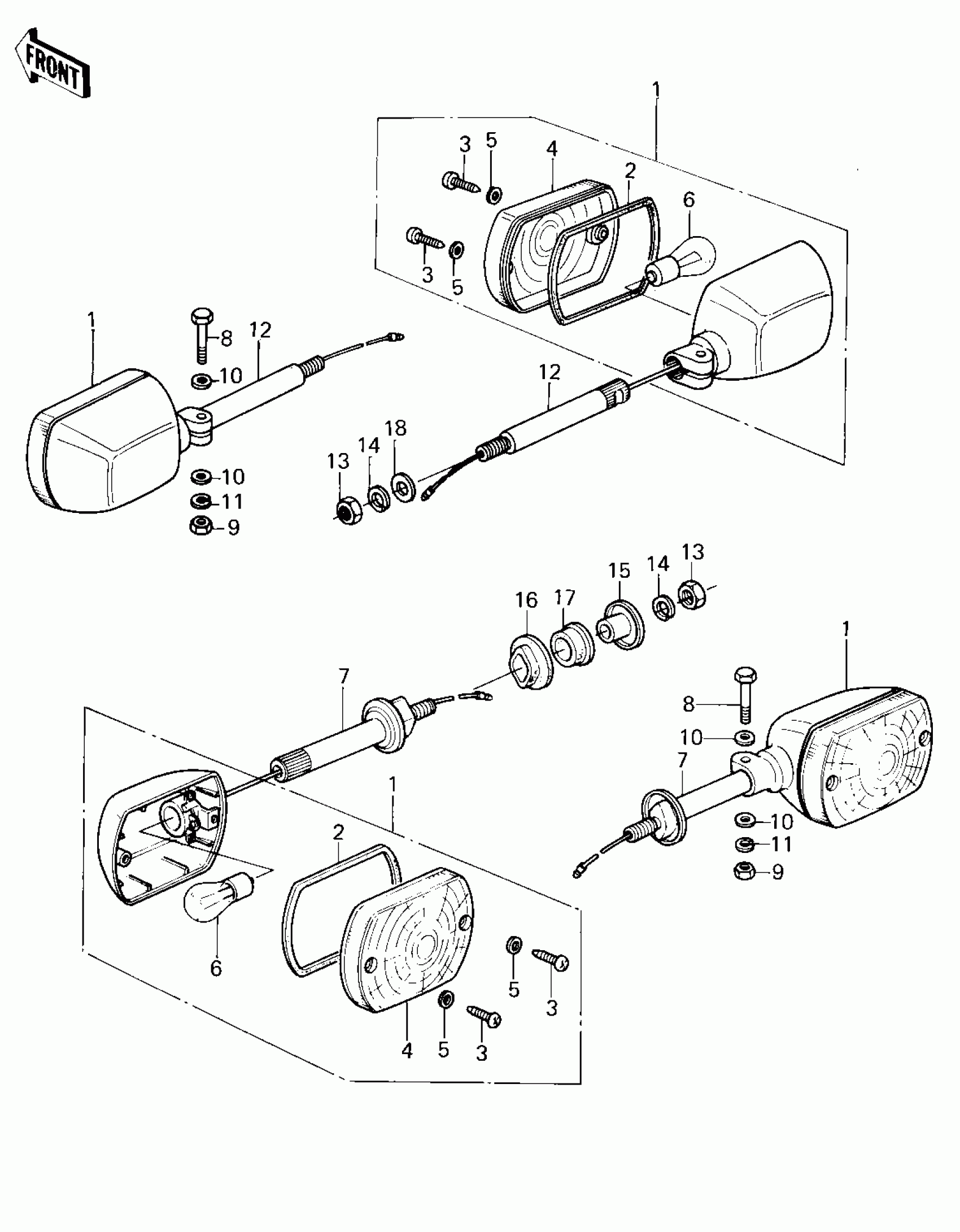

1979 Kawasaki KZ400-H1 Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$152.42

In stock

2

GASKET,TURN SIGNAL

11009-1052

1
Out of stock

3

SCREW-PAN-CROS

220E0412

1
Out of stock

4

LENS-SIGNAL LAMP

23048-1022

1

$11.00

In stock

5

WASHER,PLAIN,4MM

23058-002

1

$2.05

In stock

6

BULB,12V 32CP(23W)

92069-055

1

$4.12

In stock

7

BRACKET-SIGNAL LAMP

23051-1014

1

$39.78

In stock

8

BOLT-UPSET

112G0630

1
Out of stock

9

NUT 6MM

311B0600

1
Out of stock

10

WASHER PLAIN 6MM

411B0600

1
Out of stock

11

WASHER SPRING 6MM

461F0600

1
Out of stock

12

1

$51.85

In stock

13

NUT-HEX-FINE,10MM

315B1000

1
Out of stock

14

WASHER SPRING 10MM

461F1000

1
Out of stock

15

COLLAR

92027-147

1

$12.02

In stock

16

DAMPER,LAMP

92075-128

1

$4.64

In stock

17

1

$4.34

In stock

18

1

$4.25

In stock
