1979 Kawasaki KZ400-H1 Ignition/generator/regulator Diagram

← All diagrams

Find the part on the Ignition/generator/regulator diagram for your 1979 Kawasaki KZ400-H1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

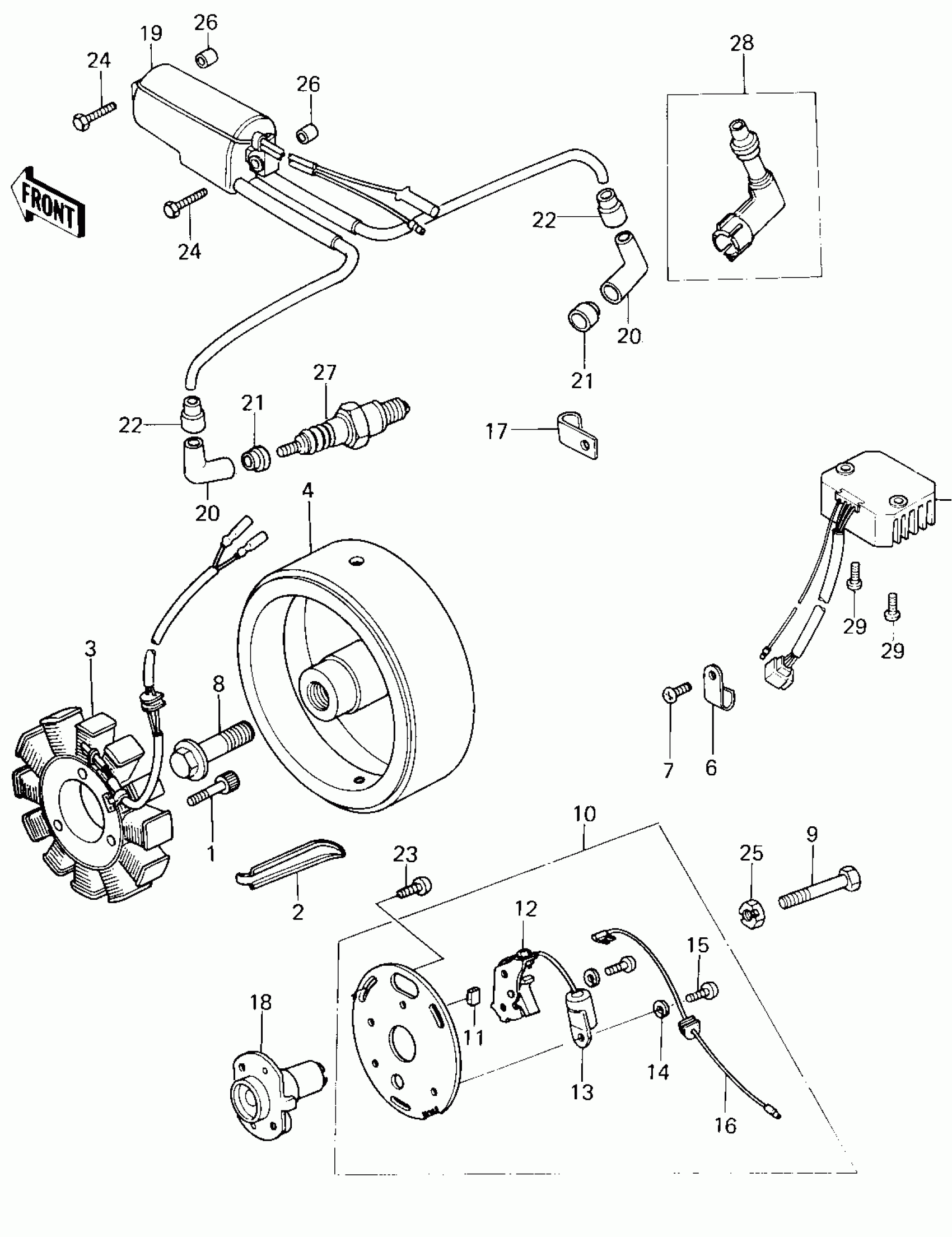

1979 Kawasaki KZ400-H1 Ignition/generator/regulator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT-SOCKET,6X28

120P0628

1
Out of stock

2

PLATE,LEAD CLAMP

13169-1008

1
Out of stock

3

STATOR.ASSY,GENERATER

21003-1009

1
Out of stock

4

FLYWHEEL

21050-1004

1
Out of stock

5

REGULATOR

21066-029

1
Out of stock

6

CLAMP,WIRING HARNESS

21126-008

1
Out of stock

7

SCREW PAN HEAD 6X10

220B0610

1
Out of stock

8

BOLT,10X40

92002-1303

1
Out of stock

9

BOLT,8X63

92001-1397

1
Out of stock

10

BREAKER ASSY,CONTACT

21008-1014

1
Out of stock

11

BRUSH,OIL

21019-005

1
Out of stock

12

BREAKER,CONTACT

21008-027

1
Out of stock

13

CONDENSER

21013-1004

1
Out of stock

14

WASHER SPRING 6MM

461F0600

1
Out of stock

15

SCREW PAN HEAD 4X6

220B0406

1
Out of stock

16

WIRE,LEAD,BREAKER

26011-1030

1
Out of stock

17

CLAMP,WIRING HARNESS

21126-008

1
Out of stock

18

GOVERNOR,BREAKER

21148-1002

1
Out of stock

19

COIL-IGNITION

21121-1174

1
Out of stock

20

CAP-SPARK PLUG,RTFM20

21130-1007

1
Out of stock

21

GROMMET,PLUG CAP

21131-004

1
Out of stock

22

GROMMET,HIGH TENSION

21132-005

1
Out of stock

23

SCREW-PAN-CROS

220B0512

1
Out of stock

24

BOLT, IGNITION COIL

92003-170

1
Out of stock

25

WASHER,BREAKER GOVERNOR

92022-244

1
Out of stock

26

COLLAR,IGNITION COIL

92027-276

1
Out of stock

27

SPARK PLUG B7ES

B7ES

1
Out of stock

28

CAP-ASSY-PLUG

21160-005

1
Out of stock

29

SCREW-PAN-CROS,6X14

220B0614

1
Out of stock
