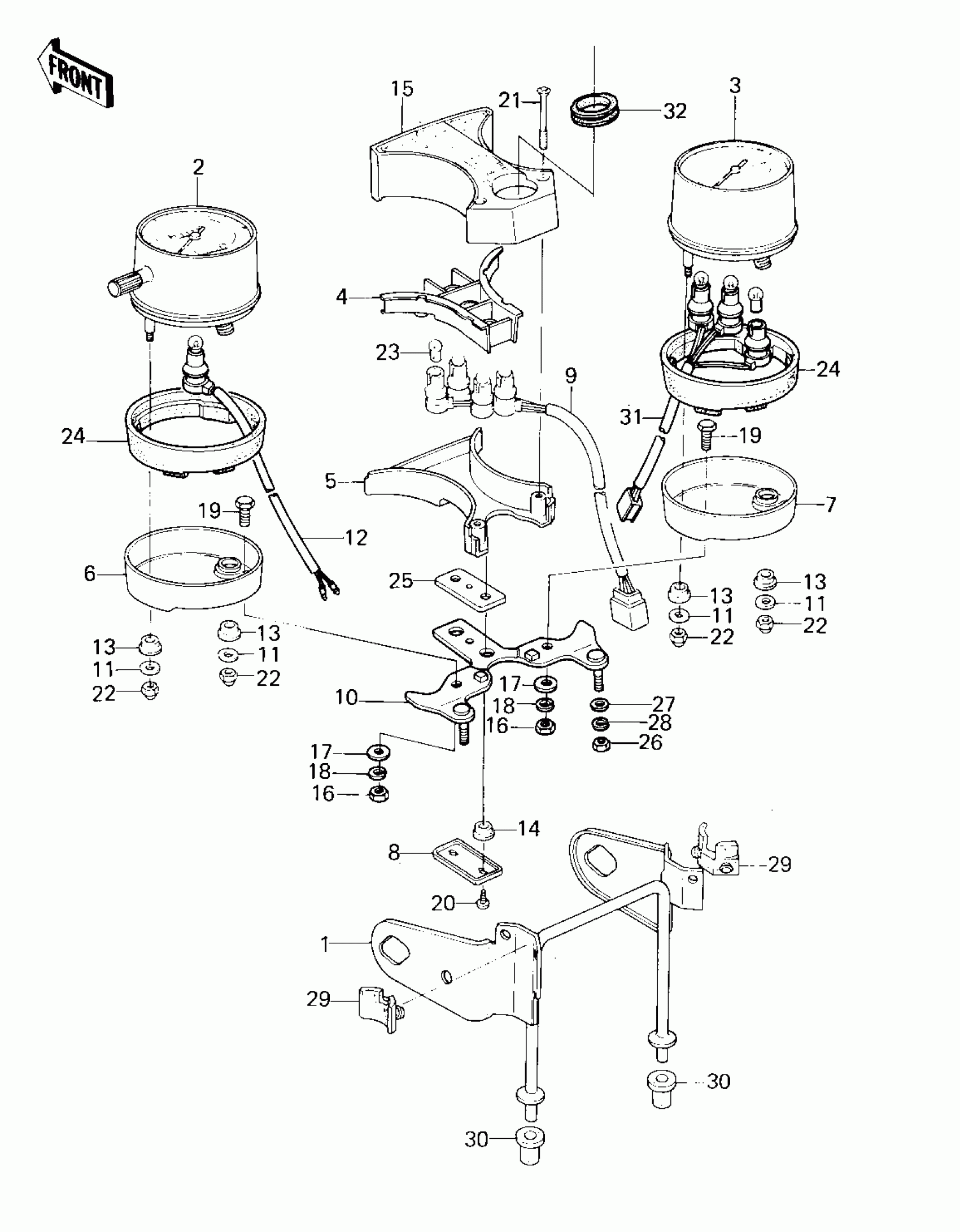

Kawasaki KZ400-H1 METERS Diagram

#

Description
Price

1

BRACKET,HEAD LAMP

11034-1535

Unavailable

2

SPEEDOMETER,MPH

25005-1040

$481.60

2

SPEEDOMETER,KPH (Canada)

25005-1053

$424.12

3

TACHOMETER,X1000R/MIN

25015-1068

$415.95

4

PLATE,SOCKET

13169-1133

Unavailable

5

COVER,PILOT BOX,LWR

14025-1093

Unavailable

6

COVER,SPEEDOMETER

14025-1094

Unavailable

7

COVER,TACHOMETER

14025-1095

Unavailable

8

COVER,PILOT BOX,DAMPER

14025-1096

Unavailable

9

SOCKET ASSY,PILOT BOX

23008-1031

$51.85

10

BRACKET-METER

25008-1021

$62.23

11

WASHER,5.2X16X1.2

25009-004

$2.88

12

SOCKET ASSY

25010-022

$33.63

13

DAMPER,METER

25019-013

$4.33

14

DAMPER,METER

25019-023

$3.31

15

COVER,PILOT BOX,UPP

25023-1008

Unavailable

16

NUT,8MM

311B0800

Unavailable

17

WASHER PLAIN 8MM

411B0800

Unavailable

18

WASHER SPRING 8MM

461F0800

Unavailable

19

BOLT,8X16

92001-1154

$2.42

20

SCREW,TAPPING,4X10

92009-1040

$3.25

21

SCREW-CSK-RD-CROS,4X45

222C0445

Unavailable

22

NUT-CAP,5MM

322N0500

Unavailable

23

BULB 12V 3W

92069-018

$3.71

24

DAMPER,METER

92075-1498

Unavailable

25

DAMPER,PILOT BOX

92075-1136

$5.49

26

NUT 6MM

311B0600

Unavailable

27

WASHER PLAIN 6MM

411B0600

Unavailable

28

WASHER SPRING 6MM

461F0600

Unavailable

29

DAMPER,BRACKET

92075-1106

Unavailable

30

DAMPER,BRACKET

92075-1107

Unavailable

31

SOCKET ASSY,TACHOMETR

23008-1049

$34.31

32

DAMPER,PILOT BOX

92075-1204

Unavailable
