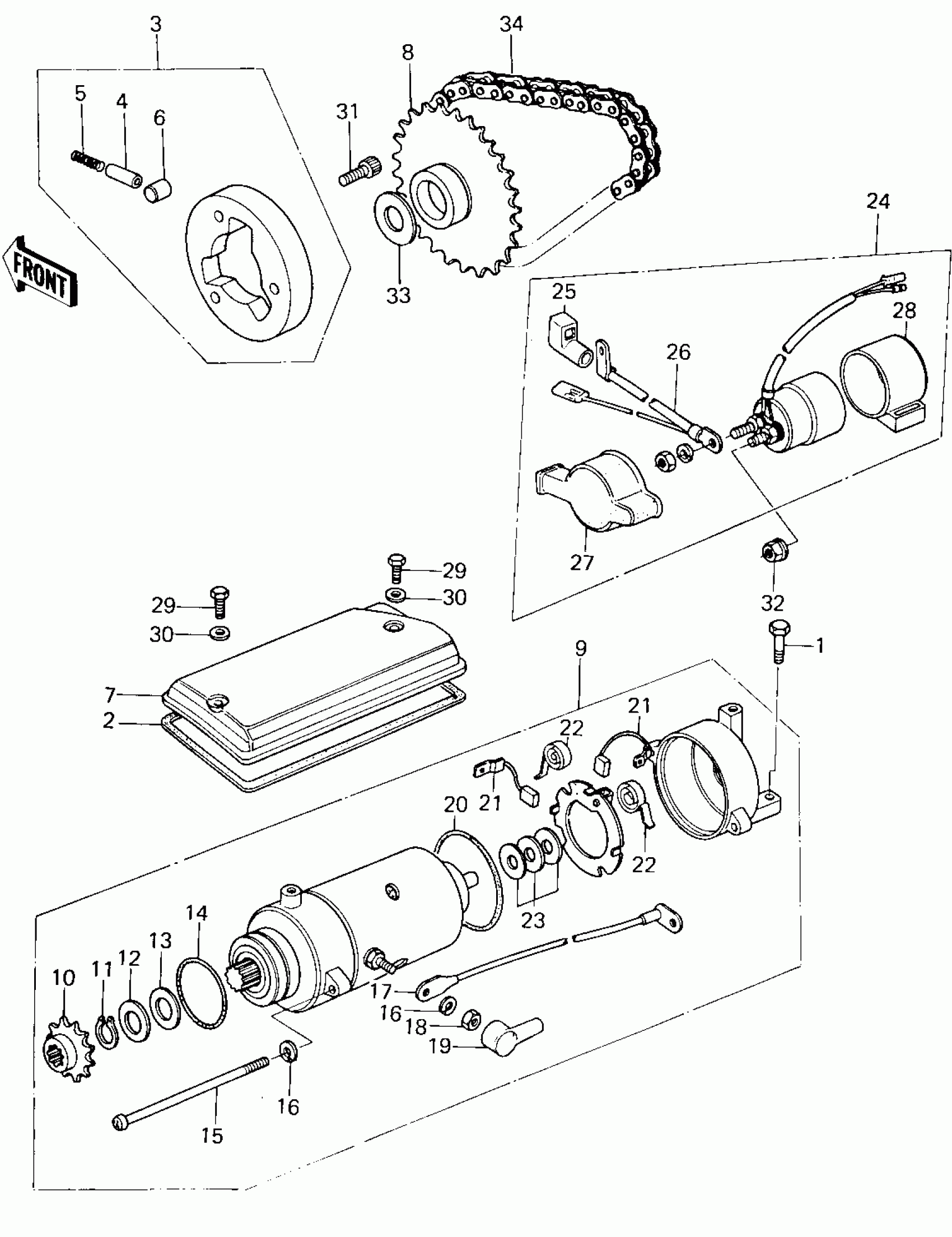

Kawasaki KZ400-H1 STARTER MOTOR/STARTER CLUTCH Diagram

#

Description
Price

1

BOLT-UPSET

112G0625

Unavailable

2

GASKET,STARTER COVER

11009-1006

Unavailable

3

CLUTCH ASSY,STARTER

13193-1001

Unavailable

4

PIN

92043-087

$9.70

5

SPRING

92081-110

$3.63

6

ROLLER,15X13

92122-004

$8.42

7

COVER,STARTER

14025-1284

Unavailable

8

SPROCKET,ONWAY CLUTCH

12046-1030

Unavailable

9

MOTOR ASSY,STARTER

21163-1011

Unavailable

10

SPROCKET-ASSY

21053-002

Unavailable

11

CIRCLIP-TYPE-C,14MM

480J1400

$3.81

12

WASHER,PLAIN,14MM

21025-008

Unavailable

13

WASHER PLAIN 14MM

21025-009

Unavailable

14

RING-O,42.8MM

21027-005

Unavailable

15

SCREW PAN HEAD 6X110

220B06110

Unavailable

16

WASHER SPRING 6MM

461F0600

Unavailable

17

WIRE STRTER MOT LEAD

26010-035

$46.52

18

NUT 6MM

312B0600

Unavailable

19

CAP,STARTING MOTOR

21017-020

$7.85

20

"0" RING,62MM

21027-006

Unavailable

21

BRUSH CARBON

21039-004

$42.48

22

SPRING CARBON BRUSH

21040-004

Unavailable

23

WASHER,PLAIN,9MM

21025-007

$2.85

24

SWITCH,MAGNETIC

27010-1040

$195.26

25

CAP,MAG SWTCH TERMNL

21017-021

$12.27

26

WIRE LEAD MAG SWITCH

26011-1107

$28.95

27

CAP,MAGNETIC SWITCH

21141-004

Unavailable

28

DAMPER,MAGNETIC SWITCH

21064-002

Unavailable

29

BOLT (6X10)

110R0610

$2.69

30

WASHER,PLAIN,6MM

410D0600

Unavailable

31

BOLT-SOCKET,8X16

120P0816

Unavailable

32

NUT,LOCK 6MM

92017-014

$5.74

33

SPACER,25X40X1

92026-1004

Unavailable

34

CHAIN,DYNAMO

92057-1009

$50.46
