1979 Kawasaki KZ400-H1 Chassis Electrical Equipment Diagram

← All diagrams

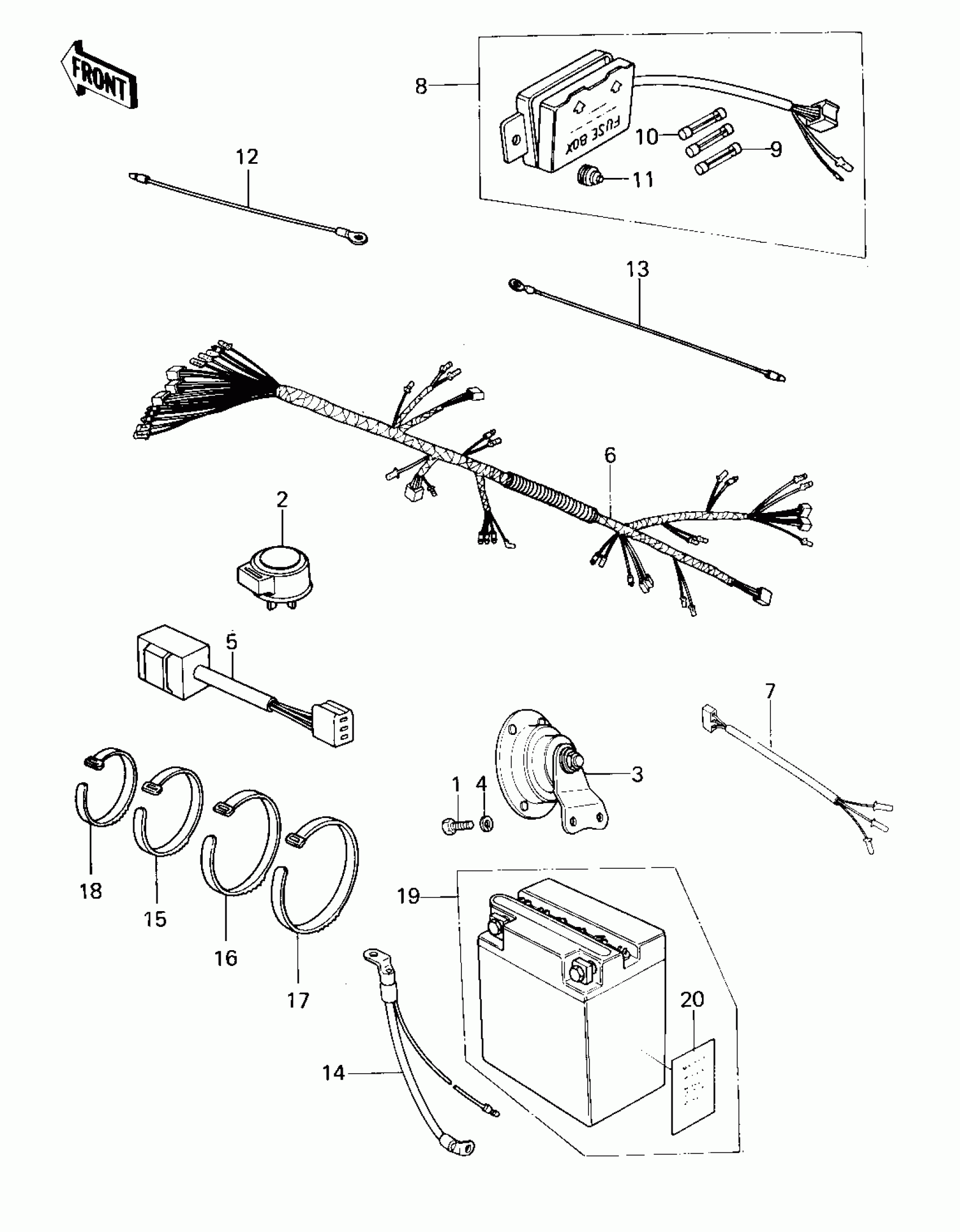

Find the part on the Chassis Electrical Equipment diagram for your 1979 Kawasaki KZ400-H1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Kawasaki KZ400-H1 Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT-SMALL-UPSET,8X16

115G0816

1
Out of stock

2

RELAY-ASSY,TURN SIGNAL

27002-011

1
Out of stock

3

HORN

27003-1019

1

$148.24

In stock

4

WASHER SPRING 8MM

461F0800

1
Out of stock

5

1

$68.10

In stock

6

HARNESS,MAIN

26001-1127

1

$202.00

In stock

7

WIRING HARNESS,TL LMP

26002-046

1
Out of stock

8

FUSE-ASSY

26004-035

1
Out of stock

9

FUSE,10A,L=25

26006-003

1

$3.74

In stock

10

FUSE,20A,L=25

26006-005

1

$4.02

In stock

11

DAMPER,FUSE

92075-279

1
Out of stock

12

1

$6.83

In stock

13

WIRE-LEAD,L=285

26011-095

1

$11.12

In stock

14

WIRE LEAD,BATTERY GRD

26011-1022

1
Out of stock

15

BAND,L=123

92072-030

1

$3.97

In stock

16

BAND,L=149

92072-031

1

$3.97

In stock

17

BAND,L=218

92072-032

1

$3.97

In stock

18

BAND,L=95

92072-067

1
Out of stock

19

FB BAT FB12A-A

26012-1004

1

$96.88

In stock

20

LABEL-WARNING,BATTERY

56040-1036

1
Out of stock
