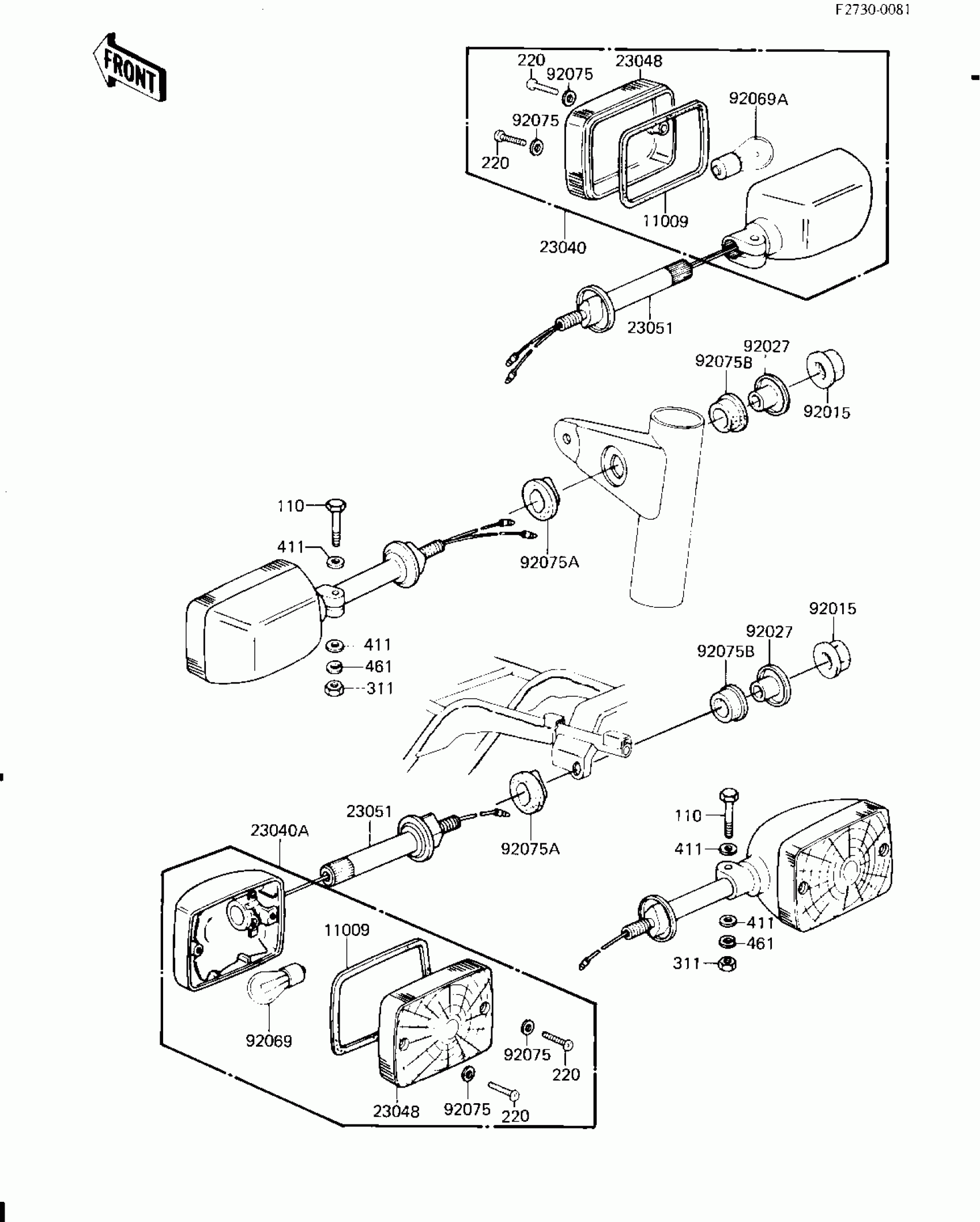

Kawasaki KZ1300-A4 TURN SIGNALS Diagram

Description

Price

11009

GASKET,TURN SIGNAL

11009-1102

Unavailable

23040

LAMP ASSY,TURN SIGNAL

23040-1021

$105.15

23040A

LAMP,ASSY,TURN SIGNAL

23040-1022

$137.76

23048

LENS SIGNAL LAMP FR

23048-1020

Unavailable

23051

BRACKET,TURN SIGNAL

23051-1023

Unavailable

92015

NUT,FLANGED,10MM

92015-1428

$3.81

92027

COLLAR

92027-147

$11.53

92069

BULB,12V 32CP(23W)

92069-055

$3.95

92069A

BULB,12V 32/3CP(23/8W)

92069-060

$7.39

92075

WASHER,PLAIN,4MM

23058-002

$1.77

92075A

DAMPER,LAMP

92075-128

$4.42

92075B

DAMPER RUBBER,SIG LM

92075-158

$4.15

110

BOLT-UPSET

112G0630

Unavailable

220

SCREW,PAN HEAD,4X16

220E0416A

$4.59

311

NUT 6MM

311B0600

Unavailable

411

WASHER PLAIN 6MM

411B0600

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable
