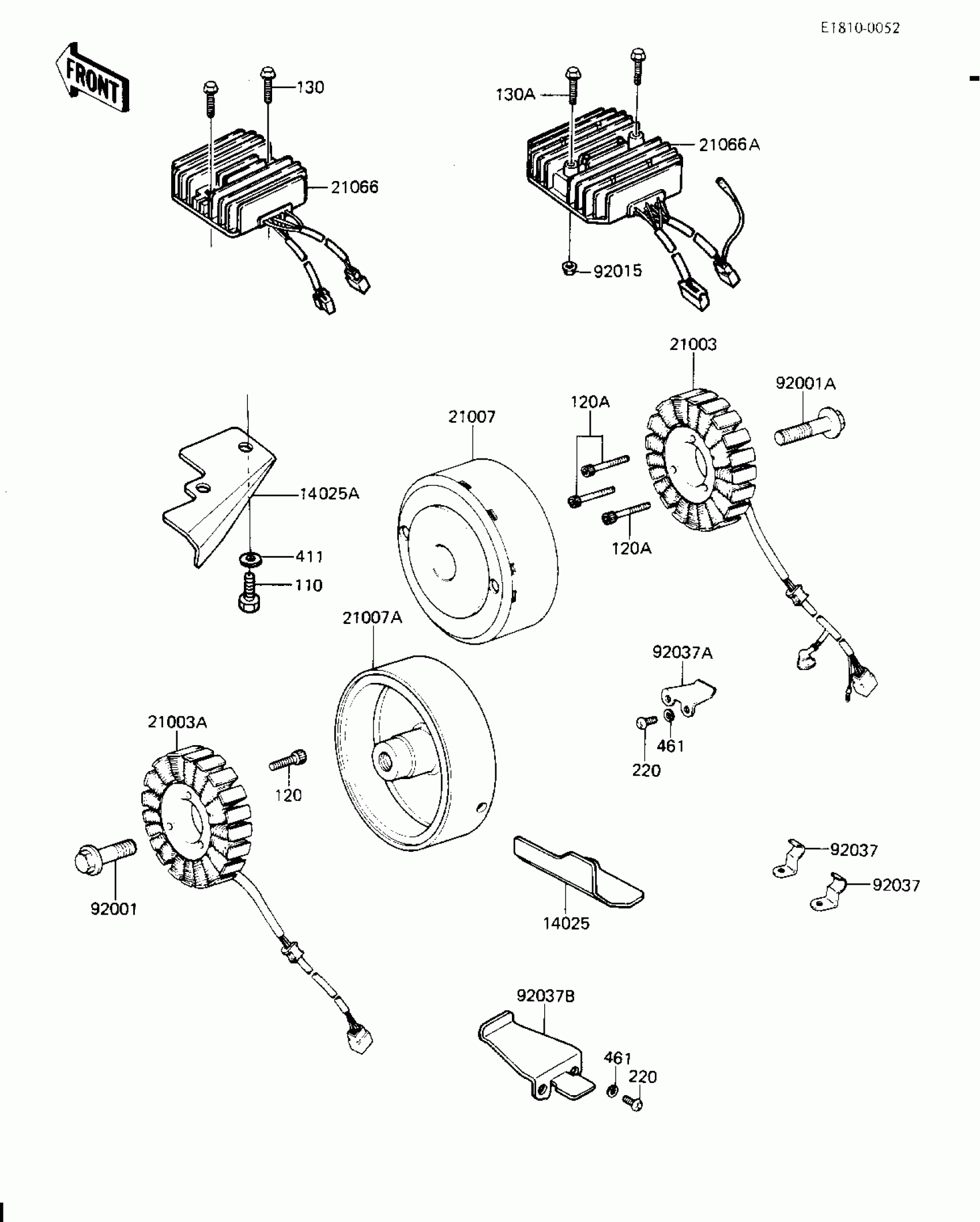

Kawasaki KZ1300-A4 GENERATOR/REGULATOR Diagram

Description

Price

14025

COVER,LEAD WIRE

14025-1273

Unavailable

14025A

COVER,GENERATOR LEAD

14025-1391

Unavailable

21003

STATOR

21003-1059

$560.23

21003A

STATOR,LH

21003-1064

Unavailable

21007

ROTOR

21007-1048

$478.95

21007A

ROTOR,LH

21007-1051

$700.76

21066

REGULATOR-VOLTAGE

21066-1024

$270.82

21066A

REGULATOR-VOLTAGE

21066-1026

$306.08

92001

BOLT,FLANGED,12X40

92001-1012

Unavailable

92001A

BOLT,FLANGED,12X40

92001-1146

$9.58

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92037

CLAMP,LEAD WIRE

92037-1345

$4.22

92037A

CLAMP,GENERATOR LEAD

92037-1287

Unavailable

92037B

CLAMP,LEAD WIRE

92037-1343

$5.47

110

BOLT,6X10

112G0610

Unavailable

120

BOLT-SOCKET,5X30

120P0530

Unavailable

120A

BOLT-SOCKET,6X35

120P0635

Unavailable

130

BOLT-FLANGED,6X25

130B0625

Unavailable

130A

BOLT-FLANGED,6X35

130B0635

Unavailable

220

SCREW PAN HEAD 5X10

220B0510

Unavailable

411

WASHER PLAIN 6MM

411B0600

Unavailable

461

WASHER SPRING 5MM

461F0500

Unavailable
