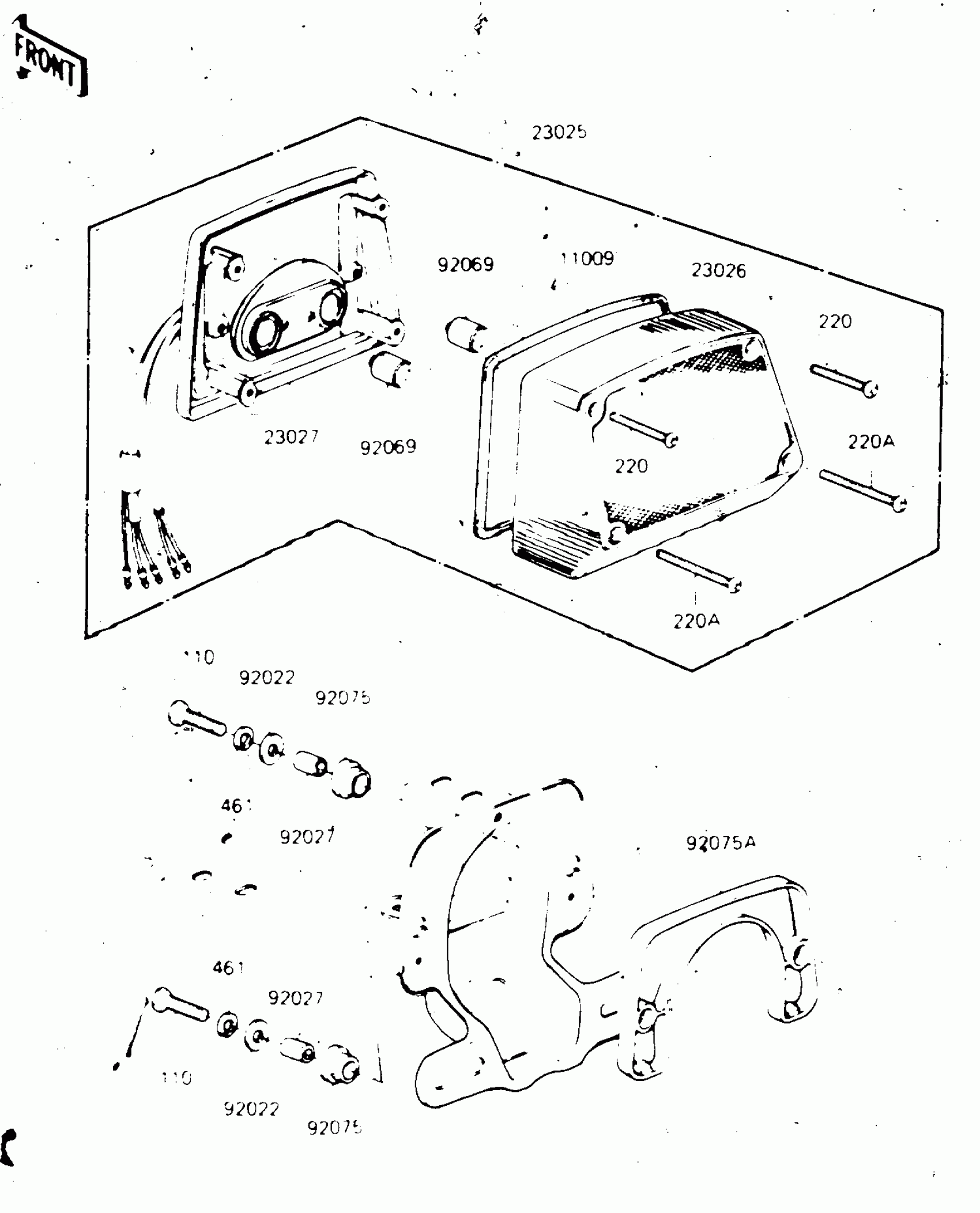

Kawasaki KZ1300-A4 TAILLIGHT Diagram

Description

Price

11009

GASKET,TAIL LAMP LENS

11009-1098

Unavailable

23025

LAMP ASSY,TAIL

23025-1007

$182.73

23026

LENS,TAIL LAMP

23026-1004

Unavailable

23027

BODY,TAIL LAMP

23027-1003

$182.40

92022

WASHER,6.5X20X1.6

92022-125

$1.08

92027

COLLAR,6.8X10X14.5

92027-156

$3.81

92069

BULB,12V 27/8W

92069-059

$6.19

92075

DAMPER RUBBER

92075-1092

Unavailable

92075A

DAMPER,TAIL LAMP

92075-1111

$26.10

110

BOLT-UPSET

112G0625

Unavailable

220

SCREW,PAN HEAD,4X45

220E0445A

Unavailable

220A

SCREW-PAN-CROS

220B0460

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable
