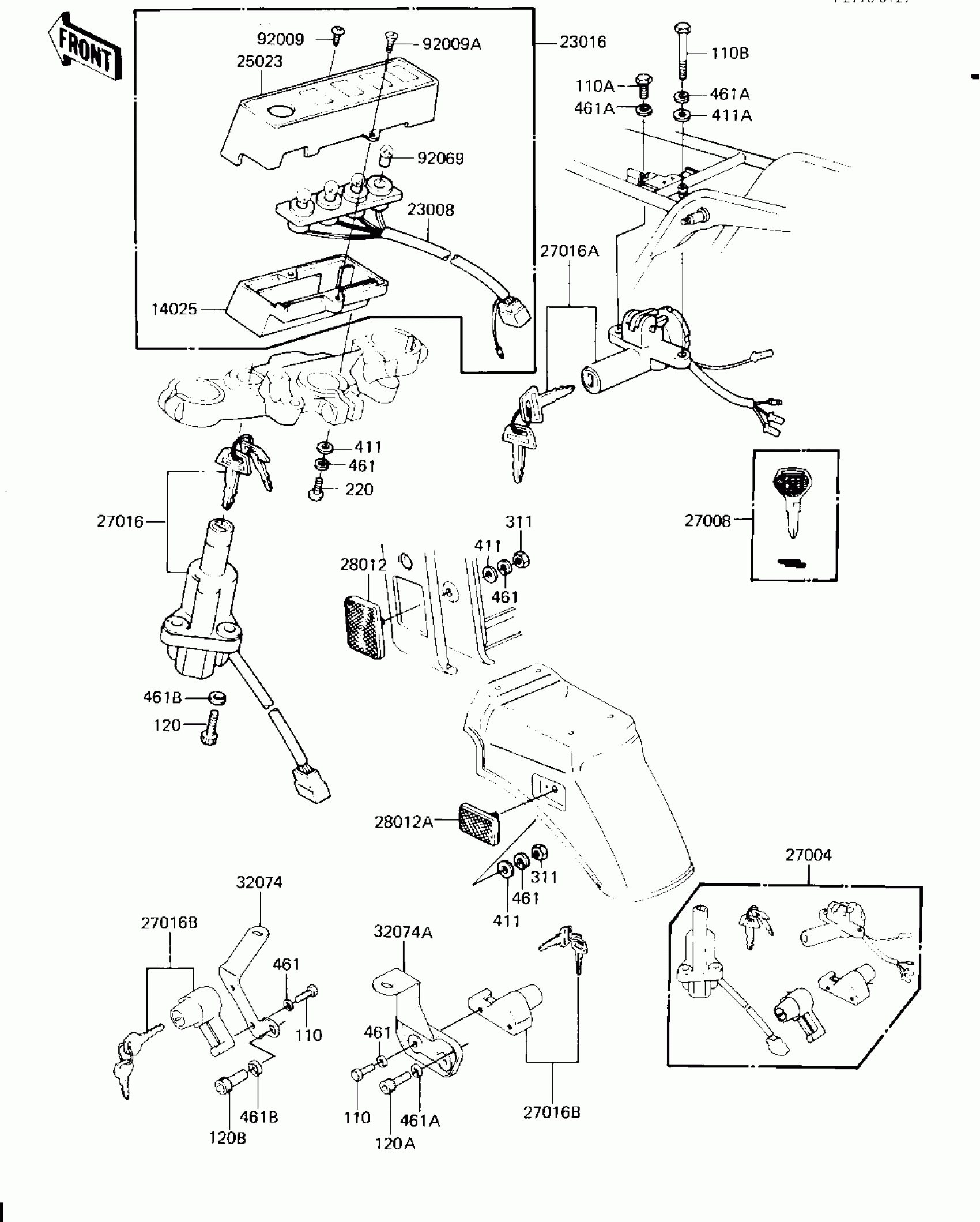

Kawasaki KZ1300-A4 IGNITION SWITCH/LOCKS/REFLECTORS Diagram

#

Description
Price

14025

COVER,PILOT LAMP,LOWE

14025-1117

Unavailable

23008

SOCKET ASSY,PILOT LAM

23008-1041

$42.03

23016

LAMP ASSY,PILOT

23016-1014

$82.90

25023

COVER,PILOT LAMP,UPPE

25023-1014

$60.73

27004

SWITCH-ASSY

27004-5371

Unavailable

27008

KEY-LOCK,BLANK

27008-1103

$16.44

27016

IGNITION&STEERING ASY

27016-5026

$192.03

27016A

LOCK ASSY,SEAT

27016-5027

$134.19

27016B

LOCK ASSY,HELMET

27016-5036

Unavailable

28012

REFLECTOR-REFLEX

28012-1003

$17.85

28012A

REFLECTOR-REFLEX,RR

28012-1054

$18.15

32074

BRACKET-LOCK,HLMT,LH

32074-1020

$6.56

32074A

BRACKET-LOCK,HLMT,RH

32074-1021

$15.14

92009

SCREW,TAPPING,3.5X10

92009-1073

Unavailable

92009A

SCREW,CNTSNK HED,4X10

92009-1074

Unavailable

92069

BULB 12V 3W

92069-018

$3.71

110

BOLT HEX HEAD 5X10

110B0510

Unavailable

110A

BOLT-UPSET,6X12

112G0612

Unavailable

110B

BOLT,HEX HEAD,6X50

110G0650

Unavailable

120

BOLT,SOCKET,8X22

120P0822

Unavailable

120A

BOLT-SOCKET,6X10

120S0610

Unavailable

120B

BOLT-SOCKET

120S0814

Unavailable

220

UNAVAILABLE IN PRICE BOOK

214B0516A

Unavailable

311

NUT-HEX

311B0500

$0.47

411

WASHER-PLAIN,5MM

411B0500

Unavailable

411A

WASHER PLAIN 6MM

411B0600

Unavailable

461

WASHER SPRING 5MM

461F0500

Unavailable

461A

WASHER SPRING 6MM

461F0600

Unavailable

461B

WASHER SPRING 8MM

461F0800

Unavailable
