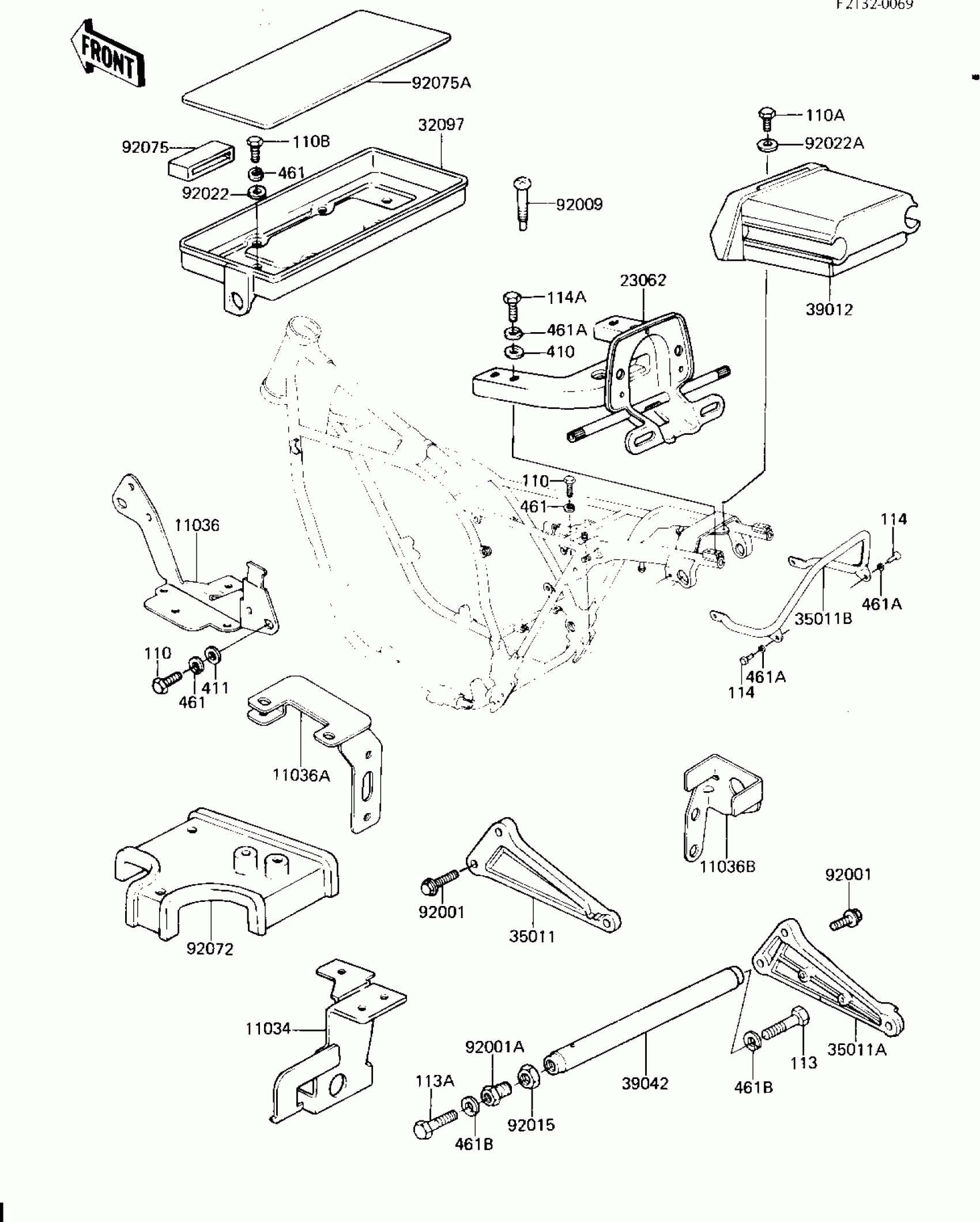

Kawasaki KZ1300-A4 BATTERY CASE/ELECTRO BRACKET Diagram

#

Description
Price

11034

BRACKET,BASE

11034-1316

Unavailable

11036

BRACKET,MAIN REGULATO

11036-1478

Unavailable

11036A

BRACKET,SUB REGULATOR

11036-1479

Unavailable

11036B

BRACKET,WARNER

11036-1480

Unavailable

23062

BRACKET,ASSY

23062-1003

$132.31

32097

CASE,BATTERY

32097-1015

$28.82

35011

STAY,MUFFLER,L.H

35011-1019

$78.61

35011A

STAY,MUFFLER,R.H

35011-1020

$75.76

35011B

STAY,REAR

35011-1070

$193.09

39012

CASE,STORAGE

39012-1001

Unavailable

39042

CROSSMEMBER

39042-1001

$56.36

92001

BOLT,FLANGED,8X28

92001-1095

$5.71

92001A

BOLT,CROSSMEMBER FITT

92001-1216

$9.19

92009

SCREW,6X38

92009-1042

$4.22

92015

NUT,CROSSMEMBER FITTI

92015-1086

$2.69

92022

WASHER,6.5X20X1.6

92022-125

$1.08

92022A

WASHER,6.5X22X1.6

92022-237

$2.99

92072

BAND,BATTERY

92072-1021

Unavailable

92075

DAMPER,BATTERY

92075-1099

$3.10

92075A

DAMPER,BATTERY

92075-1105

Unavailable

110

BOLT-UPSET,6X12

112G0612

Unavailable

110A

BOLT-UPSET 6X14

112B0614

Unavailable

110B

BOLT-UPSET,6X16

112G0616

Unavailable

113

BOLT,HEX HEAD,10X25

113G1025

Unavailable

113A

BOLT-UPSET,10X30

112G1030

Unavailable

114

BOLT-SMALL-UPSET,8X14

115B0814

Unavailable

114A

BOLT-SMALL-UPSET,8X16

115G0816

Unavailable

410

WASHER PLAIN 8MM

410B0800

Unavailable

411

WASHER PLAIN 6MM

411B0600

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable

461A

WASHER SPRING 8MM

461F0800

Unavailable

461B

WASHER SPRING 10MM

461F1000

Unavailable
