1981 Kawasaki KZ1300-A3 Valves Diagram

← All diagrams

Find the part on the Valves diagram for your 1981 Kawasaki KZ1300-A3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

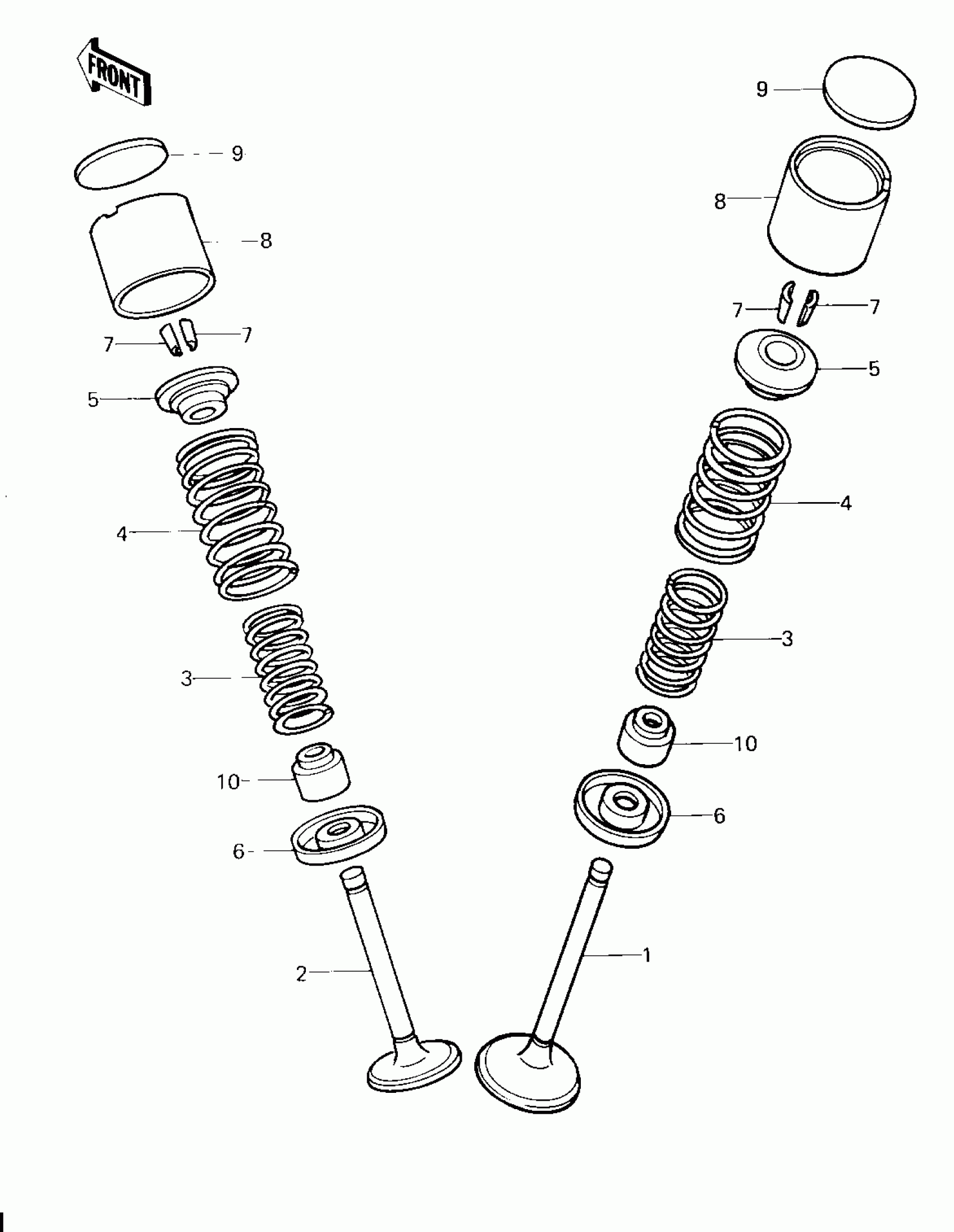

1981 Kawasaki KZ1300-A3 Valves Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

VALVE,INTAKE

12004-1004

1
Out of stock

2

VALVE,EXHAUST

12005-1004

1
Out of stock

3

SPRING-ENGINE VALVE,INNER

12007-011

1
Out of stock

4

SPRING-ENGINE VALVE,OUTER

12007-012

1
Out of stock

5

RETAINER-VALVE SPRING

12009-005

1
Out of stock

6

SEAT-SPRING,VALVE

16007-1024

1
Out of stock

6

SEAT-SPRING,VALVE

16007-1024

1
Out of stock

7

COLLET,RETAINER

12011-004

1
Out of stock

8

TAPPET

12032-005

1
Out of stock

8

TAPPET

12032-1002

1
Out of stock

9

SHIM,T=2.00

12037-001

—
Out of stock

9

SHIM,T=2.05

12037-002

—
Out of stock

9

SHIM,T=2.10

12037-003

—
Out of stock

9

SHIM,T=2.15

12037-004

—
Out of stock

9

SHIM,T=2.20

12037-005

—
Out of stock

9

SHIM,T=2.25

12037-006

—
Out of stock

9

SHIM,T=2.30

12037-007

—
Out of stock

9

SHIM,T=2.30

12037-007

—
Out of stock

9

SHIM,T=2.35

12037-008

—
Out of stock

9

SHIM,T=2.40

12037-009

—
Out of stock

9

SHIM,T=2.40

12037-009

—
Out of stock

9

SHIM,T=2.45

12037-010

—
Out of stock

9

SHIM,T=2.55

12037-012

—
Out of stock

9

SHIM,T=2.55

12037-012

—
Out of stock

9

SHIM,T=2.60

12037-013

—
Out of stock

9

SHIM,T=2.65

12037-014

—
Out of stock

9

SHIM,T=2.70

12037-015

—
Out of stock

9

SHIM,T=2.75

12037-016

—
Out of stock

9

SHIM,T=2.75

12037-016

—
Out of stock

9

SHIM,T=2.80

12037-017

—
Out of stock

9

SHIM,T=2.85

12037-018

—
Out of stock

9

SHIM,T=2.90

12037-019

—
Out of stock

9

SHIM,T=2.95

12037-020

—
Out of stock

9

SHIM,T=3.00

12037-021

—
Out of stock

9

SHIM,T=3.05

12037-022

—
Out of stock

9

SHIM,T=3.10

12037-023

—
Out of stock

9

SHIM,T=3.15

12037-024

—
Out of stock

9

SHIM,T=3.20

12037-025

—
Out of stock

10

SEAL-OIL,RV37129.5

92049-016

1
Out of stock
