1981 Kawasaki KZ1300-A3 OIL Pump Diagram

← All diagrams

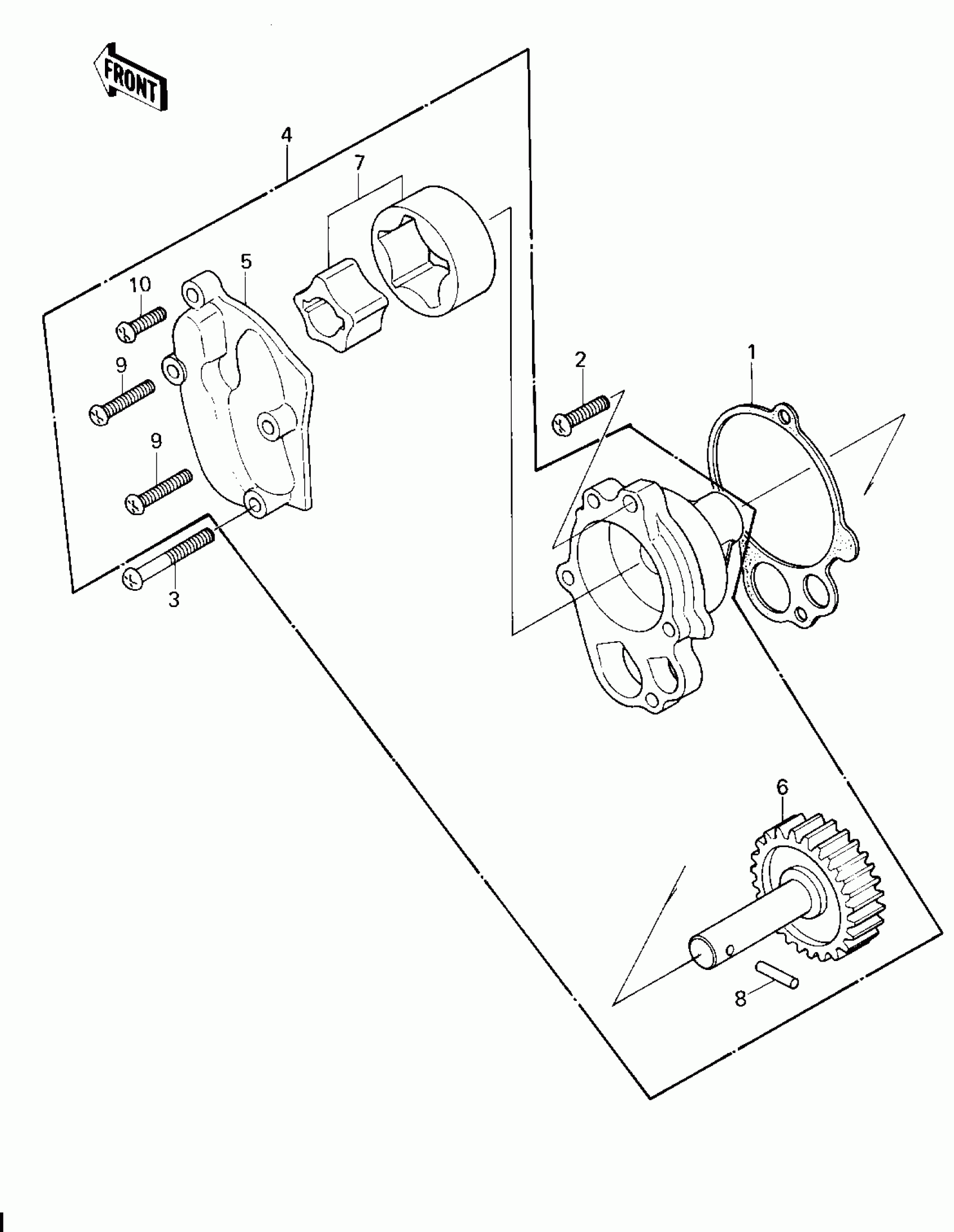

Find the part on the OIL Pump diagram for your 1981 Kawasaki KZ1300-A3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Kawasaki KZ1300-A3 OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET,OIL PUMP

11009-1088

1
Out of stock

2

SCREW PAN HEAD 6X25

220B0625

1
Out of stock

3

SCREW PAN HEAD 6X40

220B0640

1
Out of stock

4

PUMP-OIL

49042-1001

1
Out of stock

5

COVER-PUMP

16142-1005

1
Out of stock

6

GEAR-COMP,OIL PUMP

13216-1018

1
Out of stock

7

ROTOR-PUMP,SCAVENGE,T=16

16154-1007

1
Out of stock

8

PIN,DOWEL,5X17.8

92043-1061

1
Out of stock

9

SCREW PAN HEAD 6X28

220B0628

1
Out of stock

10

SCREW PAN HEAD 6X18

220B0618

1
Out of stock
