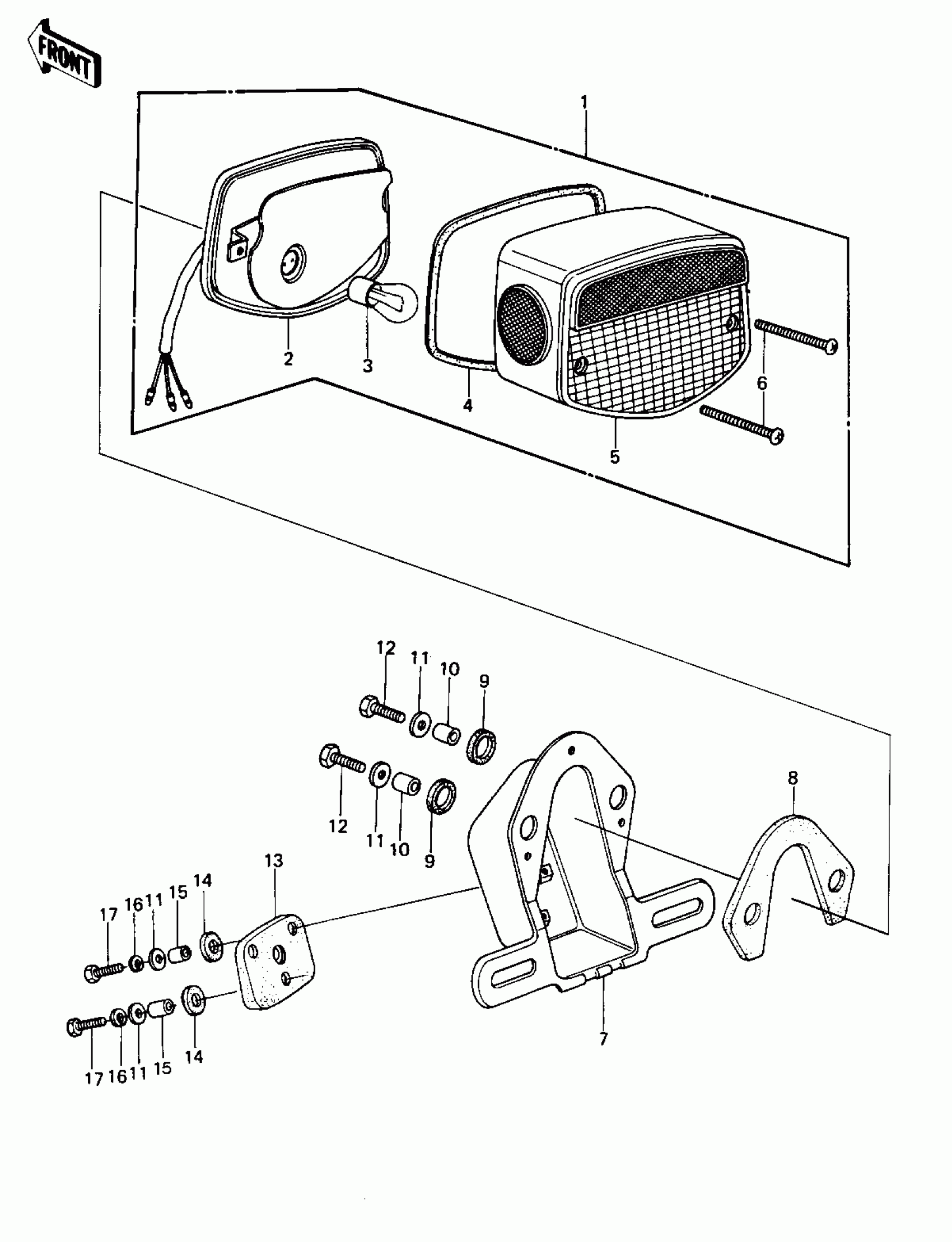

Kawasaki KZ1000 LTD TAILLIGHT ('77-'78 B1/B2) Diagram

#

Description
Price

1

LAMP-TAIL,"220-40781"MARK

23025-064

Unavailable

2

BODY-COMP-TAIL LAMP

23027-041

$130.76

3

BULB,12V 27/8W

92069-059

$6.19

4

GASKET,TAIL LAMP LENS

23028-021

$11.83

5

LENS,TAIL LAMP

23026-034

$78.61

6

SCREW-PAN-CROS

220R0460

Unavailable

7

BKT,LICENSE PLATE

23036-046

Unavailable

8

DAMPER

23066-023

$16.51

9

DAMPER

23066-020

$14.19

10

COLLAR,6.8X10X8.5

92027-129

$3.81

11

WASHER,6.5X20X1.6

92022-125

$1.08

12

BOLT 6X22

112B0622

Unavailable

13

DAMPER,TAIL LAMP

35039-004

$17.22

14

DAMPER,FENDER

92075-121

$3.49

15

COLLAR,6.8X10X14.5

92027-156

$3.81

16

WASHER SPRING 6MM

461F0600

Unavailable

17

BOLT-UPSET

112G0625

Unavailable
