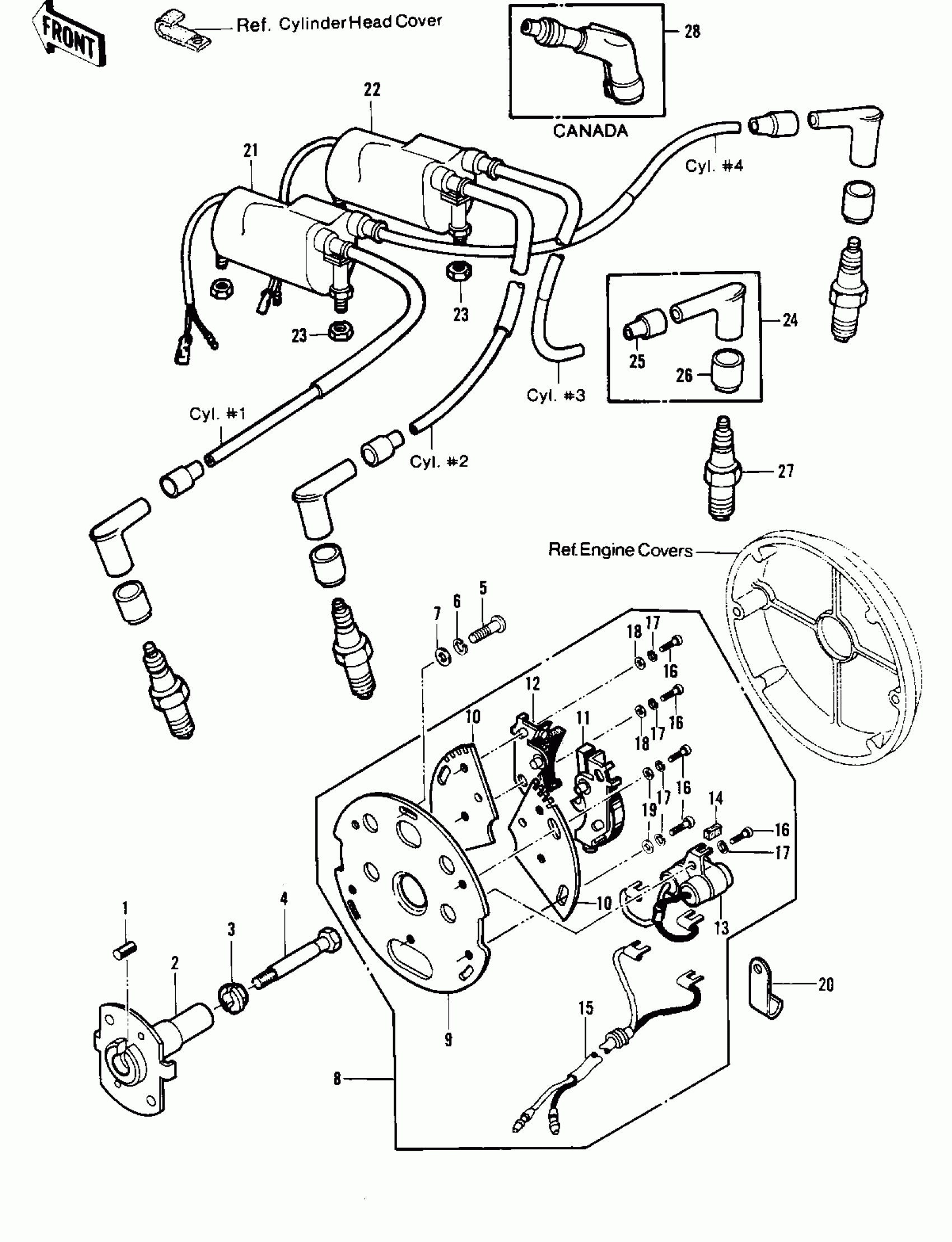

Kawasaki KZ1000 LTD IGNITION ('77-'78 B1/B2) Diagram

#

Description
Price

1

PIN-SPRING,4X8

555A0408

$2.99

2

ADVANCER,SPARK

21148-010

$309.20

2

ADVANCER ASSY,SPARK

21148-1003

$305.95

3

WASHER,BREAKER GOVERNOR

92022-244

$13.39

4

BOLT,SPARK ADVANCER

92001-113

Unavailable

5

SCREW-PAN-CROS

220B0512

$0.47

6

WASHER SPRING 5MM

461F0500

Unavailable

7

WASHER-PLAIN,5MM

411B0500

Unavailable

8

BREAKER,CONTACT

21135-011

$261.06

9

PLATE,CONTACT BREAKE

21021-004

$22.71

10

PLATE,CONTACT BREAKE

21156-010

Unavailable

11

BREAKER,CONTACT

21008-027

$73.02

12

BREAKER,CONTACT

21008-028

$69.37

13

CONDENSER

21013-035

Unavailable

14

BRUSH,OIL

21019-005

Unavailable

15

WIRING HARNESS,BRAKE

21029-037

Unavailable

16

SCREW PAN HEAD 4X8

220B0408

Unavailable

17

WASHER SPRING 4MM

461F0400

Unavailable

18

WASHER PLAIN 4MM

410B0400

Unavailable

19

WASHER PLAIN 4MM

410B0400

Unavailable

19

WASHER PLAIN 4MM

410B0400

Unavailable

20

UNAVAILABLE IN PRICE BOOK

21120-008

Unavailable

21

IGNITION COIL

21121-1003

Unavailable

22

COIL,IGNITION,#2&3

21121-1004

Unavailable

23

NUT,LOCK 6MM

92017-014

$5.74

24

CAP SPARK PLUG

21160-1014

Unavailable

25

GROMMET,HIGH TENSION

21132-005

$3.25

26

GROMMET,PLUG CAP

21131-004

$10.81

27

SPARK PLUG B8ES

B8ES

$2.80

27

SPARK PLUG B8ES

B8ES

Unavailable

27

SPARK PLUG W24ES-U

W24ESU

Unavailable

28

CAP-ASSY-PLUG

21160-005

$52.69
